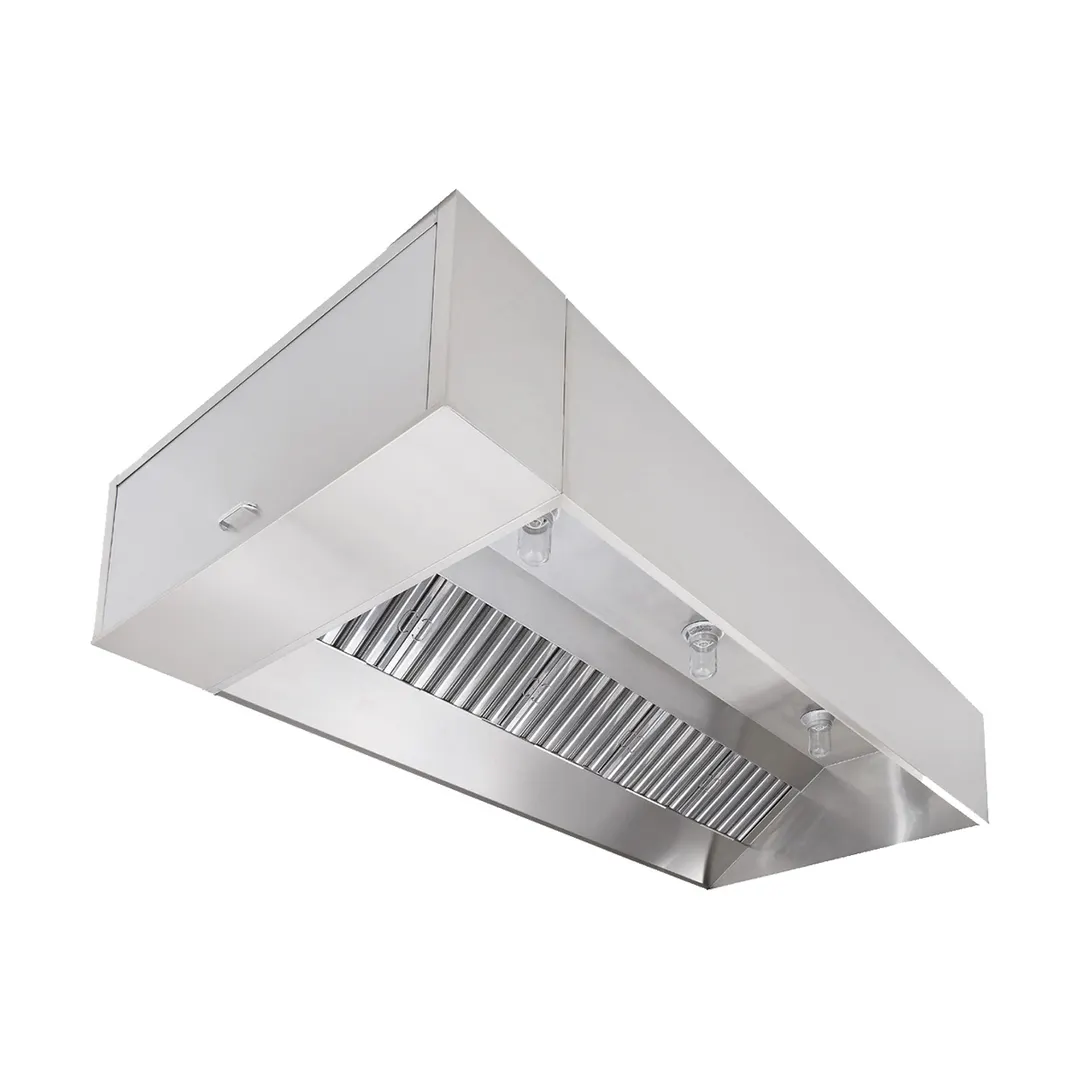

Captive Aire 12' L 430 Stainless Steel Make-Up Air Hood with 2 Fans & Optional Fire System

Captive Aire 12' L 430 Stainless Steel Make-Up Air Hood with 2 Fans & Optional Fire System
Captive Aire 12' L 430 Stainless Steel Make-Up Air Hood with 2 Fans & Optional Fire System
Captive Aire 12' L 430 Stainless Steel Make-Up Air Hood with 2 Fans & Optional Fire System
The image above may not exactly represent the product
Calculate Estimated Shipping Cost
Financing Available
?

Small payments, big returns—view financing details now!

infoInformation

Usually ships in 5-10 business days

CaptiveAire Specs
ManufacturerCaptiveAire
Weight1190 lbs
Length12'
Type 1/2Type 1
Hood StylePSP makeup air hoods
Fire Suppressionoptional fire suppression
Mount StyleWall Type
Description
Reviews

CaptiveAire Self-Cleaning Hood

Features and Benefits

  • Fully automatic operation
  • Hood fabricated from 100% Stainless Steel
  • Drip-less nozzles with internal strainer
  • Easily serviceable
  • Adjustable wash duration (factory set at 3 minutes)
  • 3/4", 1", 1.5" NPT Pipe Water Inlet connection
  • 1 1/2" NPT Pipe Water Drain connection
  • Standard riser spray nozzle for duct cleaning
  • Water usage is 0.70 GPM per foot of hood length
  • Upgrade to the CORE Fire System available
  • High Efficiency Grease Filtration

From The Manufacturer

Hood #1 - H1
5424ND-2-PSP-F - 12ft 0" Long Exhaust-Only Wall Canopy Hood with Front Perforated Supply Plenum with Built-in 3" Back Standoff
Fire System #1 - H1 FS *FINAL HOOK UP, TESTS and PERMITS NOT INCLUDED*
ANSUL-3.0/1.5 Ansul 4.5 gallon Wall Mounted Fire System (includes pre-piped hood(s) with detection). Includes piping for hood: 1.
Fan #1 DU50HFA - Exhaust Fan (EF1)
NCA16FA Belt Drive Centrifugal Upblast Exhaust Fan with 18.75" wheel
Exhaust Fan handles 2760 CFM @ -1.000" wc ESP, Fan runs at 1029 RPM.
Fan #2 A1-G10 - Supply Fan (SF1)
A1-G10 Direct Drive Direct Drive Untempered Supply Unit with 10" Blower in Size #1 Housing with speed control, disconnect switch.
