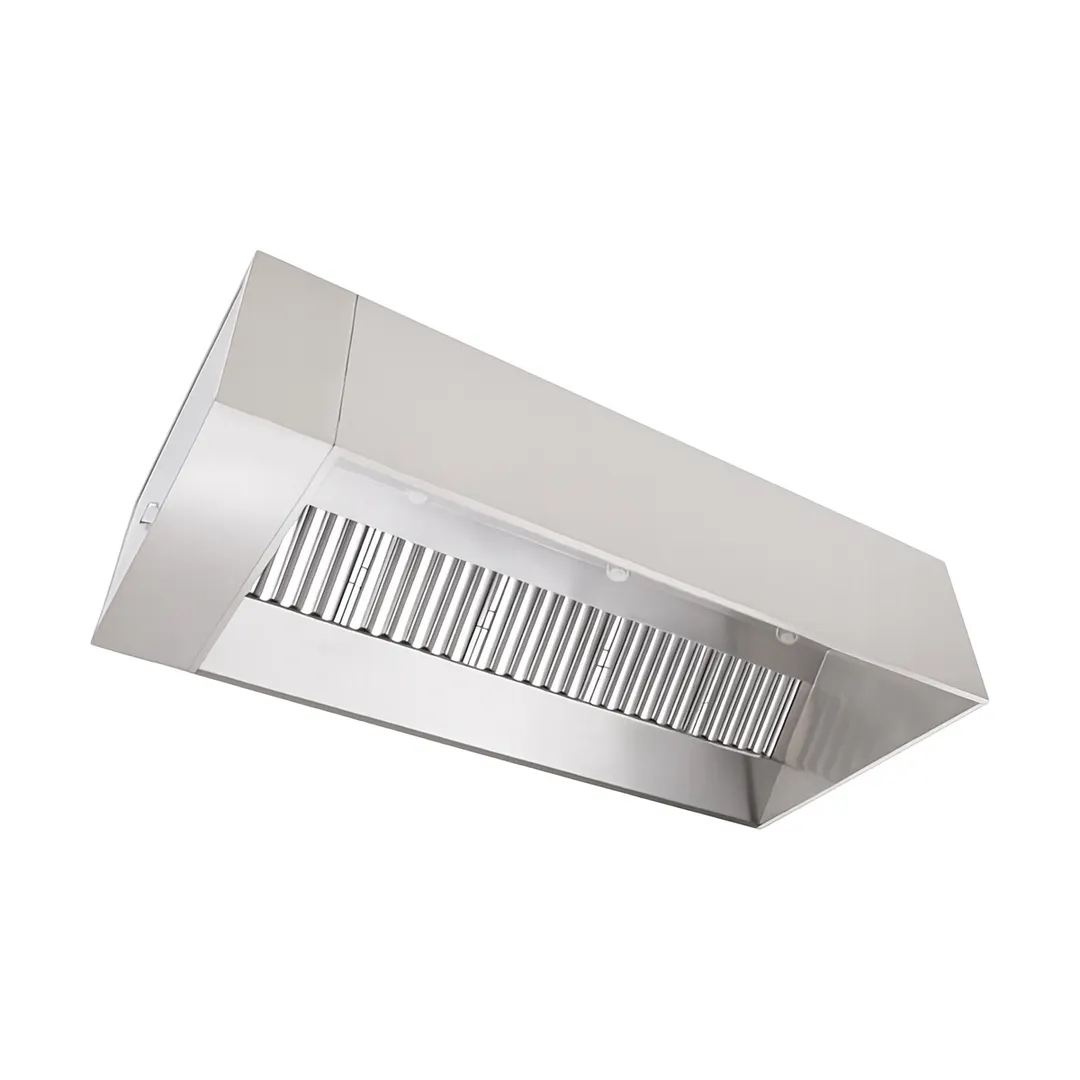

High‑Performance Hood for Heavy‑Duty Kitchen Ventilation
Delivers reliable, high‑volume exhaust and supply to keep busy kitchens clean and compliant.
Key Features

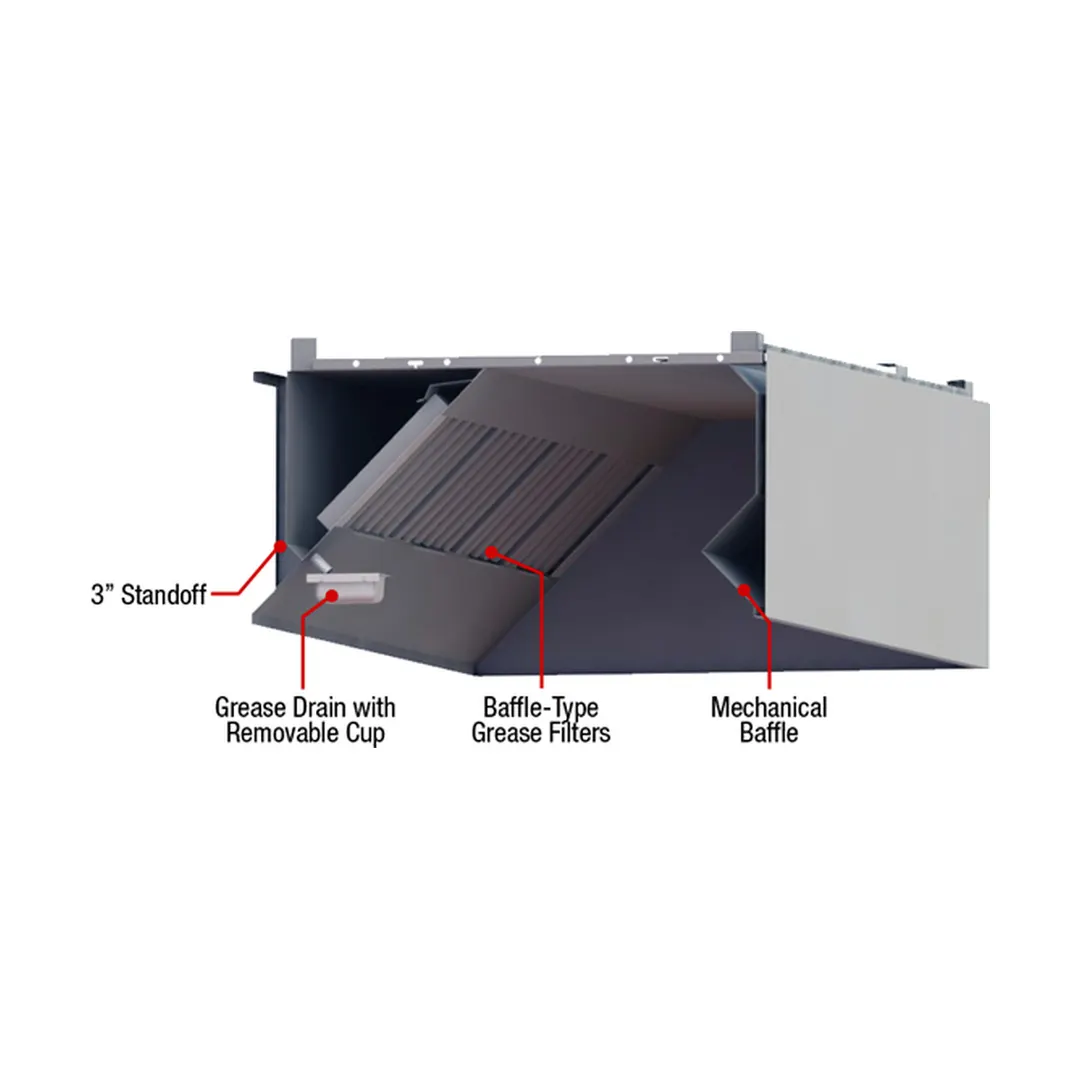

- 8‑ft (96") wall canopy hood with 18" wide perforated supply plenum and 3" back standoff, all 430 SS where exposed.
- Five Captrate Solo stainless‑steel filters (20" tall × 16" wide) rated 85% efficiency at 9 µm and 76% at 5 µm.
- DU85HFA high‑speed direct‑drive centrifugal exhaust fan moves 2,200 CFM at –1.280" wc, 1 HP TEAO‑ECM motor, 1,562 RPM.
- A1‑G10D supply fan provides 1,760 CFM at 0.500" wc, 1 HP ODP‑ECM motor, 868 RPM, with sloped filtered intake and metal‑mesh filters.
- Integrated utility cabinet (12" W × 60" L × 24" H) houses electrical package, 1/2‑pint grease cups, and built‑in lighting fixtures.
From The Manufacturer
Hood #1 - Job #3493161
6024ND-2-PSP-F - 8ft 0" Long Exhaust-Only Wall Canopy Hood with 18" Wide Front Perforated Supply Plenum with Built-in 3" Back Standoff x1
- 430 SS Where Exposed x1
- Utility Cabinet on the Right Side 12.00" Width x 60" Length x 24.00" Height x1
- FILTER - 20" tall x 16" ( 19.625" by 15.625") wide Stainless Steel Captrate Solo filter with hook, ETL Listed. Particulate capture efficiency: 85% efficient at 9 microns, 76% efficient at 5 microns. Used on hoods shipped AFTER 7/27/17. x5
- L55 Series E26 Canopy Light Fixture - High Temp Assembly, Includes Clear Thermal and Shock Resistant Globe (L55 Fixture), Bulbs By Others x3
- EXHAUST RISER - Factory installed 16" Diameter X 4" Height x1
- SUPPLY RISER - 12"x 28" Supply Riser with Volume Dampers x2
- 1/2 Pint Grease Cup New Style, Flanged Slotted x2
- BACKSPLASH 80.00" High X 108.00" Long 430 SS Vertical (Includes End Caps & Divider Bars) x1
- Electrical Package Installation in Utility Cabinet by Plant. x1
Fan #1 DU85HFA - Exhaust Fan - Job #3493161
DU85HFA High Speed Direct Drive Centrifugal Upblast Exhaust Fan with speed control (speed control included for single phase only), disconnect switch and 15-3/4" wheel.
Exhaust Fan handles 2200 CFM @ -1.280" wc ESP, Fan runs at 1562 RPM.
Exhaust Motor: 1.000 HP, 1 Phs, 115 V, 60Hz, 11.6 FLA, TEAO-ECM (Totally Enclosed Air Over Electronically Commutated Motor) x1
- Grease Cup for kitchen-duty centrifugal exhaust fans,
Box Dimensions 17-1/8 L X 5-1/16 W X 3-3/4 H (20 GA.) (Includes Down Spout) x1
- ECM Wiring Package and Manual or 0-10VDC Control for Exhaust EC motors. RTC Controller (No harness when ordered as a part). x1
- Curb CRB23X26E On Fan #1 Flat Curb x1
- Hinged Base for Curb. Standard Hinge attached to curb. Used on Fans with wheels 20 inches or smaller. 12 GA Galvanized. x1
- Vented Base for Curb x1
Fan #2 A1-G10D - Supply Fan - Job #3493161
A1-G10 Direct Drive Untempered Supply Unit with 10" Blower in Size #1 Housing with speed control, disconnect switch.
Supply Fan handles 1760 CFM @ 0.500" wc ESP, Fan runs at 868 RPM.
Supply Motor: 1.000 HP, 1 Phase, 115 V, 60Hz, 10.2 FLA, ODP-ECM (Open Drip Proof Electronically Commutated Motor)
Down Discharge - Air Flow Right -> Left x1
- Sloped Filtered Intake for Size #1 Modular Untempered Supply Unit.
21.813" Wide x 44.375" Long x 23.375" High.
Includes 2" MV EZ Kleen Metal Mesh Filters. x1
- ECM Wiring Package and Manual or 0-10VDC Control for Supply EC motors. RTC Controller. **DO NOT ORDER UNDER WARRANTY, SEE PART NUMBER "ECM-VCU-RTC"**. x1
- Curb CRB21X20 On Fan #2 Flat Curb x1
Images are for reference. Color, configuration, dimensions and what's included vary by model.
