Vulcan VEG SERIES FREE STANDING ENTRY LEVEL GAS FRYER
SPECIFICATIONS
35-40 lb. capacity free standing model gas fryer, Vulcan Model No. 1VEG35M. 70,000 BTU/hr. input. ENERGY STAR® certified. Stainless steel front top and reinforced door. Stainless steel fry tank with three exchanger tubes for maximum heat transfer. 11⁄4" full port ball type drain valve. Includes twin fry baskets with plastic coated handles and drain extension. Behind the door snap action millivolt thermostat control adjust from 200° to 400°F. Tank brush and clean-out rod included.
Overall Dimensions:
15 1⁄2"w x 29 3⁄4"d x 46 5⁄8"h working height 34 5⁄8"h CSA design certified. NSF listed.

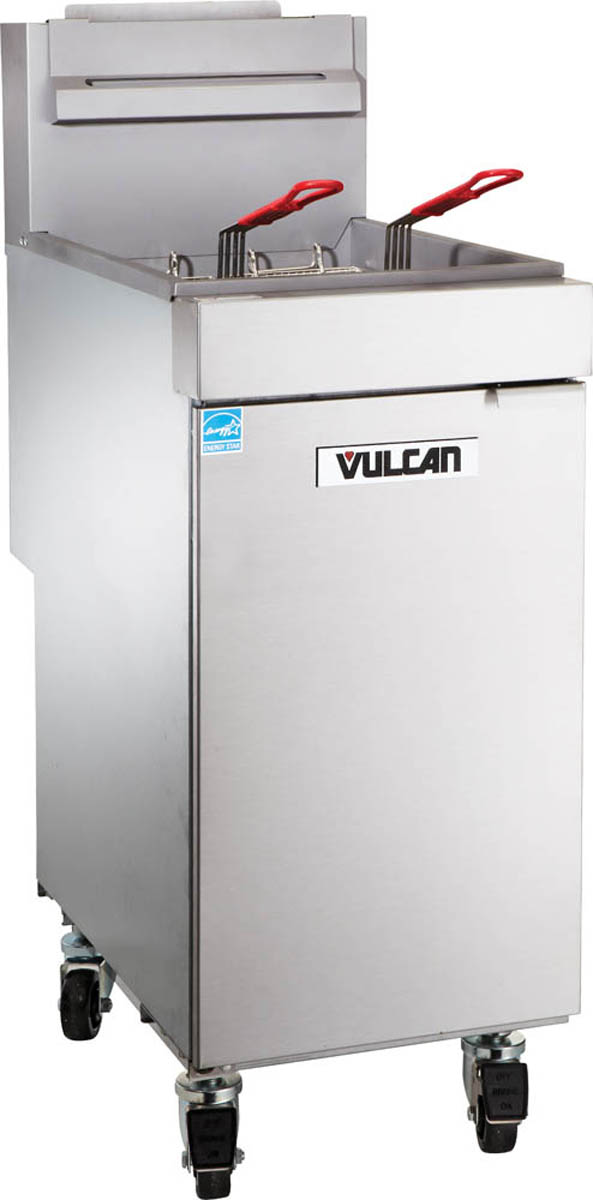

1VEG35M:
Behind the door millivolt thermostat control adjusts from 200° to 400°F.
/1VEG35M.jpg)
STANDARD FEATURES
- 70,000 BTU/hr. input.
- Stainless steel fry tank, 35-40 lb. capacity.
- Large cold zone area.
- 1 1⁄4" full port ball type drain valve.
- Stainless steel reinforced door with Earth magnet to secure closed door.
- G90 high grade galvanized non corrosive finish sides and back
- Set of four nickel plated adjustable legs.
- Twin fry baskets with plastic coated handles
- Behind the door snap action millivolt thermostat control adjusts from 200° to 400°F with standing pilot requires no electric hook-up.
- Hi-limit shut-off protector shuts off gas combination valve and standing pilot.
- Built in flue deflector.
- Nickel plated tube rack.
- Easily removable stainless steel basket hanger for cleaning.
- One year limited parts and labor warranty
- Stainless steel fry tank has a five (5) year limited tank warranty. If during the first year only, the tank is found to have a leak and is verified by an authorized service agency, the entire VEG Series fryer will be replaced.
From The Manufacturer
Images are for reference. Color, configuration, dimensions and what's included vary by model. See the spec sheet to confirm the exact details.
