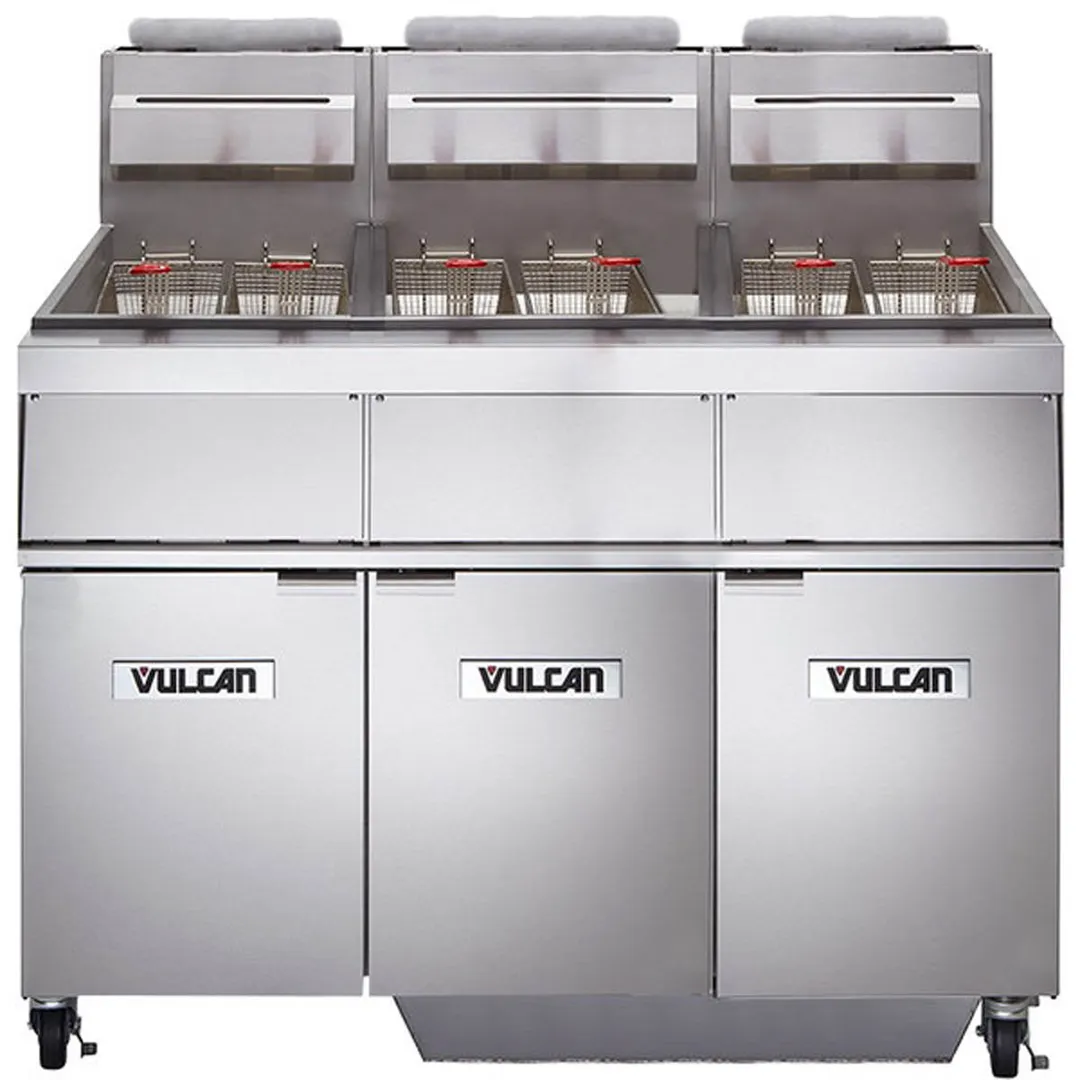

Vulcan 3GR45MF Multiple Battery Gas Fryer
Vulcan 3GR45MF Standard Features
- (3) battery
- 45-50 lb. capacity per vat
- Millivolt thermostat controls
- KleenScreen Plus® filtration system
- Twin baskets
- Stainless steel cabinet & fry tank
- Adjustable casters (2 swivel locking & 2 non-locking)
Vulcan 3GR45MF FILTRATION SYSTEM Standard Features
- Filter system accommodates maximum of four fryer cabinets (GR45F), maximum of three (GR65F or GR85F).
- Boil Out ByPass™ easily removes boil out solution from fry tank without contact of drain manifold, filter pan or motor/ pump.
- 6" Casters adjustable – 2 locking, 2 non-locking.
- 18 gauge stainless steel filter pan. 70 lbs. frying compound capacity on GR45F, 110 lbs. capacity on GR65 & GR85F.
- Stainless steel filter mesh screen filters from 2 sides.
- 1⁄3 H.P. motor and pump circulates frying compound at a rate of 8.0 gallons per minute.
- Tank brush and clean-out rod.
- 120 volt, 60 Hz, 1 phase (NEMA 5-15P).
- One year limited parts and labor warranty.
- 10 year fry tank limited warranty.
- High Temperature Discard Hose.
Vulcan 3GR45MF Specifications
- 360,000 BTU
- Weight: 695 lbs
- Width: 46.5"
- Height: 46.25"
- Depth: 30.13"
- Exterior Finish: stainless steel front & sides
- Fat Capacity (approximate): 45 lbs each
- Controls: millivolt controls
- Filter: built-in filter
- Fry pot: stainless steel
- With or without basket lifts: without basket(s)
- Fryer Quantity: (3) tanks
From The Manufacturer
Fryer, gas, 46-1/2" W, (3) battery, 45-50 lbs. capacity per vat, millivolt thermostat controls, KleenScreen Plus® filtration system, twin baskets, stainless steel cabinet & fry tank, adjustable casters (2 swivel locking & 2 non-locking), 360,000 BTU, CSA Star, CSA Flame, NSF
Images are for reference. Color, configuration, dimensions and what's included vary by model. See the spec sheet to confirm the exact details.
