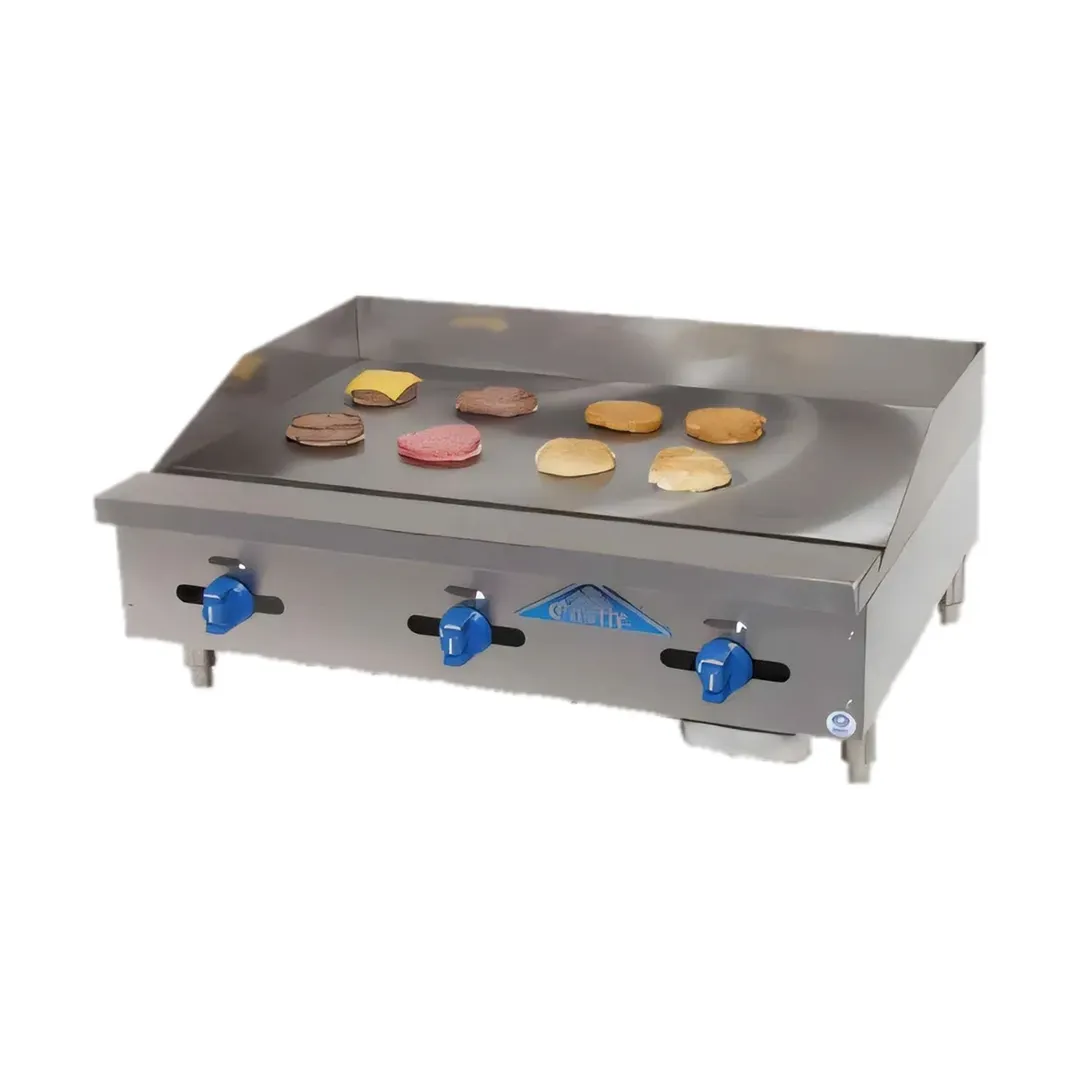

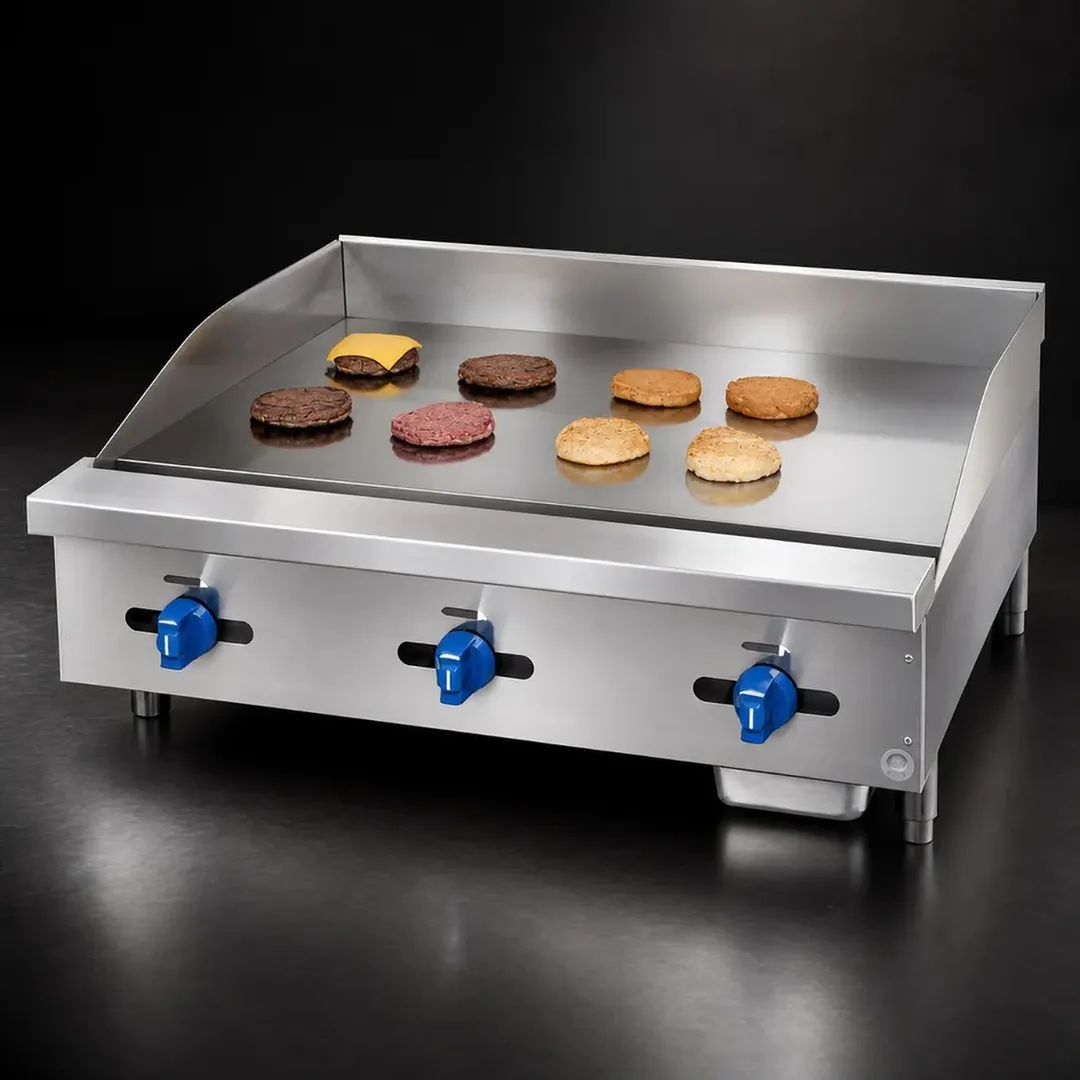

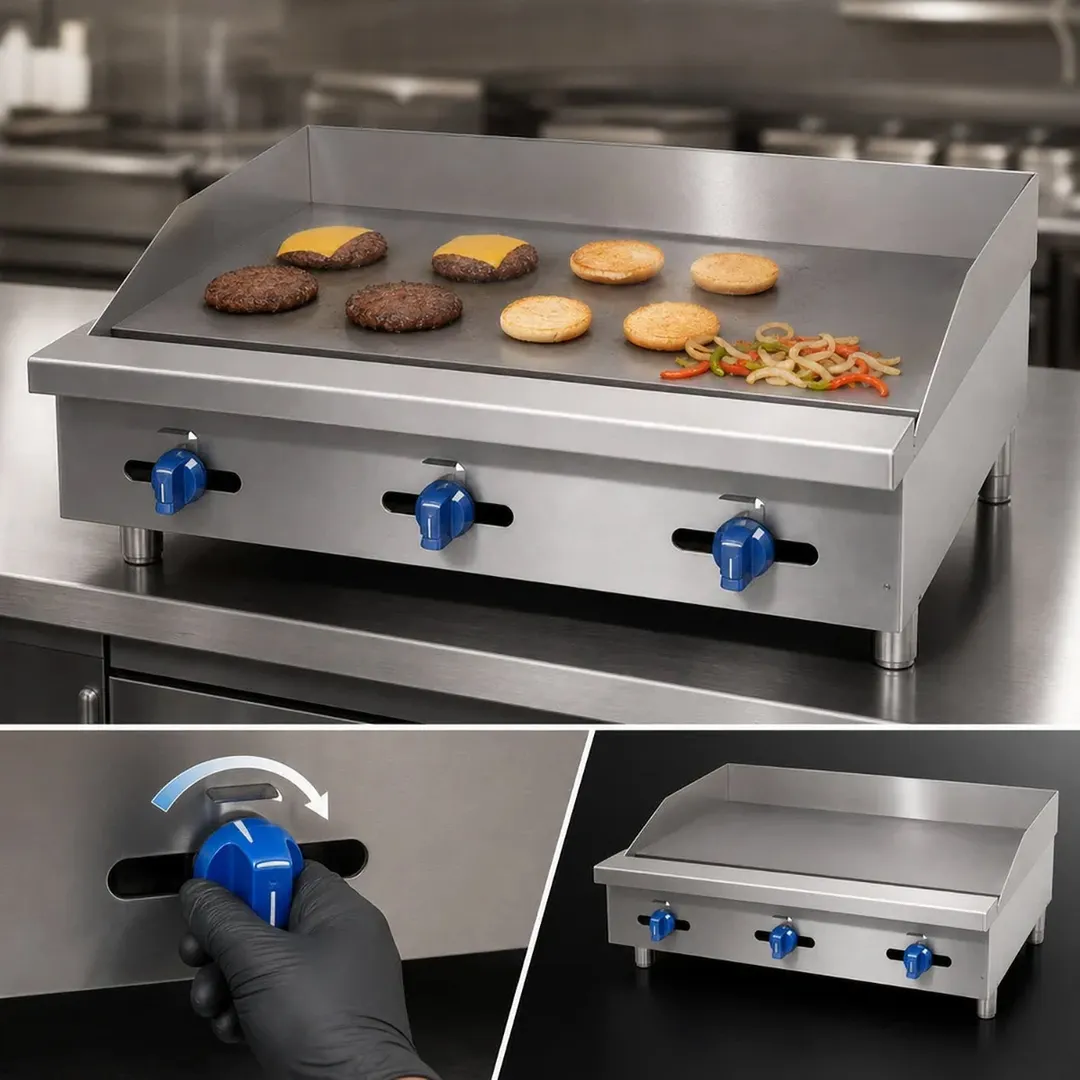

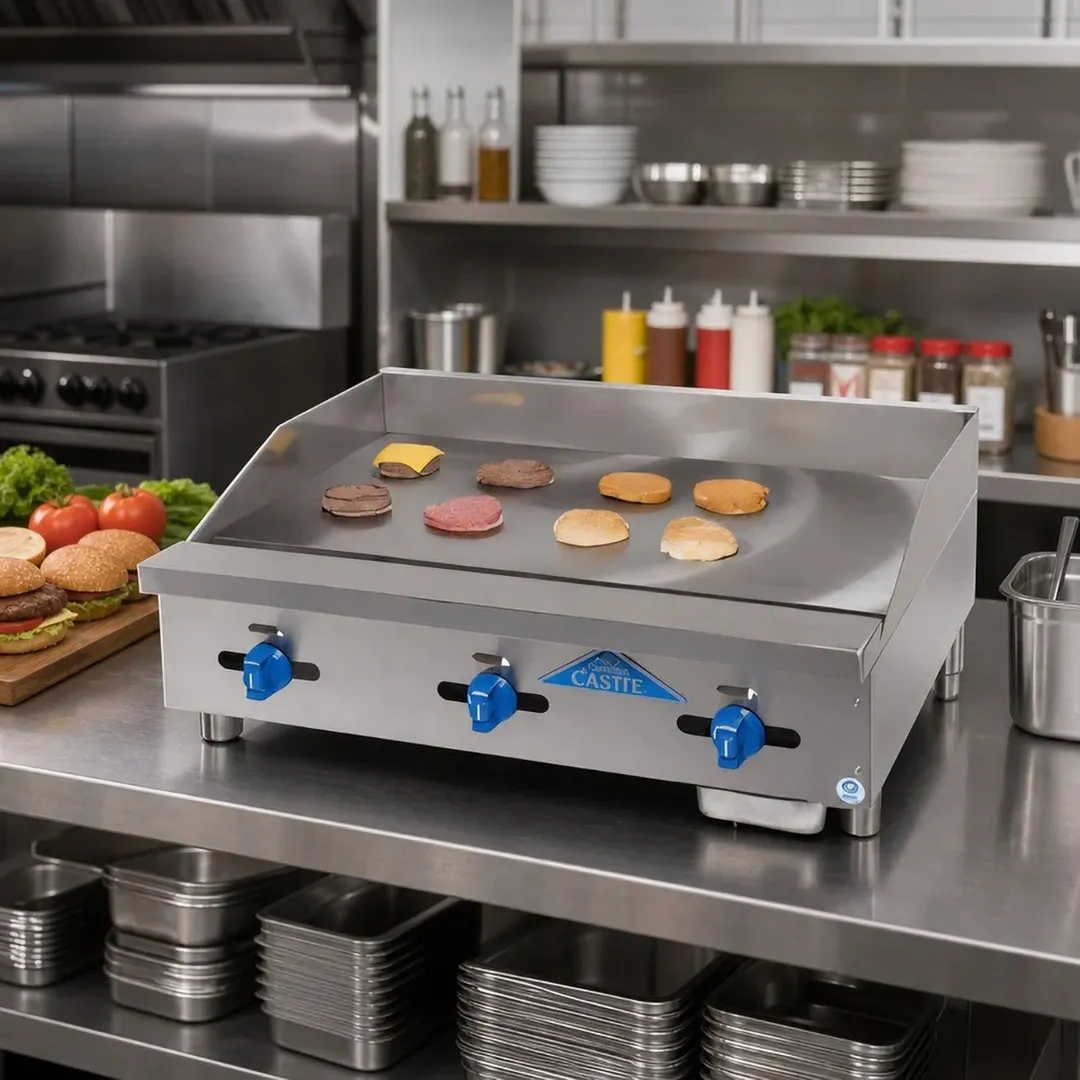

The Comstock-Castle 3248MG Castle Series Griddle
Comstock-Castle 3248MG Standart Features
Construction
Easy cleaning, corrosion resistant stainless steel finish, welded with angle iron and aluminized inner framing. Sturdy 5˝ heavy duty stainless pipe legs with adjustable feet. 4˝ wide stainless steel bull nose landing across the front is a functional work area for service plates and work utensils as well as control protection. Double wall construction with heavy insulation for cooler operation. Installation clearances for non-combustible surfaces are 0˝ on the sides and 0˝ in the rear, combustible surfaces are 4˝ on the sides and 5˝ in the rear.
Controls
Equipped with brass gas valves and automatic standing pilots. Pressure regulators are set at the factory for the gas specified. Optimal pressures are 4˝ WC for natural gas and 10˝ WC for propane. Manifold size is ¾˝ NPT. All controls are tested and confirmed in good working order. Calibration and adjustments are the responsibility of the installer.
Burners & Match-Up
12˝ incremental griddles feature 25,000 BTU cast iron “H” pattern burners, one for each 12˝ increment. 18˝ & 30˝ models feature 2 and 4 straight burners respectively, each rated at 18,000 BTU. 32 Series griddles are designed to match up with 32 Series char-broilers and hot plates
Griddle Plate
Highly polished to minimize food sticking. 1˝ thick plate is standard. 4˝ high splash guard is standard. Higher sides are also available. 24˝ deep cooking surface with front, cold zone grease trough. Grease drain slot is 3.5˝ x 1˝ and feeds into a seamless, deep, removable grease drawer
Accessories & Options
Thermostats, 1˝ thick plates, chrome plating, grooved surfaces, safety pilot controls, gas hoses, grill scrapers, spatulas, cleaning supplies, carrying handles, knob protectors and matching equipment stands.
Comstock-Castle 3248MG Specification
Castle Series Griddle, countertop, gas, 48" wide x 32" deep frame, 48" wide x 24" deep x 1" thick polished steel griddle plate, (4) manual controls, 3" splash guard on back & ends, 3-1/2" wide front grease trough, large removable grease drawer, stainless steel exterior, 4" adjustable feet, 120,000 BTU, NSF
