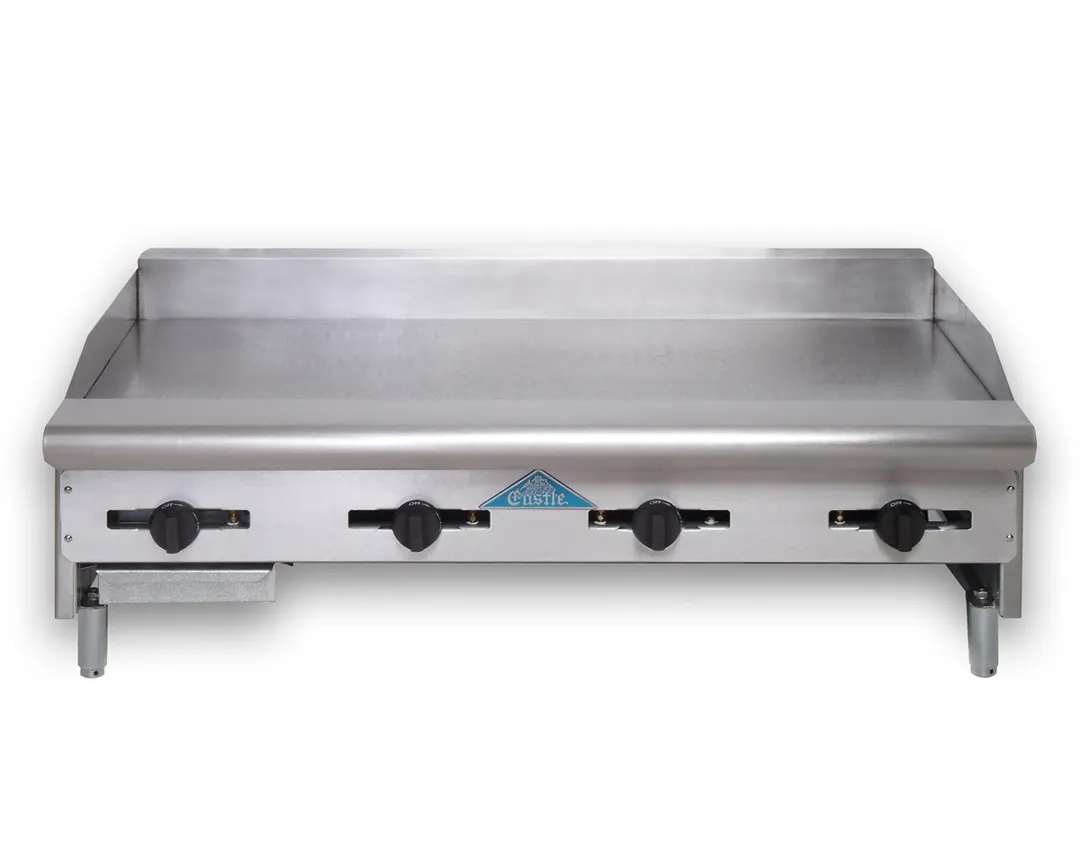

The Comstock-Castle FHP48-48 FHP Series Griddles
Comstock-Castle FHP48-48 Standart Features
Construction
Easy cleaning, corrosion resistant stainless steel finish, welded with angle iron and aluminized inner framing. Sturdy 5˝ heavy duty stainless pipe legs with adjustable feet. Stainless steel bullnose-rail is safely flush with the cook tops and functional to straddle pots, skillets and plates and also serves as control protection. Double wall construction with heavy insulation for cooler operation. Installation clearances for non-combustible surfaces are 0˝ on the sides and 0˝ in the rear, combustible surfaces are 4˝ on the sides and 5˝ in the rear.
Burners
12˝ incremental griddles feature 20,000 BTU cast iron “H” pattern burners, one for each 12˝ increment. 18˝ & 30˝ models feature 2 and 4 straight burners respectively, each rated at 18,000 BTU.
Controls
Equipped with brass gas valves and automatic standing pilots. Pressure regulators are set at the factory for the gas specified. Optimal pressures are 4˝ WC for natural gas and 10˝ WC for propane. Manifold size is ¾˝ NPT. All controls are tested and confirmed in good working order. Calibration and adjustments are the responsibility of the installer.
Griddle Plate
Highly polished to minimize food sticking. ¾˝ thick plate is standard, 1˝ thick is available. 4˝ high splash guard is standard. Higher sides are also available. 21¼˝ deep cooking surface with front, cold zone grease trough. Grease drain slot is 3.5˝ x 1˝ and feeds into a seamless, deep, removable grease drawer
Match-Up
FHP Series griddles are designed to match up with FHP char-broilers and hot plates.
Accessories
Thermostats, 1˝ thick plates, chrome plating, grooved surfaces, safety pilot controls, gas hoses, grill scrapers, spatulas, cleaning supplies, carrying handles, knob protectors and matching equipment stands.
Comstock-Castle FHP48-48 Specification
Griddle, countertop, gas, 48" x 28" deep frame, (1) 48" x 21" x 3/4" thick griddle plate, 4" splash guard on back & ends, 3-1/2" wide front grease trough, large removable grease drawer, stainless steel exterior, 4" stainless steel legs, (4) manual controls, 80,000 BTU, NSF, ETL
