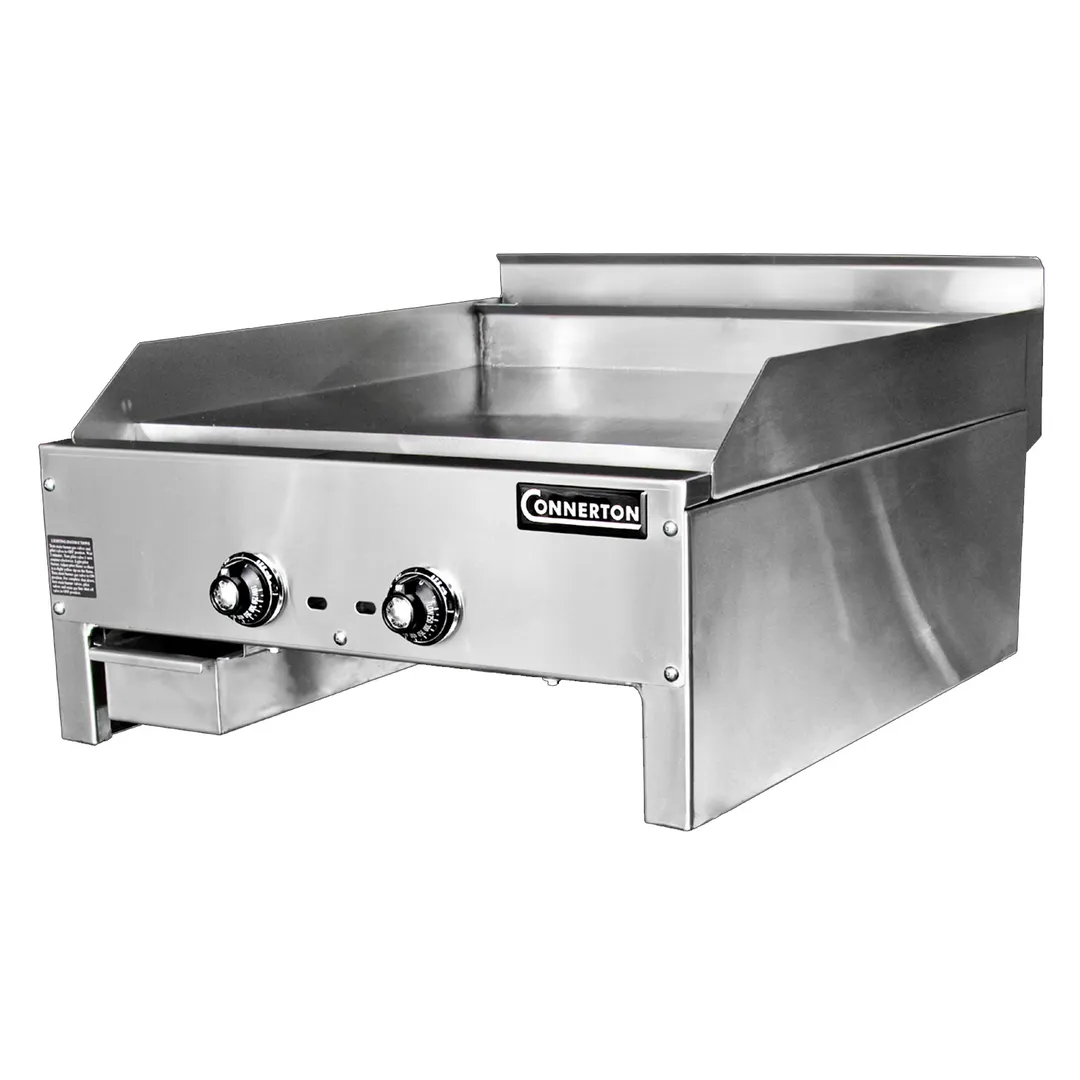

The Connerton CG-24-T-F 1" Floor Model Thermostatic Catering Griddle

Why use Connerton Griddle?

CG-T series thermostatic griddles feature 22,000 BTU “U” shape steel burners. The fully welded #304 stainless steel bodies are available 12″ through 72″.

Connerton CG-24-T-F Features

Stainless steel body
Welded #304 Stainless Steel: For easy cleaning and long life
Integrated “Fire Box - Flue”: Enclosed back, reflects heat up into griddle
1" Highly Polished Plate: For fast recovery
Fully-welded
22,000 BTU burners
CSA & NSF design certified

Connerton CG-24-T-F Specifications

Body: 16 Gauge #304 Stainless Steel, Fully Welded
Fire Box: 16 Gauge #304 Stainless Steel, Welded to Body
Front: Removable 18 Gauge #304 Stainless Steel Panel
Plate: 1” Highly Polished Steel Plate
Gutter: 14 Gauge #304 Stainless Steel
Splash: 14 Gauge #304 Stainless Steel, 3” High
Burners: 22,000 BTU Tubular Aluminized Steel, U-Shaped
Drip Pan: 18 Gauge #304 Stainless Steel
Thermostats: Robertshaw type BJWA
Gas Inlet: ¾ NPT
Gas Pressure: 4.0” Natural, 11.0” Propane (Inches Water Column)
Legs : 1-1/2” sq. X 16 Gauge #304 Stainless Steel tubing welded to body with Stainless Steel undershelf and adjustable feet

Connerton CG-24-T-F Options

Stainless Steel Plate Shelf
Grooved Griddle Plate
Chromed Griddle Plate
4” Legs Accessory
25” deep plate

From The Manufacturer

Griddle, floor model, gas, 24" W x 22" D cooking surface, 1" thick highly polished steel griddle plate, (2) burners, thermostatic controls, 3" high splash, fire box, removable front panel, gutter, fully welded stainless steel body with undershelf & adjustable feet, 60,000 BTU, NSF, CSA

Manufacturer	Connerton
Model Number	CG-24-T-F
Weight	230 lbs
Width	24″
Depth	27″
Height	40.75″
Installation Type	floor model
Griddle Style	flat top (standard)
Griddle Plate Finish	smooth steel
Controls	thermostatic controls
Plate Thickness	1"
Cooking Surface Width (side - side)	12" - 24"
Cooking Surface Depth (front - back)	22"
Exterior Finish	all stainless steel exterior
Certifications	NSF, CSA
