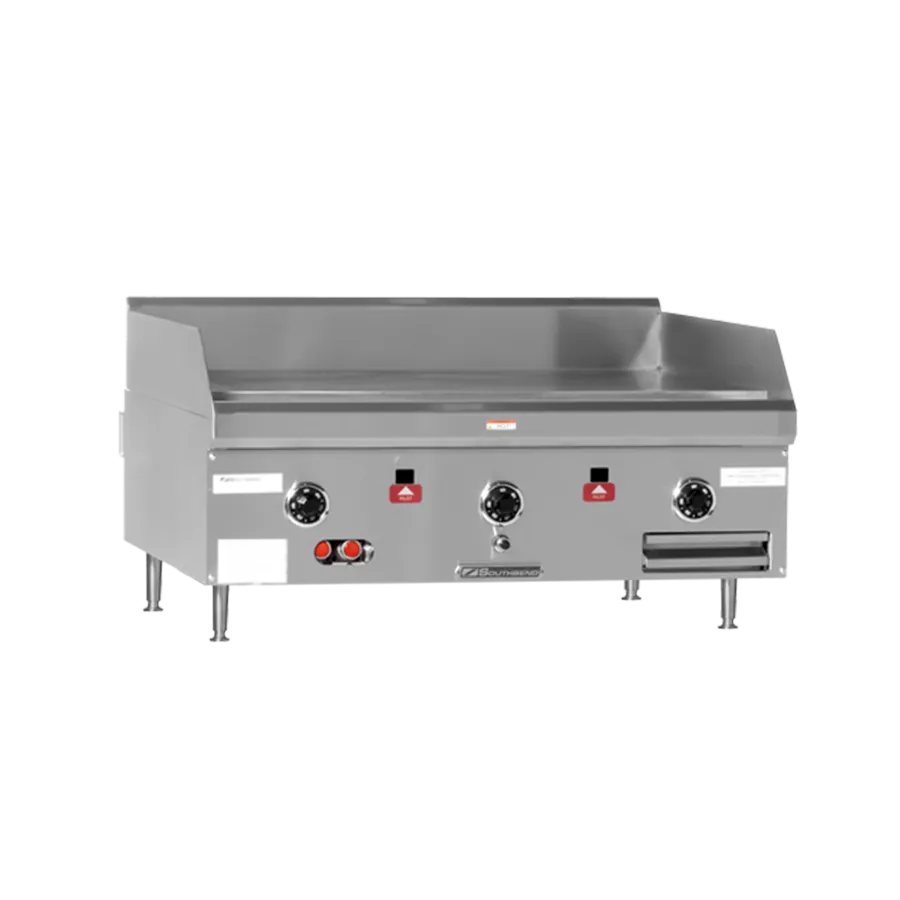

Southbend HDG-24-30 24" Floor Gas Griddle with Thermostatic Controls
Standard Features
- 1” thick polished rolled steel plate, 30” deep
- 30,000 BTU (NAT or LP) burner per 12” Thermostatic Models
- Electronic spark ignition (battery)
- Stainless steel front, vent and sides are standard, rear and bottom panels are aluminized steel.
- Reinforced, insulated double wall sides
- 5” high rear and 4” side splash guards
- 3/4” rear gas connection and pressure regulator
- Protected flue opening
- Exclusive “NO COLD” Zone -Uniform heat distribution across surface
- Each burner equipped with runner tube
- Grease drawers with large capacity
- Fully welded griddle plate with protected exhaust vent
Standard Features of Thermostatic Griddle Models
- “Insta-on” thermostatic controls for precise settings between 200°F and 550°F
- Imbedded load sensing thermostat
- Flame failure safety device
Standard Construction Specifications
- Exterior Finish: Front, sides and vent are constructed of #3 polished 430 and 304 stainless steel. Bottom and rear are aluminized steel. Sides are reinforced and fully insulated. 5” rear and 4” side splash.
- Griddle Plate: 48” and 60” wide by 30” deep cooking surface with one 30,000 BTU (NAT or LP) burners every 12” on thermostatic models and one 20,000 BTU (NAT or LP) burners every 12” on manual models. Fully welded, 1” thick polished steel griddle plate with side splash guards, and grease drawer.
- Griddle Controls: Independent, “Insta-on” thermostatic controls with uniform temperature range of 200°F to 550°F. (Thermostatic models ONLY)
- Legs: Stainless steel 4" adjustable legs.
- Gas Heat Control System: Each foot of griddle is heated by a “U” shaped burner. Each burner is controlled by a thermostatic control. For safety, each pilot has a flame failure device. A 3/4” rear gas connection is standard. Units over 48” wide are constructed of two bodies. (Thermostatic models ONLY)
From The Manufacturer
Griddle, floor model, gas, 24" W x 30" D cooking surface, 1" thick polished steel plate, (2) burners, thermostatic controls, battery spark ignition, flame failure safety device, stainless steel front & sides, 4” adjustable legs, 60,000 BTU, CSA, NSF
