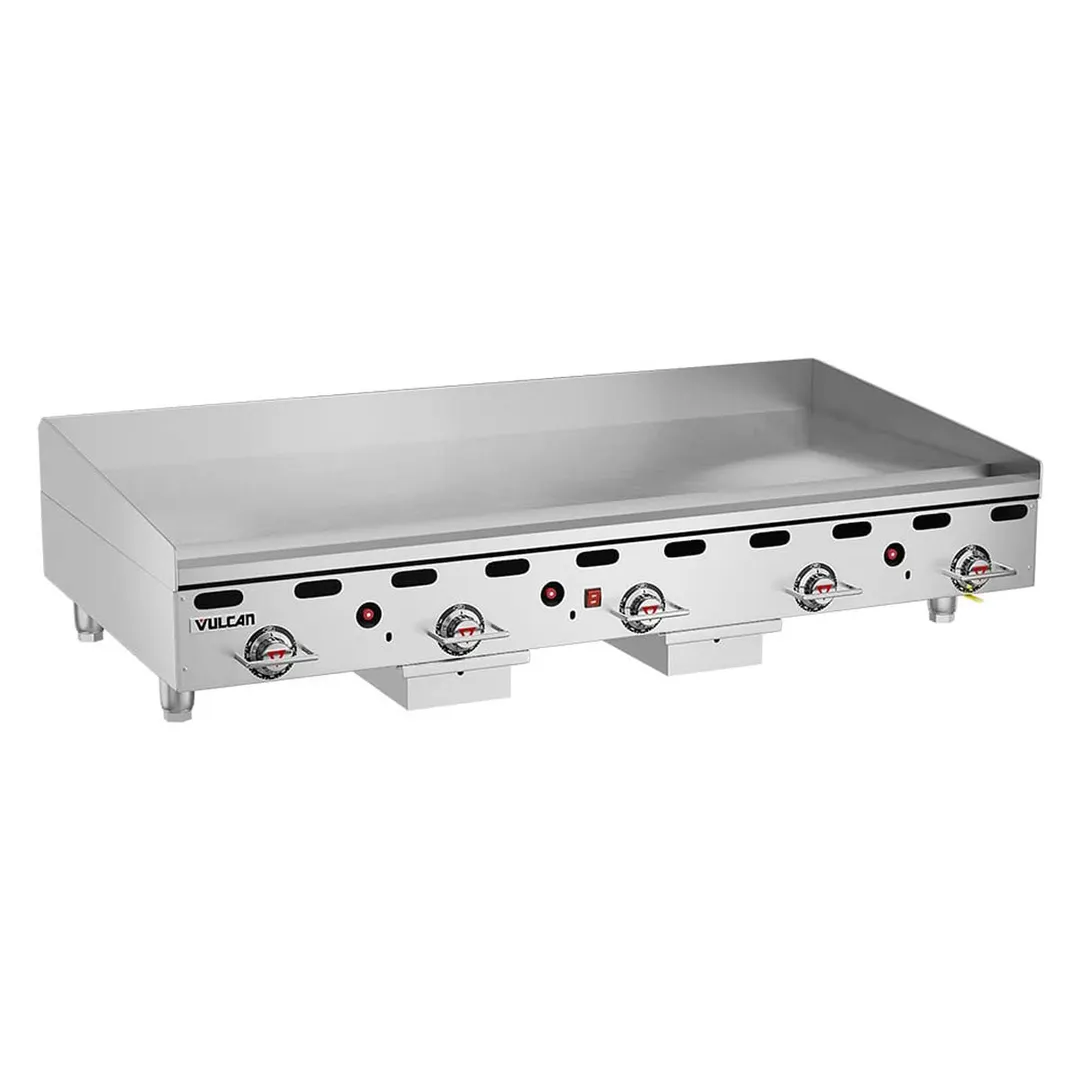

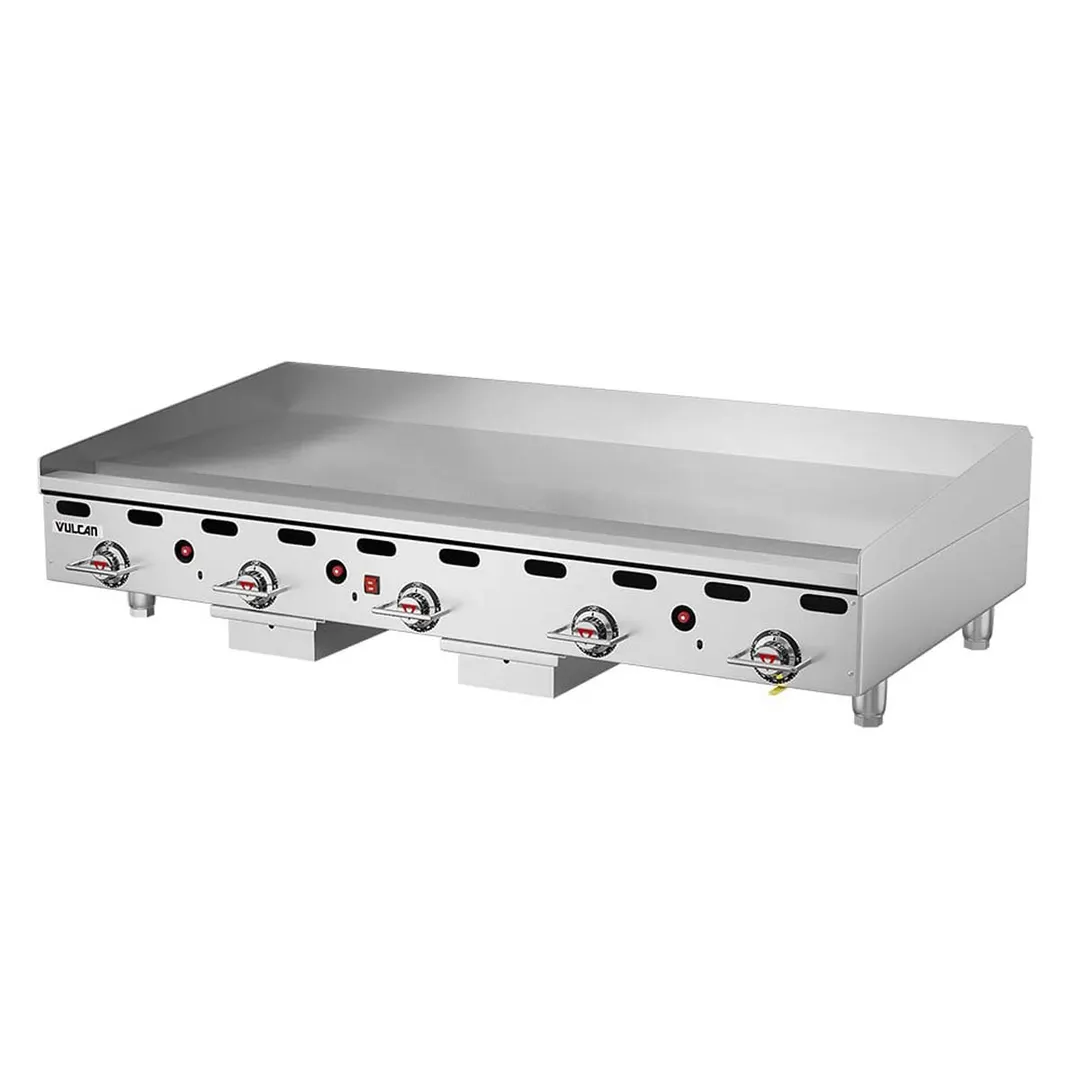

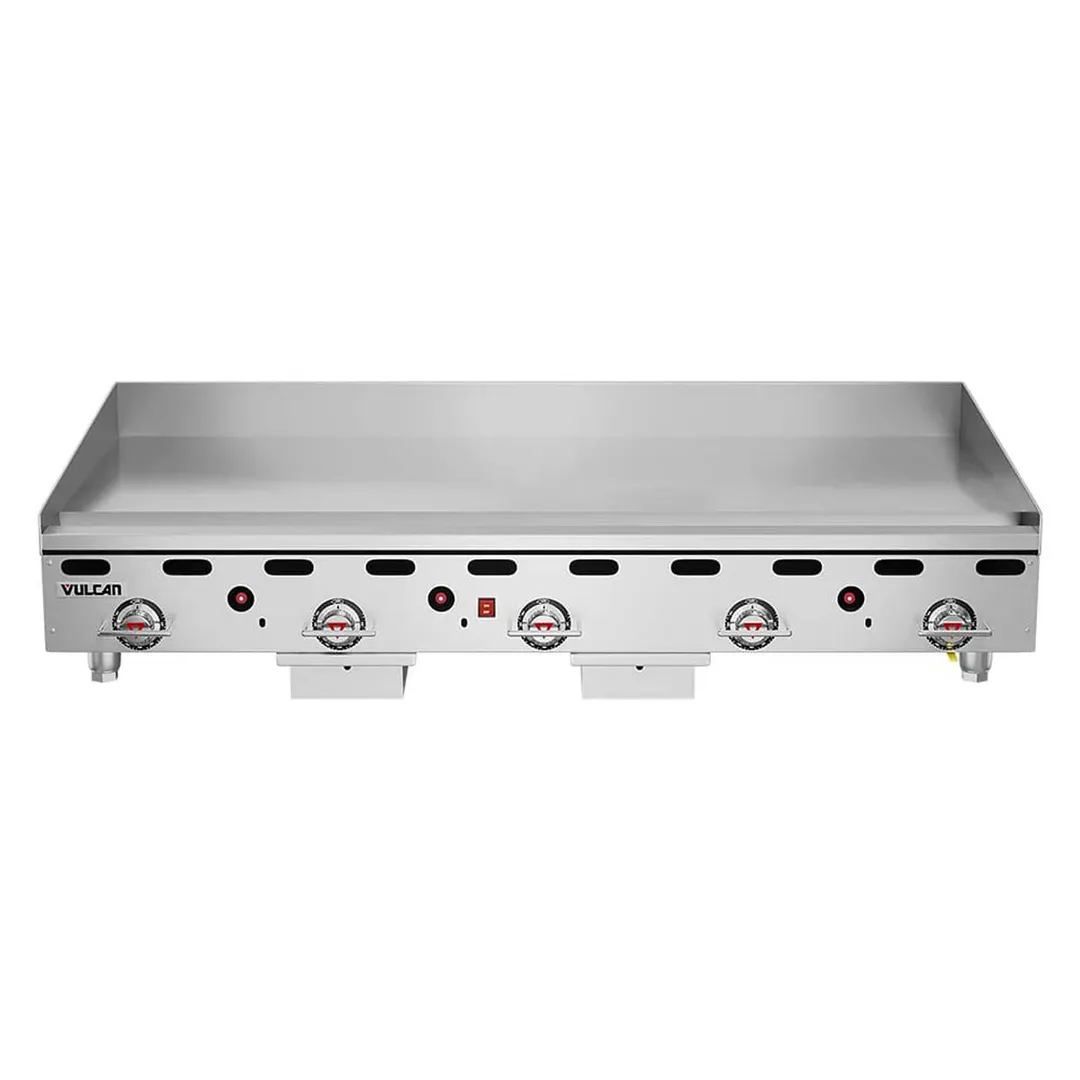

Vulcan 960RX-30 60" Countertop Gas Griddle
Vulcan 960RX-30 Standard Features
- Stainless steel front, sides and front top ledge with “Cool Bullnose” design.
- Fully welded stainless and aluminized steel chassis frame.
- 11" low profile cooking height on 4" adjustable legs.
- 1" thick polished steel griddle plate with 12 gage, 4" stainless steel back and tapered side splashes.
- Spatula wide 3½" grease gutter and chute is fully welded for easier cleaning and to stop grease migration.
- One 27,000 BTU/hr. “U” shaped aluminized steel burner for every 12" of griddle width.
- One embedded snap action thermostat per burner with temperature adjust from 200°F to 550°F.
- Large 6 quart stainless steel grease drawer (2 drawers on 60" and 72" models).
- Heavy duty chromed thermostat knob guards.
- One pilot safety valve for every two burners. Safety will completely shut off gas to pilot and burners if pilot extinguishes.
- Manual shut-off valve for gas inlet.
- Dual (manual/electric) ignition.
- Bottom heat shields
- ¾" rear gas connection and gas pressure regulator.
- 120V 50/60Hz 1 Amp single phase with NEMA 5-15 USA plug.
- One year limited parts and labor warranty.
Vulcan 960RX-30 Specifications
- Weight: 650 lbs
- Width: 60"
- Height: 15.25"
- Depth: 37.5"
- Exterior Finish: stainless steel front & sides
- Plate thickness: 1"
- Controls: thermostat / solid state controls
- Cooking Surface Width (side - side): 55" - 60"
- Cooking Surface Depth (front - back): 30" - 36"
- Griddle Plate Finish: smooth steel
From The Manufacturer
Heavy Duty Griddle, countertop, gas, 60" W x 30" D cooking surface, 1" thick polished steel griddle plate, embedded mechanical snap action thermostat every 12", millivolt pilot safety, electric spark or manual ignition, front manifold gas shut-off valve, low profile, stainless steel front, sides, front grease trough, 4" back & tapered side splashes, 4" adjustable legs, 135,000 BTU, CSA, NSF
Images are for reference. Color, configuration, dimensions and what's included vary by model. See the spec sheet to confirm the exact details.
