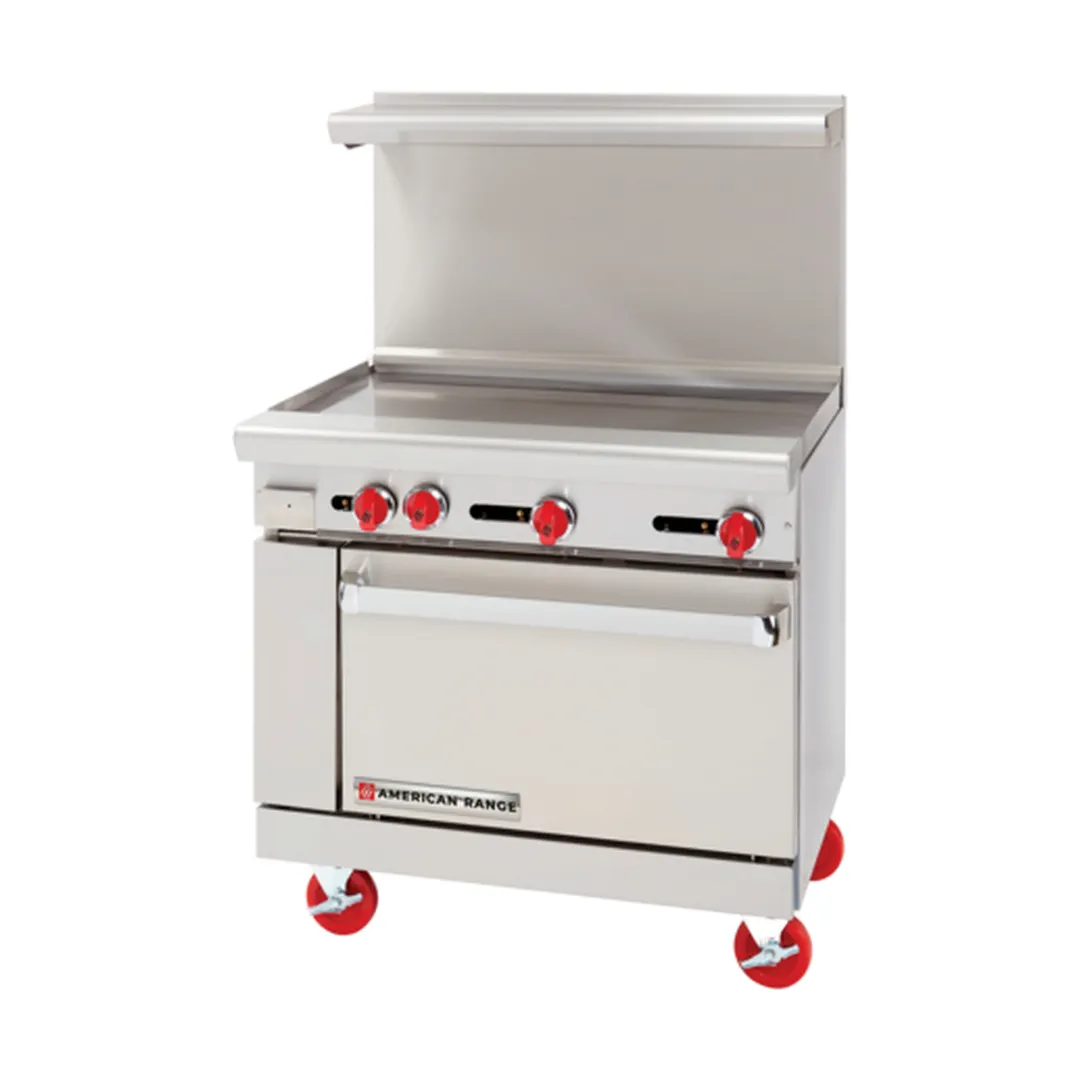

Name: American Range AR-36G 36" Gas Restaurant Range w/ (1) 36" Full Griddle, (1) Standard Oven, 95.000 BTU
Brand: American Range
SKU: AME-AR-36G
Price: 4657.5 USD
Availability: OutOfStock

American Range AR-36G Culinary Series 36” Professional Restaurant Range

General Info

The Restaurant Range Series by American Range was designed for continuous rugged use and performance. All the latest technology is incorporated to give you the best value for your money.

American Range AR-36G Standard Features

All Stainless Steel front, sides, high shelf & riser.
Heavy gauge welded frame construction.
6” Stainless Steel heavy duty landing ledge.
12” x 12” sectioned cast iron top grates.
32,000 BTU/hr. lift-off open burners.
Porcelainized oven interior.
One chrome plated rack per oven.
100% safety oven pilot.
6” chrome plated steel legs.
Optional Casters available.
AGA and CGA design certified and NSF listed.
One year limited warranty, parts and labor

American Range AR-36G Specifications

Description : (1) 36” Griddle
Total BTU : 95,000
KW : 28
Shipping Weight Lbs.(Kg): 500 (227)
Other Details : See spec. sheet

From The Manufacturer

Restaurant Range, gas, 36", (1) 36" griddle, 1" thick plate, manual controls, (1) 26-1/2" standard oven, (2) racks, stainless steel front, sides, choice of high shelf and riser, 20" riser or 6" stub back, 6" adjustable chrome plated legs, 28.0kW, 95,000 BTU, cETLus, ETL-Sanitation, Made in USA

Manufacturer	American Range
Model Number	AR-36G
Weight	455 lbs
Depth	32.25″
Height	56″
Exterior Finish	stainless steel front & sides
Width	36″
Top	(1) griddle
Plate Thickness	.625" = 5/8"
Control Type	manual control
Vent	backriser with hi-shelf
Installation Type	freestanding
Total BTU	95,000
Base Type	oven base
Oven Type	standard oven
Number Of Ovens	1
Top Configuration	griddle
Range Type	standard duty/restaurant range
Oven BTU	35,000
Griddle/Charbroiler BTU	20,000
Griddle/Charbroiler Location	full surface

	American Range AR-36G 36" Gas Restaurant Range w/ (1) 36" Full Griddle, (1) Standard Oven, 95.000 BTU	Imperial IR-G36-C 36" Gas Restaurant Range w/ 36" Full Griddle, (1) Convection Oven, 90.000 BTU	Imperial IR-G36 36" Gas Restaurant Range w/ 36" Full Griddle, (1) Standard Oven, 95.000 BTU	Southbend S36D-3G 36"Gas Restaurant Range w/ 36" Full Griddle, (1) Standard Oven, 99.000 BTU	American Range AR-24G 24" Gas Restaurant Range w/ (1) Griddle, (1) Space Saver Oven, 67.000 BTU	Garland US Range G36-G36R 36" Gas Range w/ 36" Full Griddle, (1) Standard Oven, 92.000 BTU	Garland US Range U36-G36R 36" Commercial Gas Range w/ 36" Full Griddle, (1) Standard Oven, 92.000 BTU	Vulcan 36S-36G 36" Gas Restaurant Range w/ 36" Full Griddle, (1) Standard Oven, 95.000 BTU	Royal Range of California RDR-G36 36" Gas Restaurant Range w/ 36" Full Griddle, (1) Standard Oven, 95.000 BTU
Customer Rating	Customer Rating	Customer Rating	Customer Rating	Customer Rating	Customer Rating	Customer Rating	Customer Rating	Customer Rating	Customer Rating
Price	Price	Price	Price	Price	Price	Price	Price	Price	Price
Shipping	ShippingFree Shipping	ShippingFree Shipping	ShippingFree Shipping	ShippingFree Shipping	ShippingFree Shipping	ShippingFree Shipping	ShippingFree Shipping	ShippingFree Shipping	ShippingPlus Shipping
Oven BTU	Oven BTU35,000	Oven BTU30,000	Oven BTU35,000	Oven BTU35,000	Oven BTU27,000	Oven BTU38,000	Oven BTU-	Oven BTU35,000	Oven BTU35,000
Total BTU	Total BTU54.000 - 99.500	Total BTU54.000 - 99.500	Total BTU54.000 - 99.500	Total BTU54.000 - 99.500	Total BTU54.000 - 99.500	Total BTU54.000 - 99.500	Total BTU54.000 - 99.500	Total BTU54.000 - 99.500	Total BTU54.000 - 99.500
WIDTH (SIDE - SIDE)	WIDTH (SIDE - SIDE)36	WIDTH (SIDE - SIDE)36	WIDTH (SIDE - SIDE)36	WIDTH (SIDE - SIDE)36.5	WIDTH (SIDE - SIDE)24	WIDTH (SIDE - SIDE)36	WIDTH (SIDE - SIDE)36	WIDTH (SIDE - SIDE)36	WIDTH (SIDE - SIDE)36
Manufacturer	ManufacturerAmerican Range	ManufacturerImperial	ManufacturerImperial	ManufacturerSouthbend	ManufacturerAmerican Range	ManufacturerGarland US Range	ManufacturerGarland US Range	ManufacturerVulcan	ManufacturerRoyal Range of California
Top	Top(1) griddle	Top(1) griddle	Top(1) griddle	Top(1) griddle	Top(1) griddle	Top(1) griddle	Top(1) griddle	Top(1) griddle	Top(1) griddle
Plate Thickness	Plate Thickness.625" = 5/8"	Plate Thickness.750" = 3/4"	Plate Thickness.750" = 3/4"	Plate Thickness-	Plate Thickness.625" = 5/8"	Plate Thickness.625" = 5/8"	Plate Thickness.625" = 5/8"	Plate Thickness.750" = 3/4"	Plate Thickness.750" = 3/4"
Base Type	Base Typeoven base	Base Typeoven base	Base Typeoven base	Base Typeoven base	Base Typeoven base	Base Typeoven base	Base Typeoven base	Base Typeoven base	Base Typeoven base
Exterior Finish	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides
Vent	Ventbackriser with hi-shelf	Ventbackriser with hi-shelf	Ventbackriser with hi-shelf	Ventbackriser with hi-shelf	Ventbackriser with hi-shelf	Ventbackriser with hi-shelf	Ventbackriser with hi-shelf	Ventbackriser with hi-shelf	Ventbackriser with hi-shelf
Range Type	Range Typestandard duty/restaurant range	Range Typestandard duty/restaurant range	Range Typestandard duty/restaurant range	Range Typestandard duty/restaurant range	Range Typestandard duty/restaurant range	Range Typestandard duty/restaurant range	Range Typestandard duty/restaurant range	Range Typestandard duty/restaurant range	Range Typestandard duty/restaurant range
Width	Width36"	Width36"	Width36"	Width36"	Width24"	Width36"	Width36"	Width36"	Width36"
Oven Type	Oven Typestandard oven	Oven Typeconvection oven	Oven Typestandard oven	Oven Typestandard oven	Oven Typespace saver oven	Oven Typestandard oven	Oven Typestandard oven	Oven Typestandard oven	Oven Typestandard oven
Number Of Ovens	Number Of Ovens1	Number Of Ovens1	Number Of Ovens1	Number Of Ovens1	Number Of Ovens1	Number Of Ovens1	Number Of Ovens1	Number Of Ovens1	Number Of Ovens1
Top Configuration	Top Configurationgriddle	Top Configurationgriddle	Top Configurationgriddle	Top Configurationgriddle	Top Configurationgriddle	Top Configurationgriddle	Top Configurationgriddle	Top Configurationgriddle	Top Configurationgriddle
Installation Type	Installation Typefreestanding	Installation Typefreestanding	Installation Typefreestanding	Installation Typefreestanding	Installation Typefreestanding	Installation Typefreestanding	Installation Typefreestanding	Installation Typefreestanding	Installation Typefreestanding
Control Type	Control Typemanual control	Control Typemanual control	Control Typemanual control	Control Typemanual control	Control Typemanual control	Control Typemanual control	Control Typemanual control	Control Typemanual control	Control Typemanual control
Griddle/Charbroiler BTU	Griddle/Charbroiler BTU20,000	Griddle/Charbroiler BTU-	Griddle/Charbroiler BTU20,000	Griddle/Charbroiler BTU64,000	Griddle/Charbroiler BTU20,000	Griddle/Charbroiler BTU18,000	Griddle/Charbroiler BTU18,000	Griddle/Charbroiler BTU60,000	Griddle/Charbroiler BTU20,000
Burner BTU	Burner BTU-	Burner BTU-	Burner BTU-	Burner BTU-	Burner BTU-	Burner BTU-	Burner BTU38,000	Burner BTU-	Burner BTU-
Certifications	Certifications-	Certifications-	Certifications-	Certifications-	Certifications-	Certifications-	Certifications-	Certifications-	CertificationsNSF, cCSAus, CSA-Sanitation, Made in USA
Frame Type	Frame Type-	Frame Type-	Frame Type-	Frame Type-	Frame Type-	Frame Type-	Frame Type-	Frame Type-	Frame Typefully welded frame with 1.200°F mineral wool insulation
