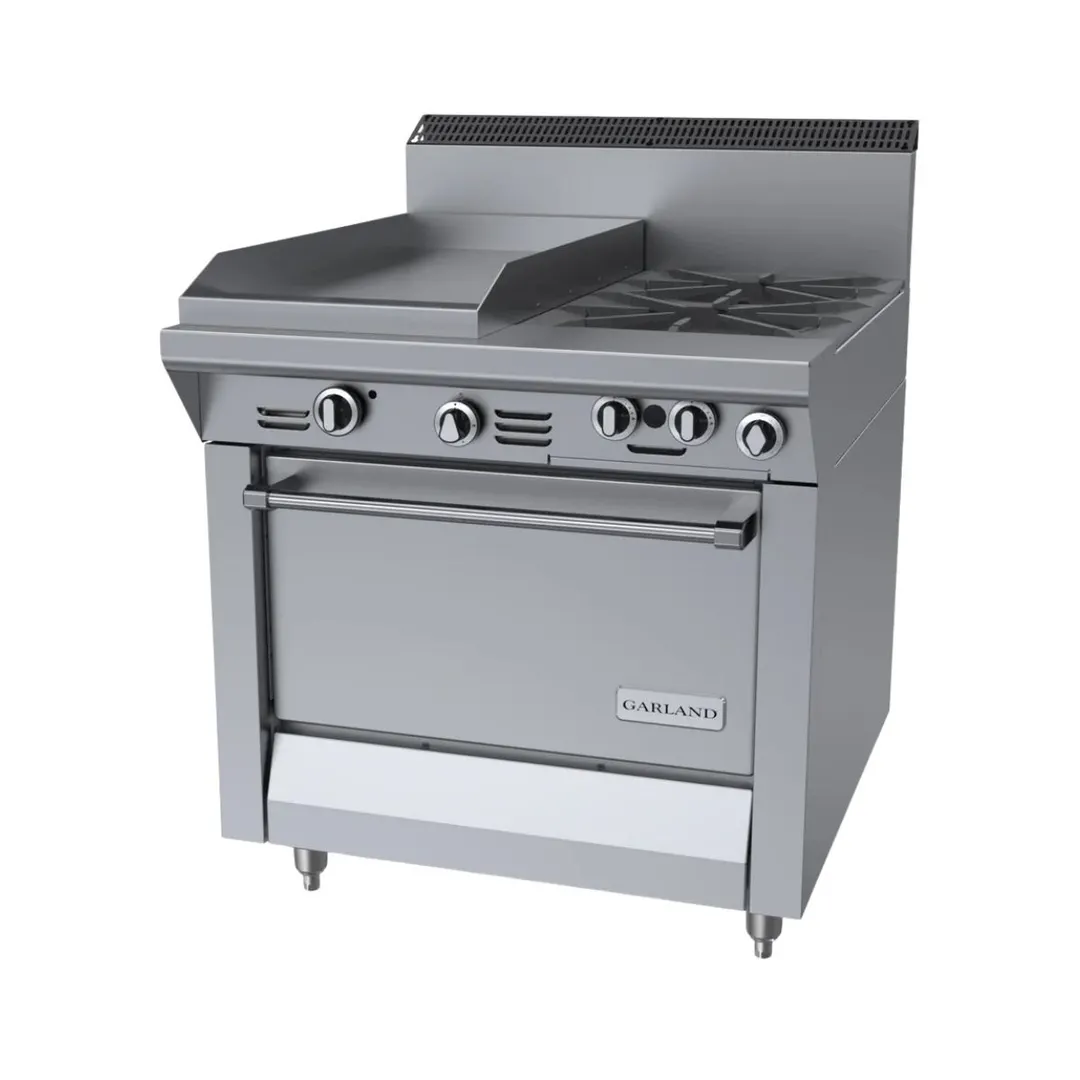

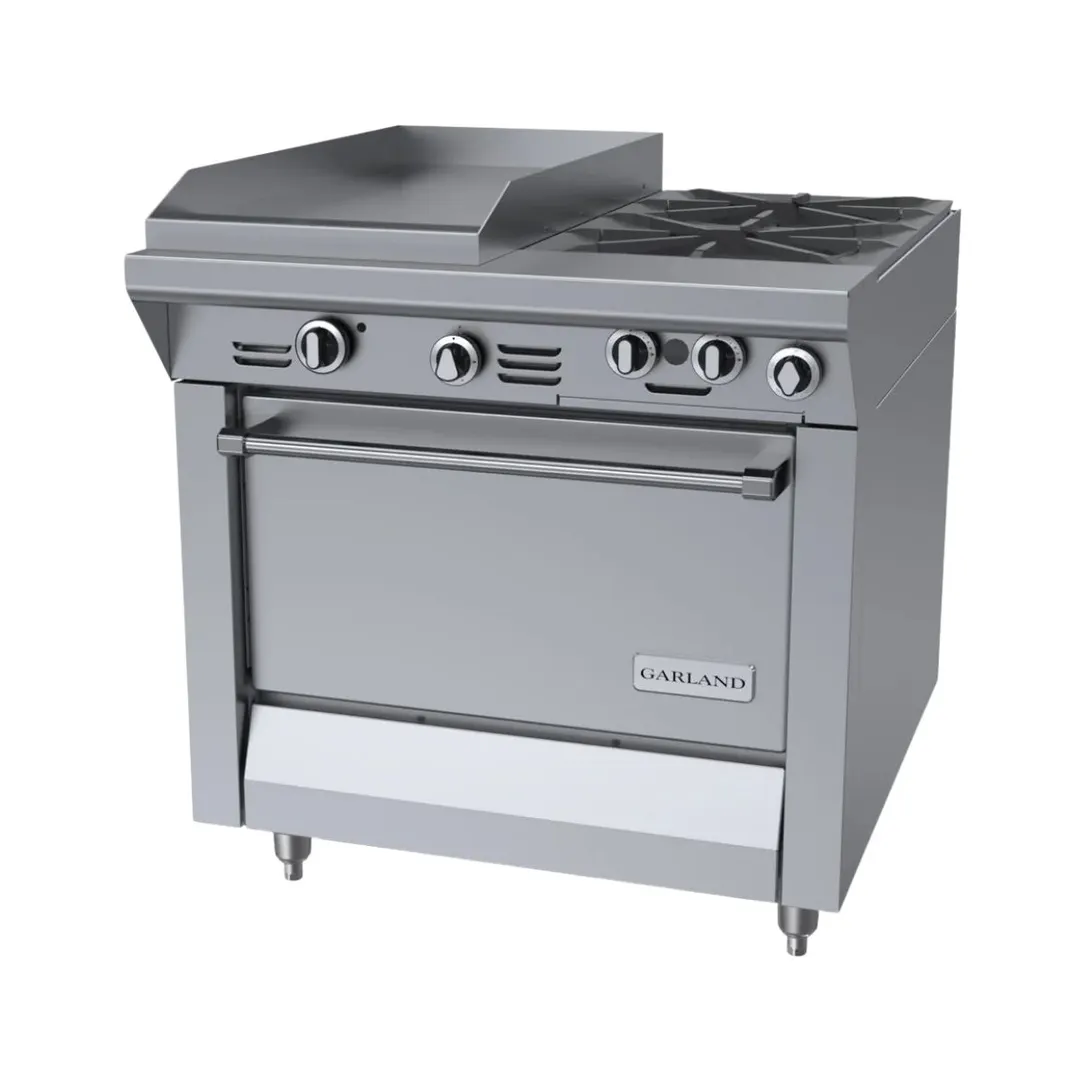

Garland Master Series Heavy Duty Combination Top Range

Specifacations

Heavy-duty combination top gas range with oven, One 17" (432mm) W x 25" (635mm) D, 1" (25mm) thick, Hi-Lo valve griddle on left, 33,000 BTU (9.6kW), bordered side and rear by continuously welded stainless steel splash guard. Two 35,000 BTU (10.25kW) Starfire open burners with removable heads. Heavy duty cast iron top grates/ring grates on right only, 34" (864mm) W x 38" (965mm) D, including 7-1/2" (191mm) deep stainless steel front rail. Porcelain enamel oven interior with 40,000 BTU (11.72kW) cast iron burner. Stainless steel front and sides. Natural or propane gas. Also available with storage base w/ doors, suffix S, and modular top, suffix T.

Standard Features

Stainless steel front and sides
6" (152mm) chrome steel adj. legs
7-1/2" (191mm) stainless steel front rail
(2) 35,000 BTU (10.25kW), natural gas or 32,000 (9.37kW) propane; 2-piece Starfire open burners w/removable heads
Removable ring grates over each burner & cast iron top grates
Stainless steel drip tray under open burners
Griddle with 1" (25mm) thick steel plate on left, with 33,000 BTU (9.66kW) “H” type burner controlled by Hi-Lo valve
2-5/16" (59mm) high welded steel splash guards, sides & back for griddle
Clip‑on stainless steel backsplash for griddle plate
Removable front‑mounted stainless steel grease receptacle
Fully porcelainized oven interior
Piezo Spark ignition for oven
40,000 BTU (11.72 kW) natural gas, 35,000 BTU (10.25 kW) propane gas cast iron oven burner

From The Manufacturer

Master Series Heavy Duty Range, gas, 34", (2) 35,000 BTU open burners, (1) 17" griddle, 1" thick steel plate, standard oven, Piezo ignition, stainless steel front & sides, 6" legs, 143,000 BTU, CSA Flame, CSA Star, NSF (Garland)

Manufacturer	Garland US Range
Model Number	M42R
Weight	445 lbs
Width	34″
Depth	38″
Height	36.38″
Installation Type	free standing
Range Type	heavy duty/modular range
Number of Burners	2 burners
Base Type	oven base
Oven Type	standard oven
Number Of Ovens	1
Top Configuration	burner & griddle
Exterior Finish	stainless steel front & sides
Top	(2) open burners, (1) 18" griddle
Total BTU	143,000
Burner BTU	35,000
Oven BTU	40,000
Griddle/Charbroiler BTU	33,000

	Garland US Range M42R 34" Gas Heavy Duty Range w/ (2) Open Burners, 17" Griddle Left, (1) Standard Oven, 143.000 BTU	Garland US Range MST42R-E 34" Gas Heavy Duty Range w/ (2) Open Burners, 17" Griddle Left, (1) Standard Oven, 140.000 BTU	Garland US Range M48-23R 34" Gas Heavy Duty Range w/ (2) Open Burners, 23" Griddle Left w/ Thermostatic Controls, (1) Standard Oven, 154.000 BTU	Garland US Range M47-23R 34" Gas Heavy Duty Range w/ (2) Open Burners, 23" Griddle Left, (1) Standard Oven, 154.000 BTU	Vulcan V2BG18S 36" Gas Heavy Duty Range w/ (2) Open Burners, 18" Griddle Right, Standard Oven, 150.000 BTU Free Shipping	Imperial IHR-G18-2 36" Gas Heavy Duty Range w/ (2) Open Burners, 18" Griddle, (1) Standard Oven, 160.000 BTU Free Shipping	Garland US Range MST54R-E 34" Gas Heavy Duty Range w/ (2) Open Burners, (1) Front Fired Hot Top, (1) Standard Oven, 155.000 BTU	Garland US Range M54R Master Series Heavy Duty Range, Gas, 34"	Vulcan V2BG8TS 36" Gas Heavy Duty Range w/ (2) Open Burners, 18" Griddle Right w/ Thermostatic Controls, (1) Standard Oven, 150.000 BTU Free Shipping
Price	Price	Price	Price	Price	Price	Price	Price	Price	Price
Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingFree Shipping	ShippingFree Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingFree Shipping
Total BTU	Total BTU141.000 - 400.500	Total BTU100.000 - 140.500	Total BTU141.000 - 400.500	Total BTU141.000 - 400.500	Total BTU141.000 - 400.500	Total BTU141.000 - 400.500	Total BTU141.000 - 400.500	Total BTU141.000 - 400.500	Total BTU141.000 - 400.500
Burner BTU	Burner BTU35,000	Burner BTU35,000	Burner BTU24,000	Burner BTU24,000	Burner BTU35,000	Burner BTU35,000	Burner BTU35,000	Burner BTU35,000	Burner BTU35,000
Oven BTU	Oven BTU40,000	Oven BTU40,000	Oven BTU40,000	Oven BTU40,000	Oven BTU50,000	Oven BTU40,000	Oven BTU40,000	Oven BTUNo	Oven BTU50,000
Griddle/Charbroiler BTU	Griddle/Charbroiler BTU33,000	Griddle/Charbroiler BTU30,000	Griddle/Charbroiler BTU66,000	Griddle/Charbroiler BTU66,000	Griddle/Charbroiler BTU30,000	Griddle/Charbroiler BTU30,000	Griddle/Charbroiler BTUNo	Griddle/Charbroiler BTUNo	Griddle/Charbroiler BTU30,000
WIDTH (SIDE - SIDE)	WIDTH (SIDE - SIDE)34	WIDTH (SIDE - SIDE)34	WIDTH (SIDE - SIDE)34	WIDTH (SIDE - SIDE)34	WIDTH (SIDE - SIDE)36	WIDTH (SIDE - SIDE)36	WIDTH (SIDE - SIDE)34	WIDTH (SIDE - SIDE)34	WIDTH (SIDE - SIDE)36
Manufacturer	ManufacturerGarland US Range	ManufacturerGarland US Range	ManufacturerGarland US Range	ManufacturerGarland US Range	ManufacturerVulcan	ManufacturerImperial	ManufacturerGarland US Range	ManufacturerGarland US Range	ManufacturerVulcan
Top	Top(2) open burners, (1) 18" griddle	Top(2) open burners, (1) 18" griddle	Top(2) open burners, (1) 24" griddle with thermostats	Top(2) open burners, (1) 24" griddle	Top(2) open burners, (1) 18" griddle	Top(2) open burners, (1) 18" griddle	Top(2) open burners, (1) 18" hot top	Top(2) open burners, (1) 18" hot top	Top(2) open burners, (1) 18" griddle with thermostats
Plate Thickness	Plate ThicknessNo	Plate Thickness1.000" = 1"	Plate Thickness1.000" = 1"	Plate ThicknessNo	Plate Thickness.750" = 3/4"	Plate Thickness1.000" = 1"	Plate ThicknessNo	Plate ThicknessNo	Plate Thickness.750" = 3/4"
Base Type	Base TypeNo	Base TypeNo	Base TypeNo	Base TypeNo	Base Typeoven base	Base Typeoven base	Base TypeNo	Base TypeNo	Base Typeoven base
Exterior Finish	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides
Range Type	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range
Width	Width34"	Width34"	Width34"	Width34"	Width36"	Width36"	Width34"	Width34"	Width36"
Number of Burners	Number of Burners2 burners	Number of Burners2 burners	Number of Burners2 burners	Number of Burners2 burners	Number of Burners2 burners	Number of Burners2 burners	Number of Burners2 burners	Number of Burners2 burners	Number of Burners2 burners
Oven Type	Oven Typestandard oven	Oven Typestandard oven	Oven Typestandard oven	Oven Typestandard oven	Oven Typestandard oven	Oven Typestandard oven	Oven Typestandard oven	Oven Typestandard oven	Oven Typestandard oven
Number Of Ovens	Number Of Ovens1	Number Of Ovens1	Number Of Ovens1	Number Of Ovens1	Number Of Ovens1	Number Of Ovens1	Number Of Ovens1	Number Of Ovens1	Number Of Ovens1
Top Configuration	Top Configurationburner & griddle	Top Configurationburner & griddle	Top Configurationburner & griddle	Top Configurationburner & griddle	Top Configurationburner & griddle	Top Configurationburner & griddle	Top Configurationburner & hot top	Top Configurationburner & hot top	Top Configurationburner & griddle
Installation Type	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing
Control Type	Control TypeNo	Control TypeNo	Control TypeNo	Control TypeNo	Control Typemanual control	Control Typemanual control	Control TypeNo	Control TypeNo	Control Typethermostatic control

Manufacturer	Garland US Range
Model Number	M42R
Weight	445 lbs
Width	34″
Depth	38″
Height	36.38″
Installation Type	free standing
Range Type	heavy duty/modular range
Number of Burners	2 burners
Base Type	oven base
Oven Type	standard oven
Number Of Ovens	1
Top Configuration	burner & griddle
Exterior Finish	stainless steel front & sides
Top	(2) open burners, (1) 18" griddle
Total BTU	143,000
Burner BTU	35,000
Oven BTU	40,000
Griddle/Charbroiler BTU	33,000

	Garland US Range M42R 34" Gas Heavy Duty Range w/ (2) Open Burners, 17" Griddle Left, (1) Standard Oven, 143.000 BTU	Garland US Range MST42R-E 34" Gas Heavy Duty Range w/ (2) Open Burners, 17" Griddle Left, (1) Standard Oven, 140.000 BTU	Garland US Range M48-23R 34" Gas Heavy Duty Range w/ (2) Open Burners, 23" Griddle Left w/ Thermostatic Controls, (1) Standard Oven, 154.000 BTU	Garland US Range M47-23R 34" Gas Heavy Duty Range w/ (2) Open Burners, 23" Griddle Left, (1) Standard Oven, 154.000 BTU	Vulcan V2BG18S 36" Gas Heavy Duty Range w/ (2) Open Burners, 18" Griddle Right, Standard Oven, 150.000 BTU Free Shipping	Imperial IHR-G18-2 36" Gas Heavy Duty Range w/ (2) Open Burners, 18" Griddle, (1) Standard Oven, 160.000 BTU Free Shipping	Garland US Range MST54R-E 34" Gas Heavy Duty Range w/ (2) Open Burners, (1) Front Fired Hot Top, (1) Standard Oven, 155.000 BTU	Garland US Range M54R Master Series Heavy Duty Range, Gas, 34"	Vulcan V2BG8TS 36" Gas Heavy Duty Range w/ (2) Open Burners, 18" Griddle Right w/ Thermostatic Controls, (1) Standard Oven, 150.000 BTU Free Shipping
Price	Price	Price	Price	Price	Price	Price	Price	Price	Price
Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingFree Shipping	ShippingFree Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingFree Shipping
Total BTU	Total BTU141.000 - 400.500	Total BTU100.000 - 140.500	Total BTU141.000 - 400.500	Total BTU141.000 - 400.500	Total BTU141.000 - 400.500	Total BTU141.000 - 400.500	Total BTU141.000 - 400.500	Total BTU141.000 - 400.500	Total BTU141.000 - 400.500
Burner BTU	Burner BTU35,000	Burner BTU35,000	Burner BTU24,000	Burner BTU24,000	Burner BTU35,000	Burner BTU35,000	Burner BTU35,000	Burner BTU35,000	Burner BTU35,000
Oven BTU	Oven BTU40,000	Oven BTU40,000	Oven BTU40,000	Oven BTU40,000	Oven BTU50,000	Oven BTU40,000	Oven BTU40,000	Oven BTUNo	Oven BTU50,000
Griddle/Charbroiler BTU	Griddle/Charbroiler BTU33,000	Griddle/Charbroiler BTU30,000	Griddle/Charbroiler BTU66,000	Griddle/Charbroiler BTU66,000	Griddle/Charbroiler BTU30,000	Griddle/Charbroiler BTU30,000	Griddle/Charbroiler BTUNo	Griddle/Charbroiler BTUNo	Griddle/Charbroiler BTU30,000
WIDTH (SIDE - SIDE)	WIDTH (SIDE - SIDE)34	WIDTH (SIDE - SIDE)34	WIDTH (SIDE - SIDE)34	WIDTH (SIDE - SIDE)34	WIDTH (SIDE - SIDE)36	WIDTH (SIDE - SIDE)36	WIDTH (SIDE - SIDE)34	WIDTH (SIDE - SIDE)34	WIDTH (SIDE - SIDE)36
Manufacturer	ManufacturerGarland US Range	ManufacturerGarland US Range	ManufacturerGarland US Range	ManufacturerGarland US Range	ManufacturerVulcan	ManufacturerImperial	ManufacturerGarland US Range	ManufacturerGarland US Range	ManufacturerVulcan
Top	Top(2) open burners, (1) 18" griddle	Top(2) open burners, (1) 18" griddle	Top(2) open burners, (1) 24" griddle with thermostats	Top(2) open burners, (1) 24" griddle	Top(2) open burners, (1) 18" griddle	Top(2) open burners, (1) 18" griddle	Top(2) open burners, (1) 18" hot top	Top(2) open burners, (1) 18" hot top	Top(2) open burners, (1) 18" griddle with thermostats
Plate Thickness	Plate ThicknessNo	Plate Thickness1.000" = 1"	Plate Thickness1.000" = 1"	Plate ThicknessNo	Plate Thickness.750" = 3/4"	Plate Thickness1.000" = 1"	Plate ThicknessNo	Plate ThicknessNo	Plate Thickness.750" = 3/4"
Base Type	Base TypeNo	Base TypeNo	Base TypeNo	Base TypeNo	Base Typeoven base	Base Typeoven base	Base TypeNo	Base TypeNo	Base Typeoven base
Exterior Finish	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides
Range Type	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range
Width	Width34"	Width34"	Width34"	Width34"	Width36"	Width36"	Width34"	Width34"	Width36"
Number of Burners	Number of Burners2 burners	Number of Burners2 burners	Number of Burners2 burners	Number of Burners2 burners	Number of Burners2 burners	Number of Burners2 burners	Number of Burners2 burners	Number of Burners2 burners	Number of Burners2 burners
Oven Type	Oven Typestandard oven	Oven Typestandard oven	Oven Typestandard oven	Oven Typestandard oven	Oven Typestandard oven	Oven Typestandard oven	Oven Typestandard oven	Oven Typestandard oven	Oven Typestandard oven
Number Of Ovens	Number Of Ovens1	Number Of Ovens1	Number Of Ovens1	Number Of Ovens1	Number Of Ovens1	Number Of Ovens1	Number Of Ovens1	Number Of Ovens1	Number Of Ovens1
Top Configuration	Top Configurationburner & griddle	Top Configurationburner & griddle	Top Configurationburner & griddle	Top Configurationburner & griddle	Top Configurationburner & griddle	Top Configurationburner & griddle	Top Configurationburner & hot top	Top Configurationburner & hot top	Top Configurationburner & griddle
Installation Type	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing
Control Type	Control TypeNo	Control TypeNo	Control TypeNo	Control TypeNo	Control Typemanual control	Control Typemanual control	Control TypeNo	Control TypeNo	Control Typethermostatic control

Garland US Range M42R 34" Gas Heavy Duty Range w/ (2) Open Burners, 17" Griddle Left, (1) Standard Oven, 143.000 BTU
