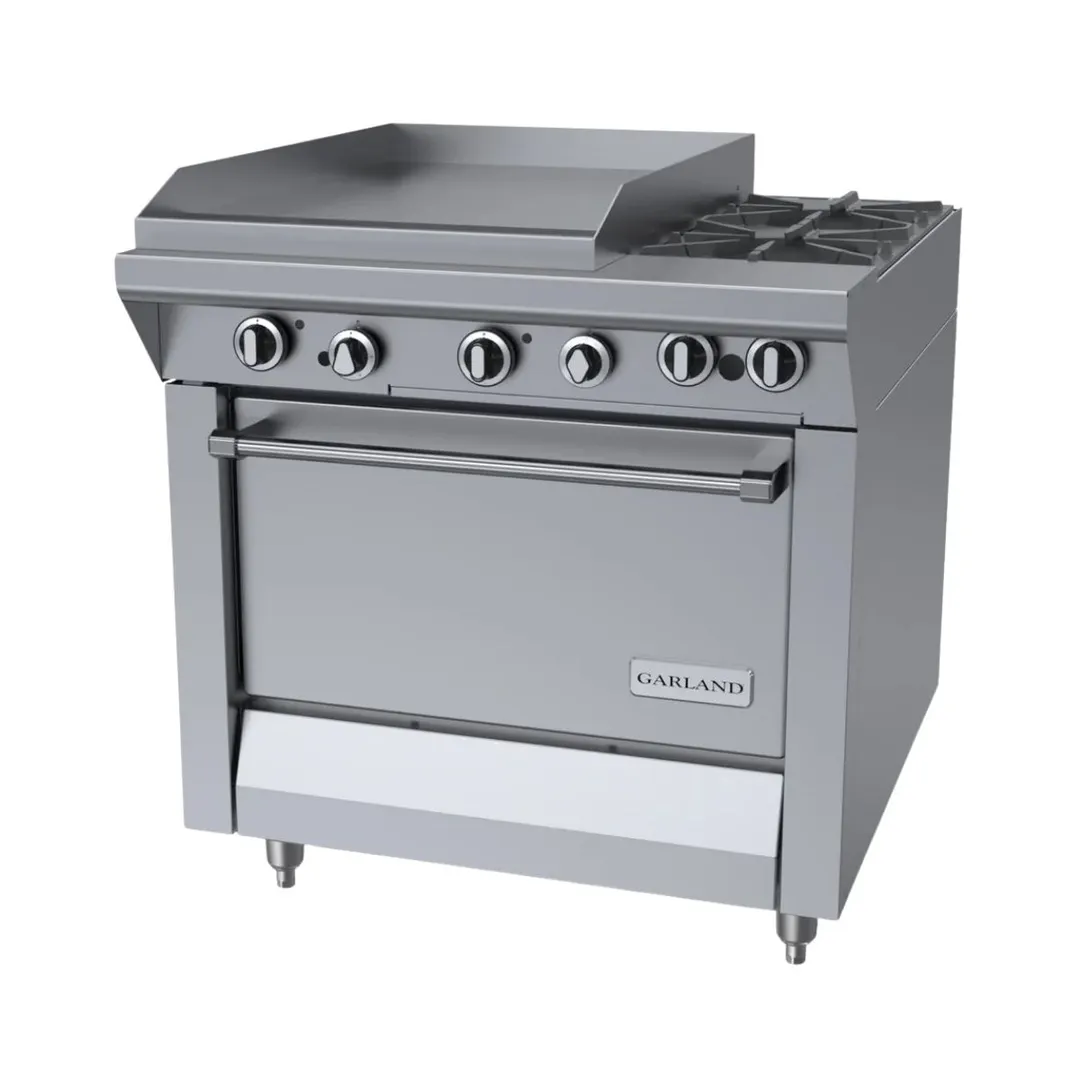

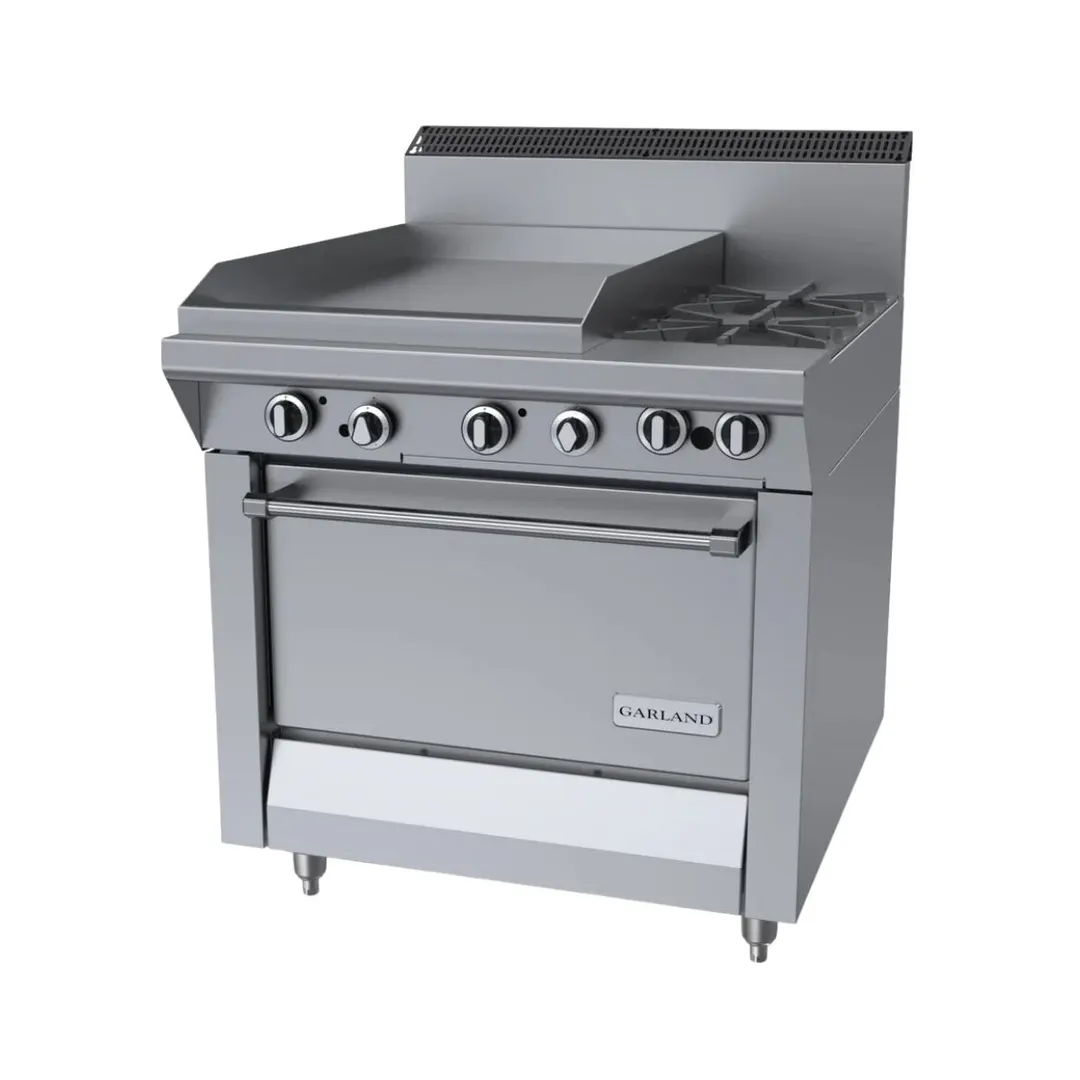

Garland US Range M47-23R 34" Gas Heavy Duty Range w/ (2) Open Burners, 23" Griddle Left, (1) Standard Oven, 154.000 BTU

Specifacations

Heavy duty gas range, Model M47-23R with ovens with one 23" (548mm) wide x 25" (635mm) deep x 1" (25mm) thick griddle. Valve controlled griddle , bordered side and rear continuous welded stainless steel splash guards, 66,000 BTU (19.3kW) total, on left only, and two 24,000 BTU (7.0 kW) Starfire open burners with heavy duty cast iron top grates/ring grates. 34" (864mm) W x 38" (965mm) D, including 7-1/2" (191mm) deep stainless steel front rail. Porcelain enamel oven interior with 40,000 BTU (11.72kW) cast iron burner. Stainless steel front and sides. 154,000 BTU (45.10 kW) total (natural gas). Natural or propane gas. Also available with storage base with doors, M47-23S, and with modular top, M47-23T NOTE: Ranges suppled with casters must be installed with an approved restraining device.

Standard Features

• Stainless steel front and side
• 6" (152mm) chrome steel adj. legs
• 7-1/2" (191mm) stainless steel front rail
• Valve controlled griddle on left with 1" (25mm) thick steel griddle plate & two 33,000 BTU (9.67kW) “H” burners
• 2-5/16" (591mm) H welded steel splashguards, sides & back
• Clip-on stainless steel backsplash
• Removable front-mounted stainless steel grease receptacle
• Two 24,000 BTU (7kW) natural, 20,000BTU (5.86kW) propane Starfire burners per section.
• Removable ring grates over each burner
• One-piece stainless steel drip tray
• Fully porcelainized oven interior
• Piezo Spark ignition for oven
• 40,000 BTU (11.72kW) natural, 35,000 BTU (10.25kW) propane cast iron oven burner
