Garland Master Series Heavy Duty Griddle Top Range
Specifacations
Heavy‑duty gas range with oven, Model M48R. One 34" (864mm wide thermostat controlled griddle. 1" (25mm) thick, 99,000 BTU (29 kW) total. 34" (864mm) wide x 38”(965mm) deep, including 7-1/2" (191mm) deep stainless steel front rail. Porcelain enamel oven interior. 40,000 BTU (11.72 kW) cast iron oven burner. Stainless steel front and sides. 139,000 BTU (40.73 kW) total. Natural or propane gas. Also Available with storage base(s) w/doors, suffix S, and Modular top, suffix T. NOTE: Ranges suppled with casters must be installed with an approved restraining device.
Standard Features
- Stainless steel front and sides
- 6" (152mm) chrome steel adj. legs
- 7-1 /2" (191mm) stainless steel front rail
- 1" (25mm) thick steel griddle plate
- 2-5/16" (591mm) high welded steel splash guard, sides and back
- Clip‑on stainless steel backsplash
- Removable front‑mounted stainless steel grease receptacle
- Thermostatic control with embedded capillary line sensors for each griddle burner
- Three “H” griddle burners 99,000 BTU (29 kW) total
- Piezo spark ignition for oven
- Fully porcelainized oven interior
- Storage base interior of aluminized steel w/shelf, (Suffix S)
- Modular top section, (Suffix T)
- 40,000 BTU (11.7 kW) natural gas,. 35,000 BTU (10.25kW) propane gas cast iron oven burner
From The Manufacturer

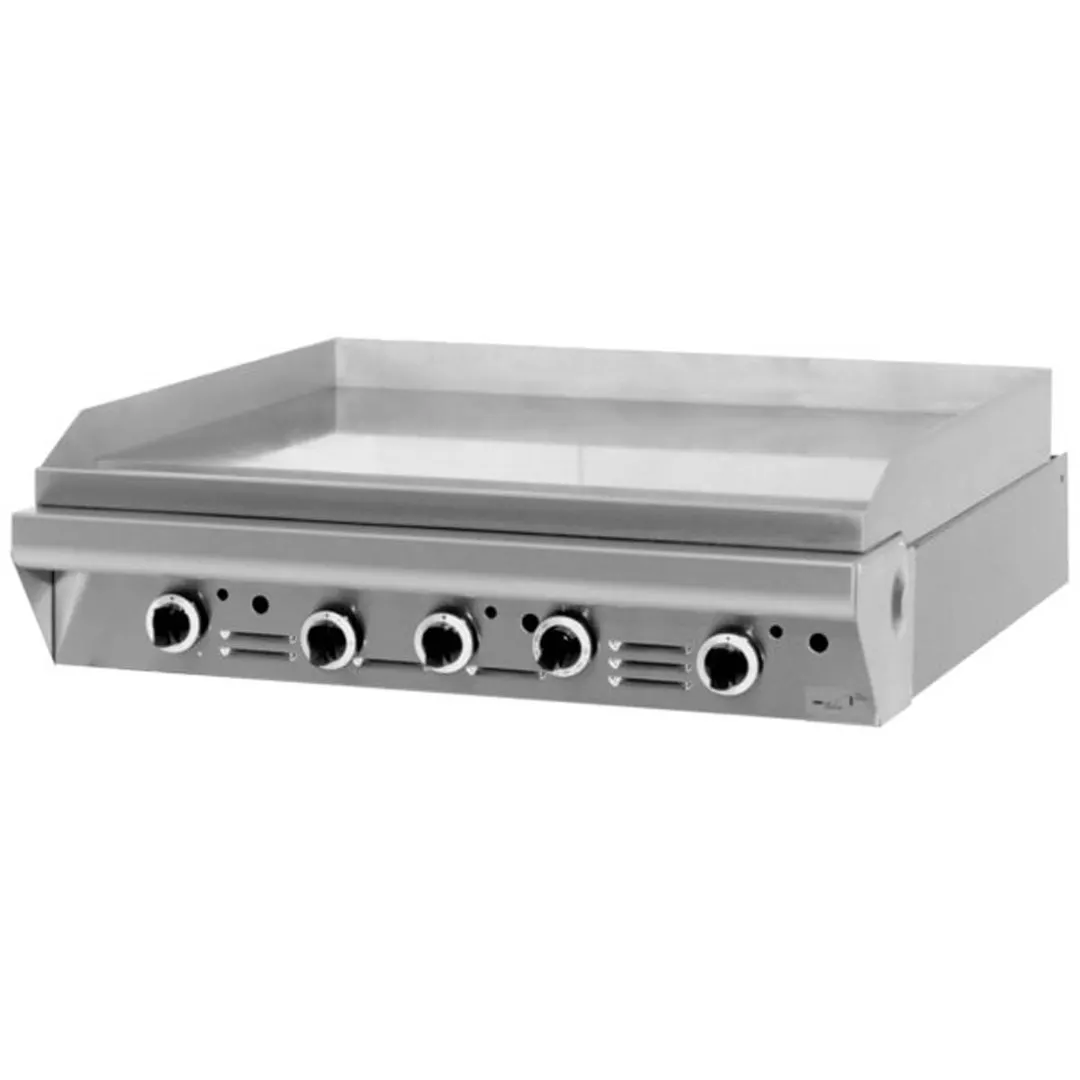

Master Series Heavy Duty Range, gas, 34", modular, griddle, thermostatic controls, stainless steel front & sides, 99,000 BTU, CSA Flame, CSA Star, NSF (Garland)
Images are for reference. Color, configuration, dimensions and what's included vary by model. See the spec sheet to confirm the exact details.
