Garland Master Series Heavy Duty Combination Top Range
Specifacations

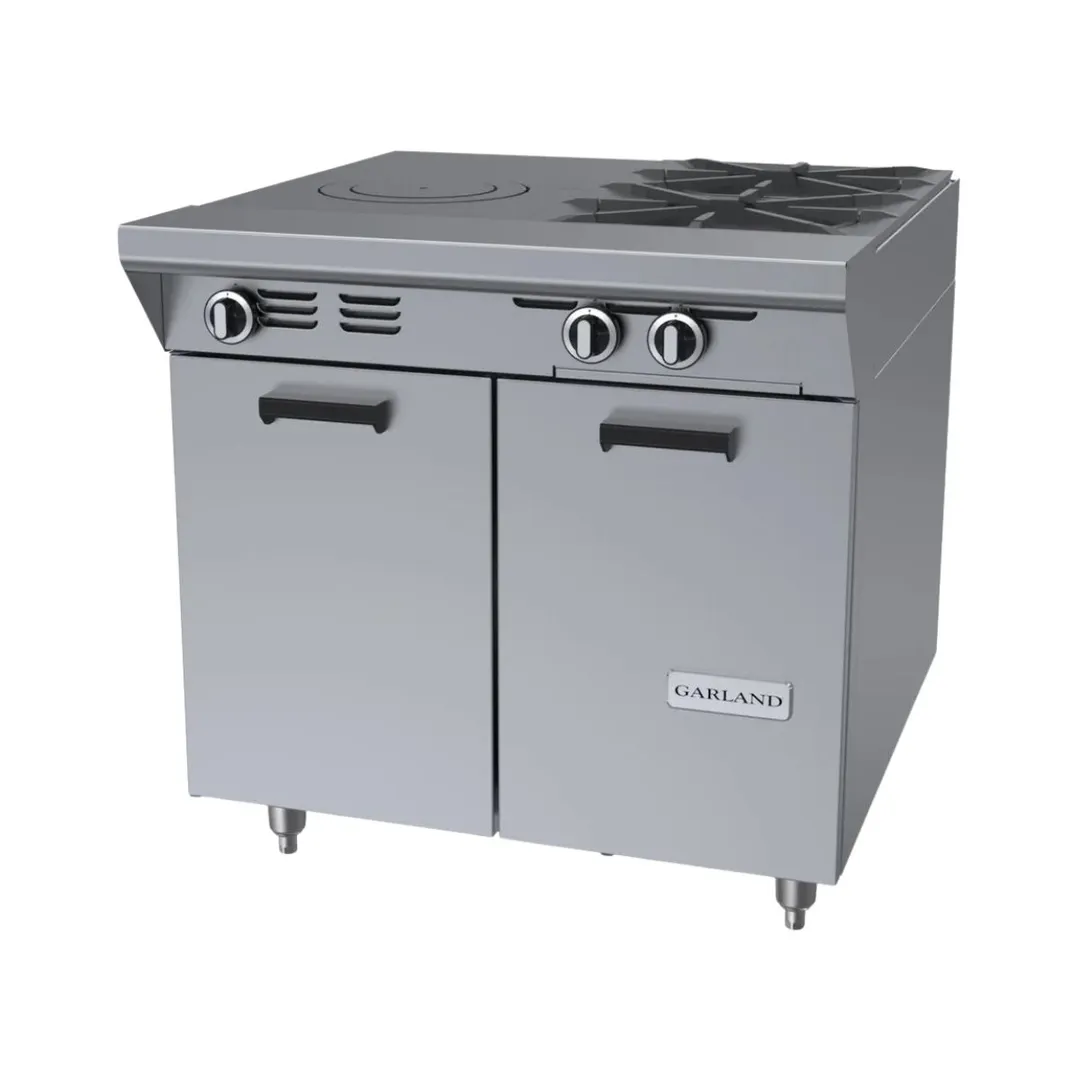

Heavy duty gas range with oven, Model MST54R, combination top consisting of one 17" (432mm) wide front fired spectro‑heat hot top, 40,000 BTU (11.71kW) on left and two 30,000 BTU (8.78kw) StarFire open burners. Sentry total flame failure protection for all burners.Heavy duty cast iron top grates/ring grates. 34" (864mm) wide x 38" (965mm) deep, including 7-1/2" (191mm) deep stainless steel front rail. Porcelain enamel oven with 40,000 BTU,(11.72kw), cast iron oven burner. Stainless steel front with black powder epoxy sides. Natural or Propane gas available. Also available with storage base w/ doors, suffix S, and modular top, suffix T. NOTE: Ranges suppled with casters must be installed with an approved restraining device.
Standard Features
- Standard Features:
- Stainless steel front; black powder coat epoxy sides
- 6" (152mm) chrome steel adj. legs
- 7-1/2" (191mm) stainless steel front rail
- One heavy duty cast iron front‑fired top on left
- Removable cast iron ring and lid with 3 individually contolled jet burners; 40,000 BTU (11.71kw) total, 30,000 BTU (8.78kW) for CSA approved propane models
- Two (2), 2-piece Starfire open burners w/removable heads rated 30,000 BTU (8.78kW) CE approved or 35,000 BTU (10.25kW) CSA approved models, (natural or propane gas)
- Removable ring grate bowl over each burner
- Cast iron top grates
- One piece stainless steel drip tray
- Piezo spark ignition for oven.
- 40,000 BTU (11.72kW) natural gas, 35,000 BTU (10.25kW) propane gas cast iron oven burner
- Fully porcelainized oven interior
- Electric Spark ignition on all pilots Suffix -E models
- Sentry total flame failure protection for all burners
From The Manufacturer
Images are for reference. Color, configuration, dimensions and what's included vary by model. See the spec sheet to confirm the exact details.
