The Imperial IHR-G24-2-M Heavy Duty Ranges Modular Units
Imperial IHR-G24-2-M Features
Open Burners
- Anti-clogging burner is 21% more efficient than other manufacturers’ heavy duty burners.
- 35,000 BTU/hr. (10 KW) output with a 7,000 BTU/hr. (2 KW) low simmer feature.
- One-piece venturi base has no gaskets.
- Venturi slopes down to the burner creating more efficient heating.
- Cast-iron burners remove and separate for cleaning.
- All stainless steel pilot tubing and solid brass top burner valves for a long service life
Grates
- Wavy grates create more heat transfer. Heat convects in waves for continual heat-to-pan contact
- Grates measure 12" x 14" (305 x 356 mm) and 18" x 14" (457 x 356 mm) depending on model.
- Cast-iron design features flame shaping center tube for more efficient heat transfer.
- Anti-clogging shield designed into the grate protects the pilot from grease and debris.
Hot and French Tops
- Heavy duty, highly polished plates provide even heat across entire hot top surface.
- 12” Hot Top is rated 30,000 BTU/hr. (9 KW) output and 18” Hot Top is rated 40,000 BTU/hr.(12 KW) output.
- Burners are located every 12" (305 mm) or 18" (457 mm). Each burner has one manual control.
- “U” shaped burners have aeration baffles between burners for quick recovery.
- Circular cast iron rings and lift off covers. Rings located directly over the burners.
- Pans can be placed directly on the intense open flame when covers are removed.
- One cast iron ring burner rated 35,000 BTU/hr. (10 KW) for 18" (457 mm) section, IHR-2FT models and 36" (914 mm) section, IHR-1FT models.
- Temperatures gradually reduce toward the rear of each top for simmering.
- Heavy duty tops measure 18" w x 28" d (457 w x 711 d mm), IHR-2FT models and 36" w x 28" d (914 w x 711 d mm) IHR-1FT models.
- Tops have cast-in heat retaining projections underneath to absorb and defuse heat.
- Each burner has one adjustable gas valve and one standing pilot. Manual controls for each burner.
Griddle Tops
- Highly polished griddle plate provide even heat across entire surface.
- 12” Griddle is rated 30,000 BTU/hr. (9 KW) output and 18” Griddle is rated 40,000 BTU/hr. (12 KW) output.
- Burners are located every 12" (305 mm) or 18" (457 mm). Each burner has one manual control.
- “U” shaped burners have aeration baffles between burners for quick recovery.
- Manual or thermostatic (GT36) controls are available.
- 4" (102 mm) wide grease gutter and large grease can with 1 gallon (3.8 L) capacity.
From The Manufacturer

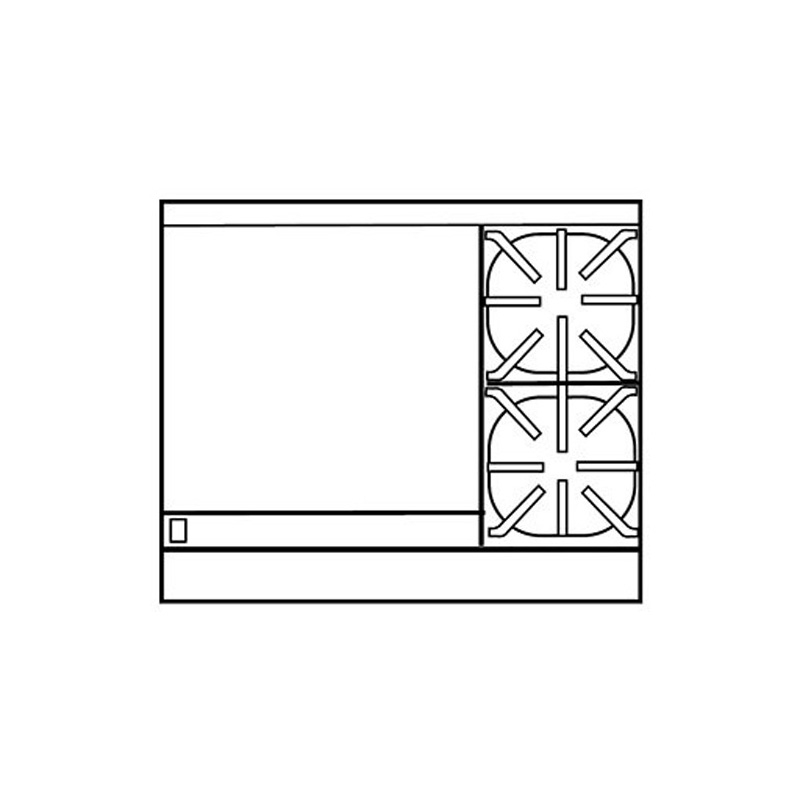

Spec Series Heavy Duty Range, gas, 36"W, modular, (2) open burners, cast iron "S" grates (standard), (1) 24"W griddle, 1" thick plate, 4"W grease gutter with 1 gallon can capacity, manual controls, removable crumb tray, stainless steel front, sides, 5"D landing ledge & backguard, 140,000 BTU, 41kW, cETLus, NSF
