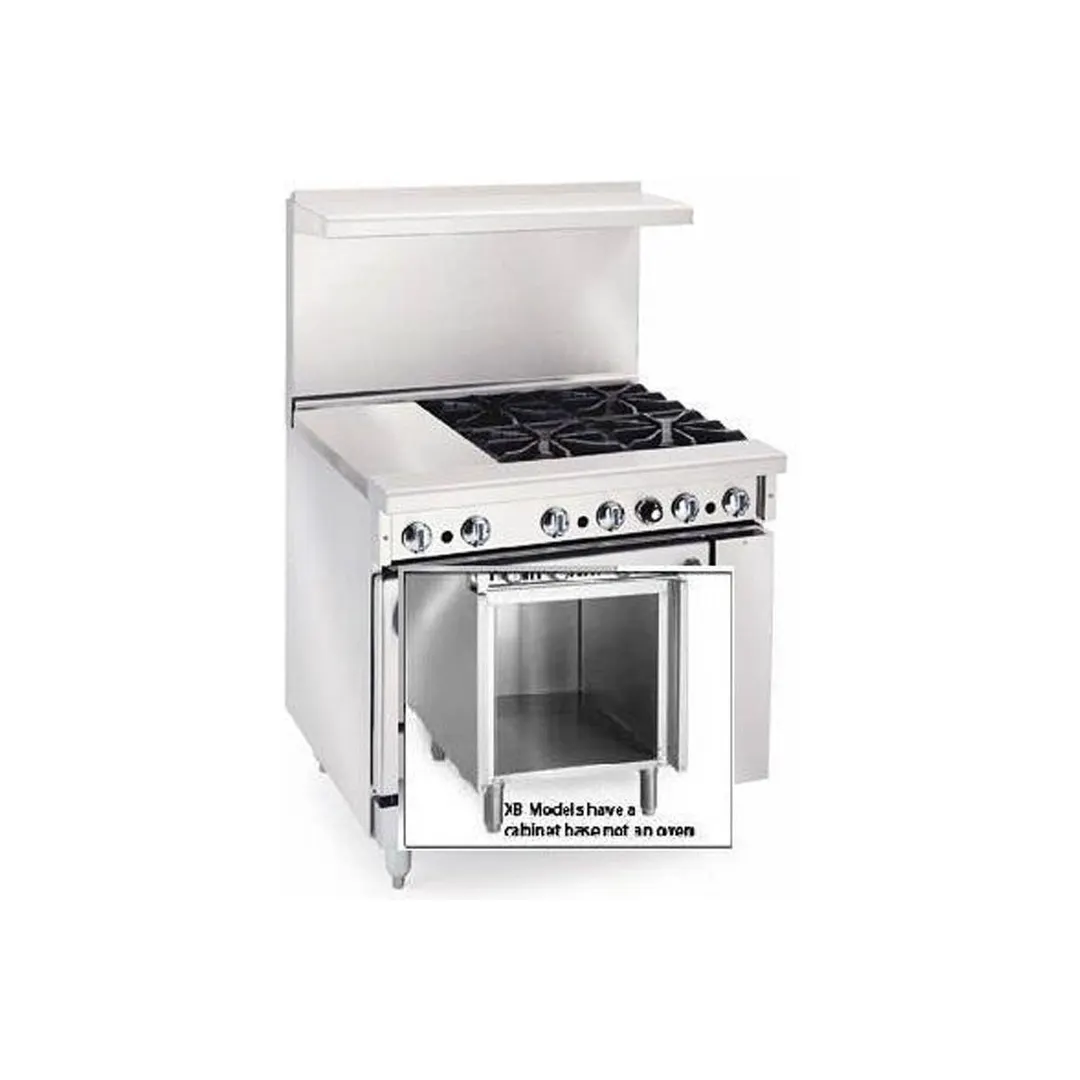

Imperial IR-4-G12-XB 36" Gas Restaurant Range w/ (4) Open Burners, 12" Griddle, (1) Cabinet Base, 148.000 BTU

SKU IMP-IR-4-G12-XB

$5,946.00/Each

Free Shipping

Imperial IR-4-G12-XB 36" Gas Restaurant Range w/ (4) Open Burners, 12" Griddle, (1) Cabinet Base, 148.000 BTU

The image above may not exactly represent the product

$5,946.00/Each

0% Interest for 30 Days with

View Comparelist

Works With

Free Shipping

Imperial IRCM-36 36" Gas Cheese Melter Broiler with Infra-Red Burner, 40.000 BTU

Free Shipping

Quick Shipping

Imperial IRCM-24 24" Gas Cheesemelter

Free Shipping

Quick Shipping

Imperial IRSB-36 36" Infrared Gas Salamander Broiler, 40,000 BTU

Financing Available

Small payments, big returns—view financing details now!

Resources

resources of Spec Sheet

resources of Middleby Financial Flyer

Middleby Financial Flyer

Imperial IR-4-G12-XB Specs

Manufacturer	Imperial
Model Number	IR-4-G12-XB
Weight	565 lbs
Width	36″
Depth	31.5″
Height	56.5″
Installation Type	free standing
Range Type	standard duty/restaurant range
Number of Burners	4 burners
Base Type	cabinet/storage base
Control Type	manual control
Top Configuration	burner & griddle
Plate Thickness	.750" = 3/4"
Exterior Finish	stainless steel front & sides
Top	(4) open burners, (1) 12" griddle
Vent	backriser with hi-shelf
Total BTU	148,000
Burner BTU	32,000
Griddle/Charbroiler BTU	20,000
Griddle/Charbroiler Location	left

View All Imperial Products >

Works With

Free Shipping

Imperial IRCM-36 36" Gas Cheese Melter Broiler with Infra-Red Burner, 40.000 BTU

Free Shipping

Quick Shipping

Imperial IRCM-24 24" Gas Cheesemelter

Free Shipping

Quick Shipping

Imperial IRSB-36 36" Infrared Gas Salamander Broiler, 40,000 BTU

Description

Reviews

The Imperial IR-4-G12-XB IR Series 36" Restaurant Ranges

Imperial IR-4-G12-XB Features

Open Burners

PyroCentric 32,000 BTU (9 KW) anti-clogging burner with a 7,000 BTU/hr. (2 KW) low simmer feature. Two rings of flame for even heating.
Cast iron PyroCentric burners are standard on all IR Series Ranges.
Burners are anti-clogging and lift-off and separate for easy cleaning. No gaskets or screws.
One standing pilot per burner for instant ignition.

Imperial IR-4-G12-XB 36 Restaurant Ranges, Chef's Deal

Imperial IR-4-G12-XB 36 Restaurant Ranges, Chef's Deal

Grates

Front grates measure 12" x 11" (305 x 279 mm). Back grates are 12" x 13" (305 x 330 mm).
Back grates are sized for positioning large stock pots directly over burner and feature a hot air dam.
Pots slide easily from section to section and onto landing ledge.
Grates are cast iron for a long service life.

Griddle

Highly polished 3/4" (19 mm) steel plate. 21" (533 mm) plate depth.
Burners have 20,000 (6 KW) BTU/hr. output with a heat deflector every 12" (305) for even heating.
3" (76 mm) wide grease trough and removable grease can for easy cleaning.

Imperial IR-4-G12-XB 36 Restaurant Ranges, Chef's Deal

Imperial IR-4-G12-XB 36 Restaurant Ranges, Chef's Deal

Standart Chef Depth Oven

Linear burner provides even heating throughout the 35,000 BTU (10 KW) oven.
Unique burner baffle distributes heat flow to provide even temperatures throughout the oven cavity.
Exclusive heat deflector reflects heat into the oven, not the floor. 100% safety pilot.
Interior is 26-1/2" w x 26" d x 14" h (673 x 660 x 356 mm) and accommodates 18" x 26" (457 x 660 mm) sheet pans left-to-right and front-to-back.
Porcelainized sides, rear, deck and door lining for easy cleaning. Heavy duty door hinge.
Stamped inner door liner provides extra strength while optimizing heat retention.
One chrome oven rack included.

Convection Ovens

30,000 BTU/hr. (9 KW) convection oven with 1/4 hp blower motor cooks products quickly and evenly with less shrinkage.
Convection oven interior dimensions 26-1/2" w x 22-1/2" d x 14" h (673 x 572 x 356 mm).
Three position switch for cooking or cool down. Fan shuts off automatically when door is open.
Porcelainized sides, rear, deck and door lining for easy cleaning. Heavy duty door hinge.
Three chrome oven racks included.

Imperial IR-4-G12-XB 36 Restaurant Ranges, Chef's Deal

From The Manufacturer

Pro Series Restaurant Range, gas, 36"W, (4) open burners, low simmer feature, cast iron grates, (1) 12" griddle, open cabinet base, 3"W grease trough, removable grease can & crumb tray, stainless steel front, sides, backguard, shelf, 3-1/2"D landing ledge, & kick plate, 6" legs with adjustable feet, 148,000 BTU, 43kW, NSF, CE, CSA Flame, CSA Star
