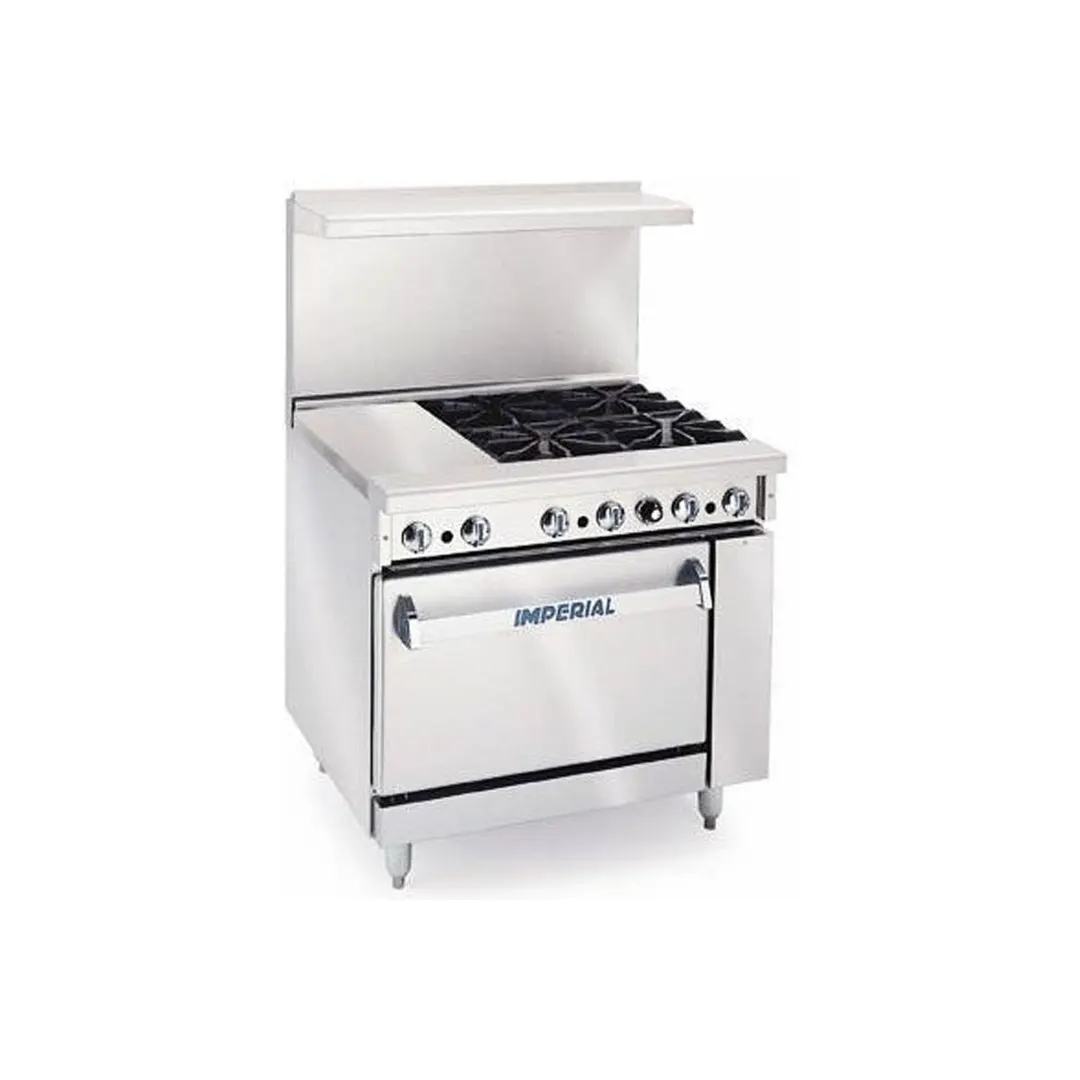

The Imperial IR-4-G12-C IR Series 36" Restaurant Ranges
Imperial IR-4-G12-C Features
Open Burners
- PyroCentric 32,000 BTU (9 KW) anti-clogging burner with a 7,000 BTU/hr. (2 KW) low simmer feature. Two rings of flame for even heating.
- Cast iron PyroCentric burners are standard on all IR Series Ranges.
- Burners are anti-clogging and lift-off and separate for easy cleaning. No gaskets or screws.
- One standing pilot per burner for instant ignition.
Grates
- Front grates measure 12" x 11" (305 x 279 mm). Back grates are 12" x 13" (305 x 330 mm).
- Back grates are sized for positioning large stock pots directly over burner and feature a hot air dam.
- Pots slide easily from section to section and onto landing ledge.
- Grates are cast iron for a long service life.
Griddle
- Highly polished 3/4" (19 mm) steel plate. 21" (533 mm) plate depth.
- Burners have 20,000 (6 KW) BTU/hr. output with a heat deflector every 12" (305) for even heating.
- 3" (76 mm) wide grease trough and removable grease can for easy cleaning.
Standart Chef Depth Oven
- Linear burner provides even heating throughout the 35,000 BTU (10 KW) oven.
- Unique burner baffle distributes heat flow to provide even temperatures throughout the oven cavity.
- Exclusive heat deflector reflects heat into the oven, not the floor. 100% safety pilot.
- Interior is 26-1/2" w x 26" d x 14" h (673 x 660 x 356 mm) and accommodates 18" x 26" (457 x 660 mm) sheet pans left-to-right and front-to-back.
- Porcelainized sides, rear, deck and door lining for easy cleaning. Heavy duty door hinge.
- Stamped inner door liner provides extra strength while optimizing heat retention.
- One chrome oven rack included.
Convection Ovens
- 30,000 BTU/hr. (9 KW) convection oven with 1/4 hp blower motor cooks products quickly and evenly with less shrinkage.
- Convection oven interior dimensions 26-1/2" w x 22-1/2" d x 14" h (673 x 572 x 356 mm).
- Three position switch for cooking or cool down. Fan shuts off automatically when door is open.
- Porcelainized sides, rear, deck and door lining for easy cleaning. Heavy duty door hinge.
- Three chrome oven racks included.
From The Manufacturer
Pro Series Restaurant Range, gas, 36"W, (4) open burners, low simmer feature, cast iron grates, (1) 12" griddle, convection oven, 1/2 HP blower motor, porcelain interior, (3) chrome racks, 3"W grease trough, removable grease can & crumb tray, stainless steel front, sides, backguard, shelf, 3-1/2"D landing ledge, & kick plate, 6" legs with adjustable feet, 178,000 BTU, 52kW, 120v/1-ph, 6.0 amps, NSF, CE, CSA Flame, CSA Star
