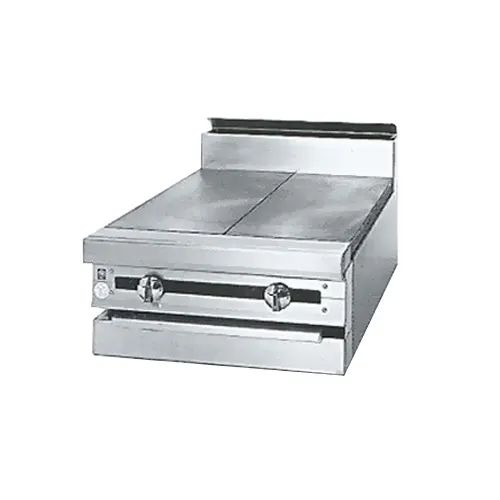

The Jade JMRH-4HT Modular Hot Top Range

Why Use Jade Titan Series?

Each Titan Heavy-Duty range features a hand-crafted, solid, all-welded frame for incredible strength & durability. All materials used in the production of Jade Titan™ Ranges are chosen to achieve the longest lifespan, allowing Jade Range to offer a 2-year parts and labor warranty within the US & Canada.

Jade JMRH-4HT Standart Features

JMRH-4HT: 48" Four hot top section
Highly polished reinforced cast iron plates
One 35,000 BTU/hr burner per section
Variable size multi-point gas connection—see utility information for details
14 gauge all welded body construction
Stainless steel gas tubing throughout
Stainless steel front, sides and stub back
Stainless steel 6" plate shelf
3/4" gas regulator (shipped loose, must be installed for proper operation)

Jade JMRH-4HT Specification

Heavy duty modular hot top range. To be model # JMRH manufactured by Jade Range. Top sections to consist of highly polished reinforced cast iron plates. Provide with 35,000 BTU/hr. per burner section, controlled by infinite gas valves. To have 14 gauge all welded body with stainless steel front and sides. All gas tubing to be stainless steel throughout. To have 6" stainless steel adjustable legs.

From The Manufacturer

Titan™ Heavy Duty Range, gas, 48", modular, (4) 12" hot tops, infinite controls, stainless steel 6" plate shelf, front, sides & stub back, 140,000 BTU, CSAus, NSF

Manufacturer	Jade
Model Number	JMRH-4HT
Weight	540 lbs
Width	48″
Depth	36.25″
Height	36.5″
Installation Type	free standing
Range Type	heavy duty/modular range
Base Type	stand/legs
Control Type	manual control
Top Configuration	hot top
Exterior Finish	all stainless steel exterior
Top	(4) hot tops
Certifications	NSF, CSAus
Total BTU	140,000
