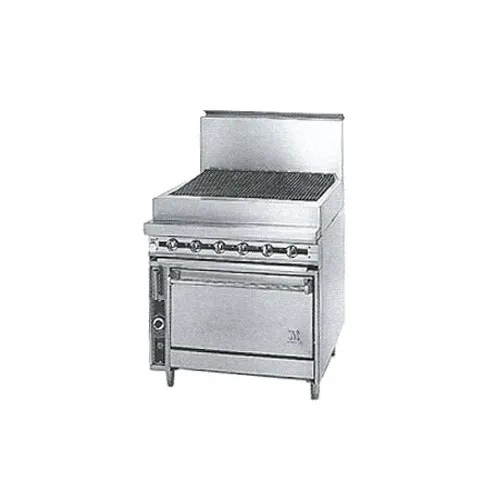

The Jade JTRH-48B Range Match Broiler
Why Use Jade Titan Series?
Each Titan Heavy-Duty range features a hand-crafted, solid, all-welded frame for incredible strength & durability. All materials used in the production of Jade Titan™ Ranges are chosen to achieve the longest lifespan, allowing Jade Range to offer a 2-year parts and labor warranty within the US & Canada.
Jade JTRH-48B Standart Features
- JTRH-48B: 48" charbroiler
- 14 gauge all welded body construction
- Stainless steel front, top, sides and stub back
- Heavy duty cast iron burner radiants
- One 15,000 BTU/hr. burner every 6" broiler
- Variable size multi-point gas connection—see utility information for details
- Infinite control manual gas valves at each burner for precise heat control
- 12 gauge all welded firebox construction
- Two separate 14 gauge steel drip pans to control flare ups
- Stainless steel 6" plate shelf
- Stainless steel cabinet interior and exterior
- Stainless steel gas tubing throughout
- Stainless steel adjustable 6" legs
- Stainless steel tray bed
- 3/4" gas regulator (shipped loose, must be installed for proper operation)
Jade JTRH-48B Specification
Heavy duty range match charbroiler. To be model # JTRH manufactured by Jade Range. Furnished with 14 gauge all welded body construction and stainless steel front, top, sides, bottom, back, stub back. Provide with heavy duty cast iron top grates and burner radiants. To have one individually controlled 15,000 BTU/hr. burner for every 6" of broiler. Provide 12 gauge firebox with all welded construction. Furnish two separate 14 gauge drip pans. To have 6" stainless steel adjustable legs.
From The Manufacturer
Images are for reference. Color, configuration, dimensions and what's included vary by model. See the spec sheet to confirm the exact details.
