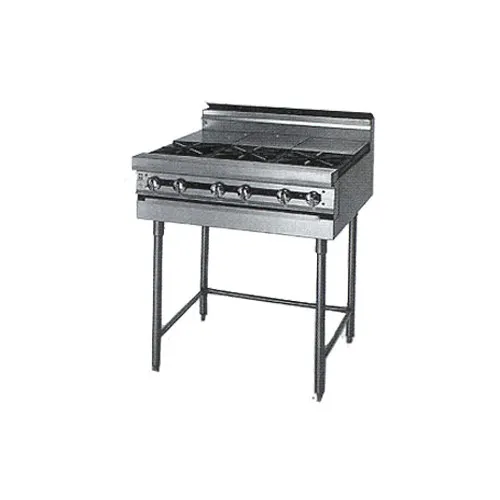

The Jade JMRH-5ST Modular Split Top Range

Why Use Jade Titan Series?

Each Titan Heavy-Duty range features a hand-crafted, solid, all-welded frame for incredible strength & durability. All materials used in the production of Jade Titan™ Ranges are chosen to achieve the longest lifespan, allowing Jade Range to offer a 2-year parts and labor warranty within the US & Canada.

Jade JMRH-5ST Standart Features

JMRH-5ST: 60" Five split top section
Individual cast iron top grates with open top front and polished hot top rear
15,000 BTU/hr per hot top section
35,000 BTU/hr per open burner section
Variable size multi-point gas connection—see utility information for details
14 gauge stainless steel all welded body construction
Stainless steel gas tubing throughout
Stainless steel front, sides, tray bed and stub back
Stainless steel 6" plate shelf
3/4" gas regulator (shipped loose, must be installed for proper operation)

Jade JMRH-5ST Specification

Heavy duty modular split top range. To be model # JMRH manufactured by Jade Range. Top sections to consist of cast iron top grates, with open top front and polished top rear. Provide with 30,000 BTU/hr. per open burner section and 15,000 BTU/hr. per hot top section, controlled by infinite gas valves. To have 14 gauge all welded body with stainless steel front and sides. All gas tubing to be stainless steel throughout. To have 6" stainless steel adjustable legs.

From The Manufacturer

Titan™ Heavy Duty Range, gas, 60", modular, (5) 35,000 BTU open front burners, (1) 15,000 BTU rear hot top , infinite controls, stainless steel 6" plate shelf, front, sides, stub back & tray bed, 250,000 BTU, CSAus, NSF

Manufacturer	Jade
Model Number	JMRH-5ST
Weight	695 lbs
Width	60″
Depth	36.25″
Height	36.5″
Installation Type	free standing
Range Type	heavy duty/modular range
Number of Burners	5 burners
Base Type	stand/legs
Control Type	manual control
Top Configuration	burner & hot top
Exterior Finish	all stainless steel exterior
Top	(5) open burners front, (5) hot tops rear
Certifications	NSF, CSAus
Total BTU	250,000
Burner BTU	35,000

	Jade JMRH-5ST 60" Gas Heavy Duty Range w/ (5) Open Burners, (5) Hot Tops, Modular & Open Legs Base, 250.000 BTU	Jade JTRH-5ST 60" Gas Heavy Duty Range w/ (5) Open Burners, (5) Hot Tops, Cabinet Base, 250.000 BTU	Jade JMRH-60G 60" Gas Heavy Duty Range, 60" Full Griddle w/ Manual Controls, Modular & Open Legs Base, 175.000 BTU	Jade JMRH-60B 60" Gas Heavy Duty Range w/ 60" Full Charbroiler, Modular & Open Legs Base, 150.000 BTU	Jade JMRH-5HT 60" Gas Heavy Duty Range w/ (5) Hot Tops, Modular & Open Legs Base, 175.000 BTU	Jade JMRH-10 60" Gas Heavy Duty Range w/ (10) Open Burners, Modular & Open Legs w/ Crossrails, 350.000 BTU	Jade JMRH-4ST 48" Gas Heavy Duty Range w/ (4) Open Burners, (4) Hot Tops, Modular & Open Legs Base, 200.000 BTU	Jade JMRH-3ST 36" Gas Heavy Duty Range w/ (3) Open Burners, (3) Hot Tops, Modular & Open Legs Base, 105.000 BTU	Montague Company C60-5F/RB60-SCRR 60" Gas Heavy Duty Range w/ (5) Open Burners, Self-Contained Refrigerated Drawer, 150.000 BTU Free Shipping
Price	Price	Price	Price	Price	Price	Price	Price	Price	Price
Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingFree Shipping
Burner BTU	Burner BTU35,000	Burner BTU35,000	Burner BTU-	Burner BTU-	Burner BTU-	Burner BTU35,000	Burner BTU35,000	Burner BTU35,000	Burner BTU30,000
Total BTU	Total BTU141.000 - 400.500	Total BTU141.000 - 400.500	Total BTU141.000 - 400.500	Total BTU141.000 - 400.500	Total BTU141.000 - 400.500	Total BTU141.000 - 400.500	Total BTU141.000 - 400.500	Total BTU141.000 - 400.500	Total BTU141.000 - 400.500
Certifications	CertificationsNSF, CSAus	CertificationsNSF, CSAus	CertificationsNSF, CSAus	CertificationsNSF, CSAus	CertificationsNSF, CSAus	CertificationsNSF, CSAus	CertificationsNSF, CSAus	CertificationsNSF, CSAus	CertificationscULus, UL EPH Classified, ETL-Sanitation
WIDTH (SIDE - SIDE)	WIDTH (SIDE - SIDE)60	WIDTH (SIDE - SIDE)60	WIDTH (SIDE - SIDE)60	WIDTH (SIDE - SIDE)60	WIDTH (SIDE - SIDE)60	WIDTH (SIDE - SIDE)60	WIDTH (SIDE - SIDE)48	WIDTH (SIDE - SIDE)36	WIDTH (SIDE - SIDE)60
Manufacturer	ManufacturerJade	ManufacturerJade	ManufacturerJade	ManufacturerJade	ManufacturerJade	ManufacturerJade	ManufacturerJade	ManufacturerJade	ManufacturerMontague Company
Exterior Finish	Exterior Finishall stainless steel exterior	Exterior Finishstainless steel front & sides	Exterior Finishall stainless steel exterior	Exterior Finishall stainless steel exterior	Exterior Finishall stainless steel exterior	Exterior Finishall stainless steel exterior	Exterior Finishall stainless steel exterior	Exterior Finishall stainless steel exterior	Exterior Finishall stainless steel exterior
Top	Top(5) open burners front, (5) hot tops rear	Top(5) open burners front, (5) hot tops rear	Top(1) griddle	Top(1) charbroiler	Top(5) hot tops	Top(10) open burners	Top(4) open burners, (4) 12" hot tops	Top(3) open burners front, (3) hot tops rear	Top(5) open burners front, cold pan rear
Base Type	Base Typestand/legs	Base Typecabinet/storage base	Base Typestand/legs	Base Typestand/legs	Base Typestand/legs	Base Typestand/legs	Base Typestand/legs	Base Typestand/legs	Base Typerefrigerated drawer
Range Type	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range
Width	Width60"	Width60"	Width60"	Width60"	Width60"	Width60"	Width48"	Width36"	Width60"
Top Configuration	Top Configurationburner & hot top	Top Configurationburner & hot top	Top Configurationgriddle	Top Configurationcharbroiler	Top Configurationhot top	Top Configurationburner	Top Configurationburner & hot top	Top Configurationburner & hot top	Top Configurationburner
Installation Type	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing
Number of Burners	Number of Burners5 burners	Number of Burners5 burners	Number of Burners-	Number of Burners-	Number of Burners-	Number of Burners10 burners	Number of Burners4 burners	Number of Burners3 burners	Number of Burners5 burners
Control Type	Control Typemanual control	Control Typemanual control	Control Typemanual control	Control Typemanual control	Control Typemanual control	Control Typemanual control	Control Typemanual control	Control Typemanual control	Control Typemanual control
Griddle/Charbroiler BTU	Griddle/Charbroiler BTU-	Griddle/Charbroiler BTU-	Griddle/Charbroiler BTU35,000	Griddle/Charbroiler BTU15,000	Griddle/Charbroiler BTU-	Griddle/Charbroiler BTU-	Griddle/Charbroiler BTU-	Griddle/Charbroiler BTU-	Griddle/Charbroiler BTU-
Plate Thickness	Plate Thickness-	Plate Thickness-	Plate Thickness1.000" = 1"	Plate Thickness-	Plate Thickness-	Plate Thickness-	Plate Thickness-	Plate Thickness-	Plate Thickness-

Manufacturer	Jade
Model Number	JMRH-5ST
Weight	695 lbs
Width	60″
Depth	36.25″
Height	36.5″
Installation Type	free standing
Range Type	heavy duty/modular range
Number of Burners	5 burners
Base Type	stand/legs
Control Type	manual control
Top Configuration	burner & hot top
Exterior Finish	all stainless steel exterior
Top	(5) open burners front, (5) hot tops rear
Certifications	NSF, CSAus
Total BTU	250,000
Burner BTU	35,000

	Jade JMRH-5ST 60" Gas Heavy Duty Range w/ (5) Open Burners, (5) Hot Tops, Modular & Open Legs Base, 250.000 BTU	Jade JTRH-5ST 60" Gas Heavy Duty Range w/ (5) Open Burners, (5) Hot Tops, Cabinet Base, 250.000 BTU	Jade JMRH-60G 60" Gas Heavy Duty Range, 60" Full Griddle w/ Manual Controls, Modular & Open Legs Base, 175.000 BTU	Jade JMRH-60B 60" Gas Heavy Duty Range w/ 60" Full Charbroiler, Modular & Open Legs Base, 150.000 BTU	Jade JMRH-5HT 60" Gas Heavy Duty Range w/ (5) Hot Tops, Modular & Open Legs Base, 175.000 BTU	Jade JMRH-10 60" Gas Heavy Duty Range w/ (10) Open Burners, Modular & Open Legs w/ Crossrails, 350.000 BTU	Jade JMRH-4ST 48" Gas Heavy Duty Range w/ (4) Open Burners, (4) Hot Tops, Modular & Open Legs Base, 200.000 BTU	Jade JMRH-3ST 36" Gas Heavy Duty Range w/ (3) Open Burners, (3) Hot Tops, Modular & Open Legs Base, 105.000 BTU	Montague Company C60-5F/RB60-SCRR 60" Gas Heavy Duty Range w/ (5) Open Burners, Self-Contained Refrigerated Drawer, 150.000 BTU Free Shipping
Price	Price	Price	Price	Price	Price	Price	Price	Price	Price
Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingFree Shipping
Burner BTU	Burner BTU35,000	Burner BTU35,000	Burner BTU-	Burner BTU-	Burner BTU-	Burner BTU35,000	Burner BTU35,000	Burner BTU35,000	Burner BTU30,000
Total BTU	Total BTU141.000 - 400.500	Total BTU141.000 - 400.500	Total BTU141.000 - 400.500	Total BTU141.000 - 400.500	Total BTU141.000 - 400.500	Total BTU141.000 - 400.500	Total BTU141.000 - 400.500	Total BTU141.000 - 400.500	Total BTU141.000 - 400.500
Certifications	CertificationsNSF, CSAus	CertificationsNSF, CSAus	CertificationsNSF, CSAus	CertificationsNSF, CSAus	CertificationsNSF, CSAus	CertificationsNSF, CSAus	CertificationsNSF, CSAus	CertificationsNSF, CSAus	CertificationscULus, UL EPH Classified, ETL-Sanitation
WIDTH (SIDE - SIDE)	WIDTH (SIDE - SIDE)60	WIDTH (SIDE - SIDE)60	WIDTH (SIDE - SIDE)60	WIDTH (SIDE - SIDE)60	WIDTH (SIDE - SIDE)60	WIDTH (SIDE - SIDE)60	WIDTH (SIDE - SIDE)48	WIDTH (SIDE - SIDE)36	WIDTH (SIDE - SIDE)60
Manufacturer	ManufacturerJade	ManufacturerJade	ManufacturerJade	ManufacturerJade	ManufacturerJade	ManufacturerJade	ManufacturerJade	ManufacturerJade	ManufacturerMontague Company
Exterior Finish	Exterior Finishall stainless steel exterior	Exterior Finishstainless steel front & sides	Exterior Finishall stainless steel exterior	Exterior Finishall stainless steel exterior	Exterior Finishall stainless steel exterior	Exterior Finishall stainless steel exterior	Exterior Finishall stainless steel exterior	Exterior Finishall stainless steel exterior	Exterior Finishall stainless steel exterior
Top	Top(5) open burners front, (5) hot tops rear	Top(5) open burners front, (5) hot tops rear	Top(1) griddle	Top(1) charbroiler	Top(5) hot tops	Top(10) open burners	Top(4) open burners, (4) 12" hot tops	Top(3) open burners front, (3) hot tops rear	Top(5) open burners front, cold pan rear
Base Type	Base Typestand/legs	Base Typecabinet/storage base	Base Typestand/legs	Base Typestand/legs	Base Typestand/legs	Base Typestand/legs	Base Typestand/legs	Base Typestand/legs	Base Typerefrigerated drawer
Range Type	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range
Width	Width60"	Width60"	Width60"	Width60"	Width60"	Width60"	Width48"	Width36"	Width60"
Top Configuration	Top Configurationburner & hot top	Top Configurationburner & hot top	Top Configurationgriddle	Top Configurationcharbroiler	Top Configurationhot top	Top Configurationburner	Top Configurationburner & hot top	Top Configurationburner & hot top	Top Configurationburner
Installation Type	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing
Number of Burners	Number of Burners5 burners	Number of Burners5 burners	Number of Burners-	Number of Burners-	Number of Burners-	Number of Burners10 burners	Number of Burners4 burners	Number of Burners3 burners	Number of Burners5 burners
Control Type	Control Typemanual control	Control Typemanual control	Control Typemanual control	Control Typemanual control	Control Typemanual control	Control Typemanual control	Control Typemanual control	Control Typemanual control	Control Typemanual control
Griddle/Charbroiler BTU	Griddle/Charbroiler BTU-	Griddle/Charbroiler BTU-	Griddle/Charbroiler BTU35,000	Griddle/Charbroiler BTU15,000	Griddle/Charbroiler BTU-	Griddle/Charbroiler BTU-	Griddle/Charbroiler BTU-	Griddle/Charbroiler BTU-	Griddle/Charbroiler BTU-
Plate Thickness	Plate Thickness-	Plate Thickness-	Plate Thickness1.000" = 1"	Plate Thickness-	Plate Thickness-	Plate Thickness-	Plate Thickness-	Plate Thickness-	Plate Thickness-

Jade JMRH-5ST 60" Gas Heavy Duty Range w/ (5) Open Burners, (5) Hot Tops, Modular & Open Legs Base, 250.000 BTU
