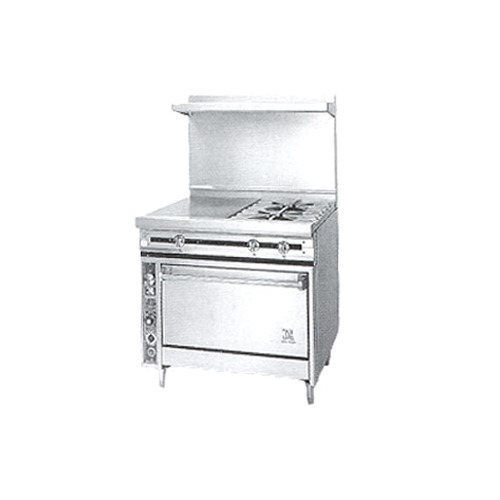

The Jade JTRH-18G-1HT-36C 36" Titan Range

Why Use Jade Titan Series?

Each Titan Heavy-Duty range features a hand-crafted, solid, all-welded frame for incredible strength & durability. All materials used in the production of Jade Titan™ Ranges are chosen to achieve the longest lifespan, allowing Jade Range to offer a 2-year parts and labor warranty within the US & Canada.

Jade JTRH-18G-1HT-36C Standart Features

Variable size multi-point gas connection—see utility information for details
Stainless steel oven interior (bottom and sides removable without tools on standard oven)
Two chrome plated oven racks (wires curled and welded around main frame with no sharp ends)
Oven control located in cool zone
One stainless steel pilot per burner
Stainless steel gas tubing throughout
Stainless steel front, sides and stub back
Stainless steel 6" plate shelf
Stainless steel adjustable 6" legs
Stainless steel tray bed

Jade JTRH-18G-1HT-36C Specification

Heavy duty combination range, with oven below. To be model #JTRH manufactured by Jade Products, LLC. Open top section to have cast iron 35,000 BTU/hr. burners with individual lift-off steel top grates. Hot tops to have cast iron even heat top with one 35,000 BTU/hr. burner per section. Griddles are to have high polished 1" steel plate with (35,000 BTU/hr) (30,000 BTU/hr) burners controlled by infinite gas valves (thermostat). Split tops to have one piece cast iron top with open burner front polished hot top rear. Open burner to be 30,000 BTU/hr. Rear hot top burner to be 15,000 BTU/hr.

From The Manufacturer

Titan™ Heavy Duty Range, gas, 36", (1) 18" hot top, (1) 18" griddle, manual controls (NO TEMPERATURE THERMOSTAT), convection oven, (2) chrome plated racks, stainless steel oven liner, 6" plate shelf, front, sides, stub back & bottom, 6" adjustable legs, 115v/60/1-ph, 4.4 amps, 1/4 HP, 100,000 BTU, CSAus, NSF

Manufacturer	Jade
Model Number	JTRH-18G-1HT-36C
Weight	780 lbs
Width	36″
Depth	38″
Height	36.5″
Installation Type	free standing
Range Type	heavy duty/modular range
Base Type	oven base
Oven Type	convection oven
Number Of Ovens	1
Control Type	manual control
Top Configuration	hot top & griddle
Plate Thickness	1.000" = 1"
Exterior Finish	all stainless steel exterior
Top	(1) 18" griddle, (1) 18" hot top
Certifications	NSF, CSAus
Total BTU	100,000
Oven BTU	30,000
Griddle/Charbroiler BTU	35,000
Griddle/Charbroiler Location	left
