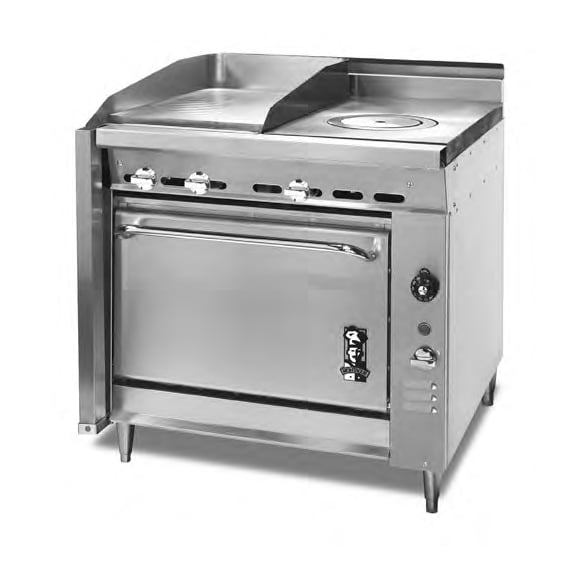

Montague Company V136-12 Heavy Duty Gas Range With Convection Oven
Overview
The V136-12,(1) 18" griddle (L), 3/4" thick, manual controls (1) 18" ring/cover hot top (R), convection oven base, stainless steel front & 4" flue riser, black sides, 6" high adjustable stainless steel legs, 105,000 BTU, cETLus, CE.*The product includes indirect-fired 40,000 BTU/hr convection oven with counterweighted door, porcelainized steel interior, five-position rack guides and three wire pan racks standard.
Griddle
- One 18” wide x 28” deep (457 x 711mm)
- Positioned left
- 3/4” (19mm) thick precision-ground steel cook surface
- 4” (102mm) high backsplash and tapered side-splashes
- 2-5/8” (67mm) wide grease trough pitched to grease receptacle
- Built-in 2-1/8” (54mm) hanging grease receptacle
- Two 15,000 BTU/hr gas burners with standing pilots & gas control valves
- Adjusting bolts for changing griddle forward pitch
French-Style Hot Top
- One 18” wide x 31” deep (457 x 787mm)
- Positioned right
- Heavy-duty cast iron precision-ground plate
- Front-positioned removable ring & cover
- Front-fired, banjo-type 35,000 BTU/hr burner
- Heat transfer studs cast in plate bottom
- 2” (51mm) side and front flanges isolate heat under plate
- Insulating partition between top sections
- Sloped, brick-lined flues for better heat transfer
- Drip pan positioned under burners
Montague Company V136-12 Standard Features
- 26-5/8” wide x 22-1/4” deep x 15” high (676 x 565 x 381mm) cooking compartment
- Muffled, indirect fired design with blower, for fast even cooking
- Heavy duty counterweighted oven door — no springs
- Five position adjustable nickel-plated rack supports, with three racks standard
- Interior panels and door porcelain lined for long life & easy cleaning
- Low-to-500°F (260°C) thermostat mounted in insulated cool zone
- 40,000 BTU/hr cast iron burner with automatic ignition safety pilot
- 6’ (1829mm) cord with 3-prong plug (grounding NEMA 5-15P)
Montague Company V136-12 Specifications
- Base Style/Type : With Convection Oven
- Burners : 4
- BTU/hr (kW) : 105,000 (30.8)
- Shipping Weight: 660 lbs (299 kg)
- Other Details : See spec. sheet
From The Manufacturer
Legend™ Heavy Duty Range, gas, 36", (1) 18" griddle (L), 3/4" thick, manual controls (1) 18" ring/cover hot top (R), convection oven base, stainless steel front & 4" flue riser, black sides, 6" high adjustable stainless steel legs, 105,000 BTU, NSF, cETLus, CE
