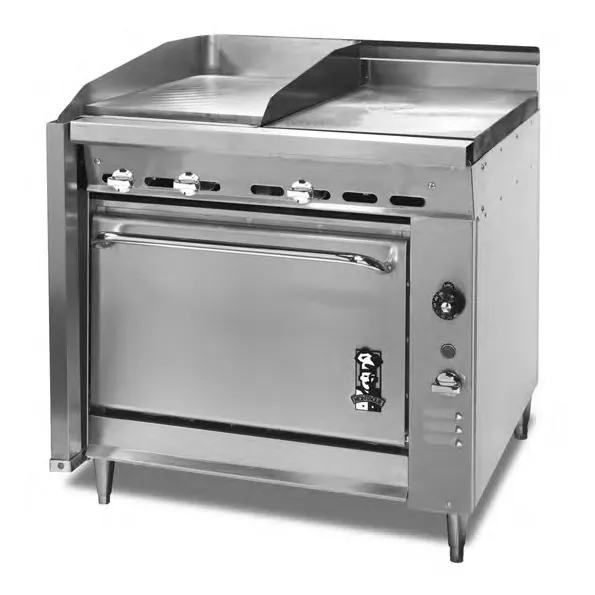

Montague Company 136-12E 36" Gas Heavy Duty Range w/ (1) Hot Top, 18" Griddle, Standard Oven, 110.000 BTU

Overview

The 136-12E, with front-vented 40,000 BTU/hr conventional oven with counterweighted door, porcelainized steel interior, three-position rack guides and one wire pan rack standard.

Positioned Left Griddle

• 3/4” (19mm) thick precision-ground steel cook surface
• 4” (102mm) high backsplash and tapered side-splashes
• 2-5/8” (67mm) wide grease trough pitched to grease receptacle
• Built-in 2-1/8” (54mm) hanging grease receptacle
• Two 15,000 BTU/hr gas burners with standing pilots & gas control valves
• Adjusting bolts for changing griddle forward pitch

Even-Heat Hot Top

• Heavy-duty cast iron precision-ground plate with:
• Two cast iron 20,000 BTU/hr burners
• Heat transfer studs cast in plate bottoms
• 2” (51mm) side and front flanges isolate heat under plates
• Insulating partition between top sections

Montague Company 136-12E Standard Oven Features

• 26-5/8” wide x 28” deep x 15” (676 x 711 x 381mm) high cooking compartment
• Accepts 18” x 26” (457 x 660mm) pans sideways or lengthwise
• Front venting oven design for more even cooking
• Heavy duty counterweighted oven door — no springs!
• Three position adjustable nickel-plated rack supports, with one rack standard
• Interior panels and door porcelain lined for long life & easy cleaning
• Low-to-500°F (260°C) thermostat mounted in insulated cool zone
• 40,000 BTU/hr cast iron burner with automatic ignition safety pilot

Montague Company 136-12E Specifications

• Base Style/Type : With Standard Oven
• Burners : 5
• BTU/hr (kW) : 110,000 (32.2)
• Shipping Weight: 636 lbs (288 kg)
• Other Details : See spec. sheet
