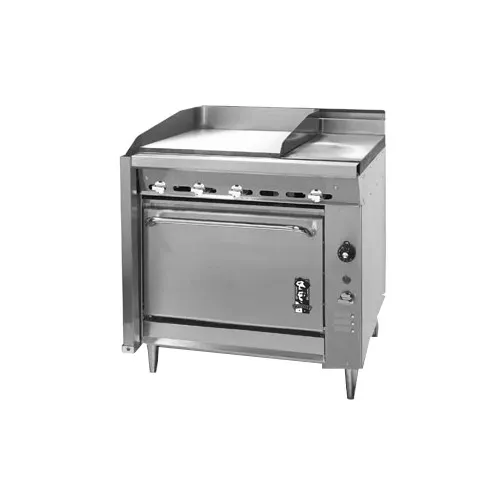

Montague Company V136-0G 36" Gas Heavy Duty Range w/ 24" Griddle, (1) Gradient Heat Hot Top, Convection Oven, 103.500 BTU

Overview

The V136-0G,(1) 24" griddle (L), 3/4" thick, manual control, (1) 12" gradient heat hot top (R), convection oven base, stainless steel front & 4" flue riser, black sides, 6" high adjustable stainless steel legs, 103,500 BTU, cETLus, CE. *The product includes indirect-fired 40,000 BTU/hr convection oven with counterweighted door, porcelainized steel interior, five-position rack guides and three wire pan racks standard.

Griddle Tops

• One 24” wide x 28” deep (610 x 711mm)
• Positioned left
• 3/4” (19mm) thick precision-ground steel cook surface
• 4” (51mm) high backsplash and tapered side-splashes
• 2-5/8” (67mm) wide front grease trough pitched to grease receptacle
• Built-in 2-1/8” (54mm) hanging grease receptacle
• Three 15,000 BTU/hr gas burners with standing pilots & gas control valves
• Adjusting bolts for changing griddle forward pitch

Hot Top

• One 12” wide x 31” deep (305 x 787mm)
• Positioned right
• Heavy cast iron precision ground plate
• Cast iron front fired GRADIENT HEAT 18,500 BTU/hr burner
• Heat transfer studs cast in plate bottom
• 2” (51mm) side and front flanges to isolate heat under plate
• Insulating partition between top sections

Montague Company V136-0G Standard Features

• 26-5/8” wide x 22-1/4” deep x 15” high (676 x 565 x 381mm) cooking compartment
• Muffled, indirect fired design with blower, for fast even cooking
• Heavy duty counterweighted oven door — no springs
• Five position adjustable nickel-plated rack supports, with three racks standard
• Interior panels and door porcelain lined for long life & easy cleaning
• Low-to-500°F (260°C) thermostat mounted in insulated cool zone
• 40,000 BTU/hr cast iron burner with automatic ignition safety pilot
• 6’ (1829mm) cord with 3-prong plug (grounding NEMA 5-15P)

Montague Company V136-0G Specifications

• Base Style/Type : With Convection Oven
• Burners : 5
• BTU/hr (kW) : 103,500 (30.3)
• Shipping Weight: 700 lbs (317 kg)
• Other Details : See spec. sheet
