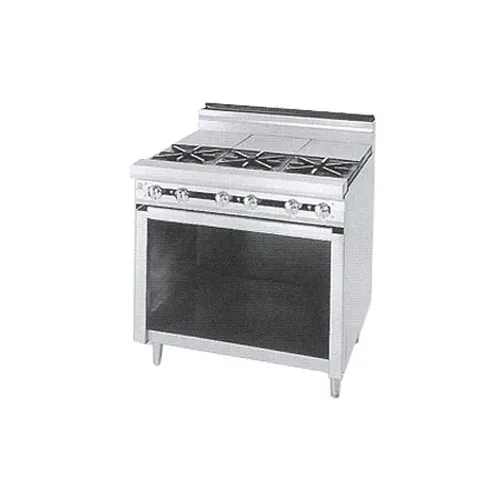

The Jade JTRH-4ST Cabinet Base Split Top Range

Why Use Jade Titan Series?

Each Titan Heavy-Duty range features a hand-crafted, solid, all-welded frame for incredible strength & durability. All materials used in the production of Jade Titan™ Ranges are chosen to achieve the longest lifespan, allowing Jade Range to offer a 2-year parts and labor warranty within the US & Canada.

Jade JTRH-4ST Standart Features

JTRH-4ST: 48" four split top section
Individual cast iron top grates with open top front and polished hot top rear
15,000 BTU/hr per hot top section
35,000 BTU/hr per open burner section
Variable size multi-point gas connection—see utility information for details
14 gauge stainless steel all welded body construction
Stainless steel gas tubing throughout
Stainless steel front, sides, tray bed and stub back
Stainless steel 6" plate shelf
3/4" gas regulator (shipped loose, must be installed for proper operation)

Jade JTRH-4ST Specification

Heavy duty cabinet base split top range. To be model # JTRH manufactured by Jade Range. Top sections to consist of cast iron top grates, with open top front and polished top rear. Provide with 30,000 BTU/hr. per open burner section and 15,000 BTU/hr. per hot top section, controlled by infinite gas valves. To have 14 gauge all welded body with stainless steel front, sides, back and bottom. All gas tubing to be stainless steel throughout. To have 6" stainless steel adjustable legs.

From The Manufacturer

Titan™ Heavy Duty Range, gas, 48", (4) 35,000 BTU open front burners, (4) 15,000 BTU rear hot tops, infinite controls, cabinet base, stainless steel 6" plate shelf, front, top, sides, stub back & tray bed, 6" adjustable legs, 200,000 BTU, CSAus, NSF

Manufacturer	Jade
Model Number	JTRH-4ST
Weight	985 lbs
Width	48″
Depth	38″
Height	36.5″
Installation Type	free standing
Range Type	heavy duty/modular range
Number of Burners	4 burners
Base Type	cabinet/storage base
Control Type	manual control
Top Configuration	burner
Exterior Finish	stainless steel front & sides
Top	(4) open burners, (4) 12" hot tops
Certifications	NSF, CSAus
Total BTU	200,000
Burner BTU	35,000

	Jade JTRH-4ST 48" Gas Heavy Duty Range w/ (4) Open Burners, (4) Hot Tops, Cabinet Base, 200.000 BTU	Jade JTRHE-4-4 48" Gas Heavy Duty Range, (8) Open Burners w/ (4) Step Up, Cabinet Base, 240.000 BTU	Jade JTRH-8-A 48" Gas Heavy Duty Range w/ (8) Open Burners, Cabinet Base, 280.000 BTU	Southbend P48C-BBBB-SU 48" Gas Heavy Duty Range, (8) Open Burners w/ (4) Step-Up, (2) Cabinet Bases, 280.000 BTU Free Shipping	Southbend P48C-BBBB 48" Gas Heavy Duty Range w/ (8) Open Burners, (2) Cabinet Bases, 280.000 BTU Free Shipping	Southbend P36C-XX 36" Gas Heavy Duty Range w/ (4) Open Burners, (1) Cabinet Base, 180.000 BTU Free Shipping	Southbend P32C-XX 32" Gas Heavy Duty Range w/ (4) Open Burners, (1) Cabinet Base, 180.000 BTU Free Shipping	American Range HD34-4-O 34" Gas Heavy Duty Range w/ (4) Open Burners, (1) Cabinet Base, 148.000 BTU Free Shipping	Jade JTRHE-6-6 72" Gas Heavy Duty Range, (12) Open Burners w/ (6) Step Up, Cabinet Base, 360.000 BTU
Price	Price	Price	Price	Price	Price	Price	Price	Price	Price
Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingFree Shipping	ShippingFree Shipping	ShippingFree Shipping	ShippingFree Shipping	ShippingFree Shipping	ShippingPlus Shipping
Total BTU	Total BTU141.000 - 400.500	Total BTU141.000 - 400.500	Total BTU141.000 - 400.500	Total BTU141.000 - 400.500	Total BTU141.000 - 400.500	Total BTU141.000 - 400.500	Total BTU141.000 - 400.500	Total BTU141.000 - 400.500	Total BTU141.000 - 400.500
Burner BTU	Burner BTU35,000	Burner BTU30,000 & 30,000	Burner BTU35,000	Burner BTU35,000 & 35,000	Burner BTU35,000	Burner BTU45,000	Burner BTU45,000	Burner BTU37,000	Burner BTU30,000 & 30,000
WIDTH (SIDE - SIDE)	WIDTH (SIDE - SIDE)48	WIDTH (SIDE - SIDE)48	WIDTH (SIDE - SIDE)48	WIDTH (SIDE - SIDE)48	WIDTH (SIDE - SIDE)48	WIDTH (SIDE - SIDE)36	WIDTH (SIDE - SIDE)32	WIDTH (SIDE - SIDE)34	WIDTH (SIDE - SIDE)72
Manufacturer	ManufacturerJade	ManufacturerJade	ManufacturerJade	ManufacturerSouthbend	ManufacturerSouthbend	ManufacturerSouthbend	ManufacturerSouthbend	ManufacturerAmerican Range	ManufacturerJade
Top	Top(4) open burners, (4) 12" hot tops	Top(4) open burners, (4) step-up open burners	Top(8) open burners	Top(4) open burners, (4) step-up open burners	Top(8) open burners	Top(4) open burners	Top(4) open burners	Top(4) open burners	Top(6) open burners, (6) step-up open burners
Base Type	Base Typecabinet/storage base	Base Typecabinet/storage base	Base Typecabinet/storage base	Base Typecabinet/storage base	Base Typecabinet/storage base	Base Typecabinet/storage base	Base Typecabinet/storage base	Base Typecabinet/storage base	Base Typecabinet/storage base
Exterior Finish	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides
Range Type	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range
Width	Width48"	Width48"	Width48"	Width48"	Width48"	Width36"	Width32"	Width34"	Width72"
Top Configuration	Top Configurationburner	Top Configurationburner	Top Configurationburner	Top Configurationburner	Top Configurationburner	Top Configurationburner	Top Configurationburner	Top Configurationburner	Top Configurationburner
Installation Type	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing
Number of Burners	Number of Burners4 burners	Number of Burners8 burners	Number of Burners8 burners	Number of Burners8 burners	Number of Burners8 burners	Number of Burners4 burners	Number of Burners4 burners	Number of Burners4 burners	Number of Burners12 burners
Control Type	Control Typemanual control	Control Typemanual control	Control Typemanual control	Control Typemanual control	Control Typemanual control	Control Typemanual control	Control Typemanual control	Control Typemanual control	Control Typemanual control
Vent	Vent-	Vent-	Vent-	Vent-	Vent-	Vent-	Ventbackriser	Vent-	Vent-
Burner Style	Burner Style-	Burner Style-	Burner Style-	Burner Stylenon-clog & step-up burner	Burner Stylenon-clog burners	Burner Stylepyromax burners	Burner Stylepyromax burners	Burner Style-	Burner Style-
Certifications	CertificationsNSF, CSAus	CertificationsNSF, CSAus	CertificationsNSF, CSAus	Certifications-	Certifications-	Certifications-	Certifications-	Certifications-	CertificationsNSF, CSAus

Manufacturer	Jade
Model Number	JTRH-4ST
Weight	985 lbs
Width	48″
Depth	38″
Height	36.5″
Installation Type	free standing
Range Type	heavy duty/modular range
Number of Burners	4 burners
Base Type	cabinet/storage base
Control Type	manual control
Top Configuration	burner
Exterior Finish	stainless steel front & sides
Top	(4) open burners, (4) 12" hot tops
Certifications	NSF, CSAus
Total BTU	200,000
Burner BTU	35,000

	Jade JTRH-4ST 48" Gas Heavy Duty Range w/ (4) Open Burners, (4) Hot Tops, Cabinet Base, 200.000 BTU	Jade JTRHE-4-4 48" Gas Heavy Duty Range, (8) Open Burners w/ (4) Step Up, Cabinet Base, 240.000 BTU	Jade JTRH-8-A 48" Gas Heavy Duty Range w/ (8) Open Burners, Cabinet Base, 280.000 BTU	Southbend P48C-BBBB-SU 48" Gas Heavy Duty Range, (8) Open Burners w/ (4) Step-Up, (2) Cabinet Bases, 280.000 BTU Free Shipping	Southbend P48C-BBBB 48" Gas Heavy Duty Range w/ (8) Open Burners, (2) Cabinet Bases, 280.000 BTU Free Shipping	Southbend P36C-XX 36" Gas Heavy Duty Range w/ (4) Open Burners, (1) Cabinet Base, 180.000 BTU Free Shipping	Southbend P32C-XX 32" Gas Heavy Duty Range w/ (4) Open Burners, (1) Cabinet Base, 180.000 BTU Free Shipping	American Range HD34-4-O 34" Gas Heavy Duty Range w/ (4) Open Burners, (1) Cabinet Base, 148.000 BTU Free Shipping	Jade JTRHE-6-6 72" Gas Heavy Duty Range, (12) Open Burners w/ (6) Step Up, Cabinet Base, 360.000 BTU
Price	Price	Price	Price	Price	Price	Price	Price	Price	Price
Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingFree Shipping	ShippingFree Shipping	ShippingFree Shipping	ShippingFree Shipping	ShippingFree Shipping	ShippingPlus Shipping
Total BTU	Total BTU141.000 - 400.500	Total BTU141.000 - 400.500	Total BTU141.000 - 400.500	Total BTU141.000 - 400.500	Total BTU141.000 - 400.500	Total BTU141.000 - 400.500	Total BTU141.000 - 400.500	Total BTU141.000 - 400.500	Total BTU141.000 - 400.500
Burner BTU	Burner BTU35,000	Burner BTU30,000 & 30,000	Burner BTU35,000	Burner BTU35,000 & 35,000	Burner BTU35,000	Burner BTU45,000	Burner BTU45,000	Burner BTU37,000	Burner BTU30,000 & 30,000
WIDTH (SIDE - SIDE)	WIDTH (SIDE - SIDE)48	WIDTH (SIDE - SIDE)48	WIDTH (SIDE - SIDE)48	WIDTH (SIDE - SIDE)48	WIDTH (SIDE - SIDE)48	WIDTH (SIDE - SIDE)36	WIDTH (SIDE - SIDE)32	WIDTH (SIDE - SIDE)34	WIDTH (SIDE - SIDE)72
Manufacturer	ManufacturerJade	ManufacturerJade	ManufacturerJade	ManufacturerSouthbend	ManufacturerSouthbend	ManufacturerSouthbend	ManufacturerSouthbend	ManufacturerAmerican Range	ManufacturerJade
Top	Top(4) open burners, (4) 12" hot tops	Top(4) open burners, (4) step-up open burners	Top(8) open burners	Top(4) open burners, (4) step-up open burners	Top(8) open burners	Top(4) open burners	Top(4) open burners	Top(4) open burners	Top(6) open burners, (6) step-up open burners
Base Type	Base Typecabinet/storage base	Base Typecabinet/storage base	Base Typecabinet/storage base	Base Typecabinet/storage base	Base Typecabinet/storage base	Base Typecabinet/storage base	Base Typecabinet/storage base	Base Typecabinet/storage base	Base Typecabinet/storage base
Exterior Finish	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides
Range Type	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range
Width	Width48"	Width48"	Width48"	Width48"	Width48"	Width36"	Width32"	Width34"	Width72"
Top Configuration	Top Configurationburner	Top Configurationburner	Top Configurationburner	Top Configurationburner	Top Configurationburner	Top Configurationburner	Top Configurationburner	Top Configurationburner	Top Configurationburner
Installation Type	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing
Number of Burners	Number of Burners4 burners	Number of Burners8 burners	Number of Burners8 burners	Number of Burners8 burners	Number of Burners8 burners	Number of Burners4 burners	Number of Burners4 burners	Number of Burners4 burners	Number of Burners12 burners
Control Type	Control Typemanual control	Control Typemanual control	Control Typemanual control	Control Typemanual control	Control Typemanual control	Control Typemanual control	Control Typemanual control	Control Typemanual control	Control Typemanual control
Vent	Vent-	Vent-	Vent-	Vent-	Vent-	Vent-	Ventbackriser	Vent-	Vent-
Burner Style	Burner Style-	Burner Style-	Burner Style-	Burner Stylenon-clog & step-up burner	Burner Stylenon-clog burners	Burner Stylepyromax burners	Burner Stylepyromax burners	Burner Style-	Burner Style-
Certifications	CertificationsNSF, CSAus	CertificationsNSF, CSAus	CertificationsNSF, CSAus	Certifications-	Certifications-	Certifications-	Certifications-	Certifications-	CertificationsNSF, CSAus

Jade JTRH-4ST 48" Gas Heavy Duty Range w/ (4) Open Burners, (4) Hot Tops, Cabinet Base, 200.000 BTU
