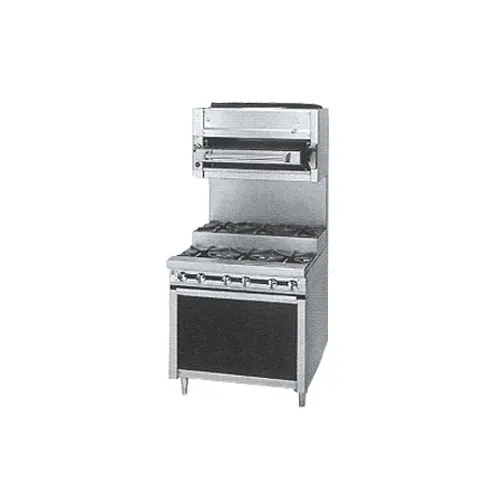

The Jade JTRHE-4-4 Cabinet Base Step-Up Range

Why Use Jade Titan Series?

Each Titan Heavy-Duty range features a hand-crafted, solid, all-welded frame for incredible strength & durability. All materials used in the production of Jade Titan™ Ranges are chosen to achieve the longest lifespan, allowing Jade Range to offer a 2-year parts and labor warranty within the US & Canada.

Jade JTRHE-4-4 Standart Features

JTRHE-4-4: 48" open burners — 4 in front, 4 in rear
Individual lift-off steel top grates
30,000 BTU/hr cast iron open burners
Variable size multi-point gas connection—see utility information for details
One stainless steel pilot per burner
14 gauge all welded body construction
Stainless steel cabinet interior and exterior
Stainless steel gas tubing throughout
Stainless steel front, sides, stub back and bottom
Stainless steel 6" plate shelf
Stainless steel adjustable 6" legs
3/4" gas regulator (shipped loose, must be installed for proper operation)

Jade JTRHE-4-4 Specification

Heavy duty cabinet base “Step-up” range. To be model # JTRHE manufactured by Jade Range. Each burner to have individual lift off top grates. Top grate supports to be 5/8" thick steel plate. Provide with (30,000 BTU/hr.) open burners controlled by infinite gas valves. To have 14 gauge all welded body with stainless steel front, sides, back and bottom. All gas tubing to be stainless steel throughout. To have 6" stainless steel adjustable legs.

From The Manufacturer

Titan™ Heavy Duty Range, gas, 48", (4) 30,000 BTU open burners, (4) 30,000 BTU step-up open burners, infinite controls, cabinet base, stainless steel 6" plate shelf, front, sides, stub back & bottom, 6" adjustable legs, 240,000 BTU, CSAus, NSF

Manufacturer	Jade
Model Number	JTRHE-4-4
Weight	650 lbs
Width	48″
Depth	38″
Height	36.5″
Installation Type	free standing
Range Type	heavy duty/modular range
Number of Burners	8 burners
Base Type	cabinet/storage base
Control Type	manual control
Top Configuration	burner
Exterior Finish	stainless steel front & sides
Top	(4) open burners, (4) step-up open burners
Certifications	NSF, CSAus
Total BTU	240,000
Burner BTU	30,000 & 30,000
