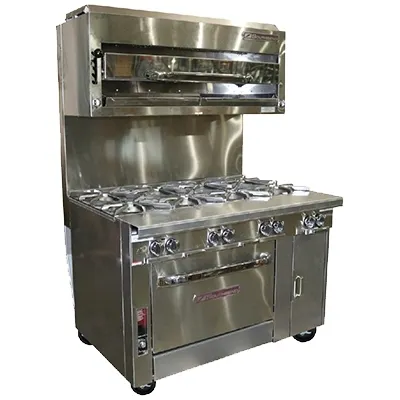

The Southbend P48D-BBBB-SU 48" Platinum Series Sectional Range
Why Use Southbend Sectional Range?
The Platinum Series provides professional performance that chefs and restaurateurs can depend on. Made with 100% Stainless Steel construction, the Platinum Series includes heavy-duty ranges, griddles, planchas, charbroilers, stock pot ranges, fryers, uniform hot tops, french tops, and broilers that can be combined for a 100% custom line-up to fit the needs of any high-volume operation.
Southbend P48D-BBBB-SU Features
- P48D-BBBB-SU: Platinum Series Sectional Range - 8 Non-Clog Burners - Step-Up - Standart Oven Base - 325,000 BTU
- 48" wide sectional range with six open-top burners available with a standard-oven base, convection-oven base, cabinet base, or as a modular unit (for mounting on countertop, refrigerated or freezer base).
- Eight 35,000 BTU NAT (35,000 BTU LP) patented clog•free burners
- Removable, welded steel top grates
- 9-1/4″ deep front rail
- Removable drippings tray
- Stainless steel front, sides, rear, and exterior bottom
- Fully insulated lining and burner box
- 1-1/4″ front gas manifold and 1″ rear gas connection
- 5″ high stainless steel flue riser
- Free battery-design assistance
- 1/2 hp, two-speed blower
- 45,000 BTU NAT (45,000 BTU LP) oven with standing pilot
- Heavy duty, stainless steel door handle
- Porcelain enamel interior
- Oven racks (2 for standard oven, 3 for convection oven)
- “Insta-On” thermostat ranging from 175°F to 550°F
- Standard-oven interior is large enough (26″ by 26-1/2″) for sheet pans to fit either way
- (1) year limited parts and labor warranty
Southbend P48D-BBBB-SU Specification
- Exterior Finish: Front, sides, rear and exterior bottom constructed of #3 polished 430 and 304 stainless steel.
- Range: 48"-wide front-manifold sectional range with eight 35,000 BTU NAT (35,000 BTU LP) clog-free, open-top burners with removable, welded steel top grates.
- Front Rail: 9-1/4" deep front rail.
- Flue Riser: 5" high stainless steel flue riser
- Battery: Unit can be in any position in a battery. If the unit is at the end of the battery, the end side will be solid (rather than have a coverplate over the end of the front manifold).
- Legs: Stainless steel 6” adjustable legs standard.
- Model 48D: 45,000 BTU NAT (45,000 BTU LP) oven with standing pilot and thermostat range of 175°F to 550°F (79°C to 288°C). Porcelain enamel interior, measuring 14” high x 26” wide x 26.5” deep. Two racks with five-position side rails. Right side cabinet.
WARRANTY & SERVICE REQUEST
“Do you need service? Is your product under warranty? Please fill out the form at the link below.”
Warranty & Service Request FormFrom The Manufacturer
Platinum Heavy Duty Range, gas, 48", (4) 35,000 BTU open burners, (4) 35,000 BTU step-up open burners, manual controls, standing pilot, (1) standard oven, (1) 12" cabinet, includes (2) racks, stainless steel front, sides, rear, exterior bottom & 6" adjustable legs, 325,000 BTU, CSA, NSF
