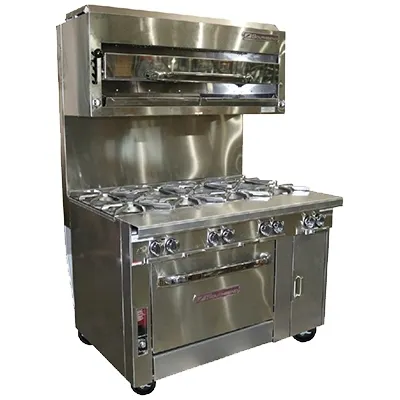

The Southbend P48D-BBBB 48" Platinum Series Sectional Range
Why Use Southbend Sectional Range?
The Platinum Series provides professional performance that chefs and restaurateurs can depend on. Made with 100% Stainless Steel construction, the Platinum Series includes heavy-duty ranges, griddles, planchas, charbroilers, stock pot ranges, fryers, uniform hot tops, french tops, and broilers that can be combined for a 100% custom line-up to fit the needs of any high-volume operation.
Southbend P48D-BBBB Features
- P48D-BBBB: Platinum Series Sectional Range - 8 Non-Clog Burners - Standart Oven Base - 325,000 BTU
- 48" wide sectional range with six open-top burners available with a standard-oven base, convection-oven base, cabinet base, or as a modular unit (for mounting on countertop, refrigerated or freezer base).
- Eight 35,000 BTU NAT (35,000 BTU LP) patented clog•free burners
- Removable, welded steel top grates
- 9-1/4″ deep front rail
- Removable drippings tray
- Stainless steel front, sides, rear, and exterior bottom
- Fully insulated lining and burner box
- 1-1/4″ front gas manifold and 1″ rear gas connection
- 5″ high stainless steel flue riser
- Free battery-design assistance
- 1/2 hp, two-speed blower
- 45,000 BTU NAT (45,000 BTU LP) oven with standing pilot
- Heavy duty, stainless steel door handle
- Porcelain enamel interior
- Oven racks (2 for standard oven, 3 for convection oven)
- “Insta-On” thermostat ranging from 175°F to 550°F
- Standard-oven interior is large enough (26″ by 26-1/2″) for sheet pans to fit either way
- (1) year limited parts and labor warranty
Southbend P48D-BBBB Specification
- Exterior Finish: Front, sides, rear and exterior bottom constructed of #3 polished 430 and 304 stainless steel.
- Range: 48"-wide front-manifold sectional range with eight 35,000 BTU NAT (35,000 BTU LP) clog-free, open-top burners with removable, welded steel top grates.
- Front Rail: 9-1/4" deep front rail.
- Flue Riser: 5" high stainless steel flue riser
- Battery: Unit can be in any position in a battery. If the unit is at the end of the battery, the end side will be solid (rather than have a coverplate over the end of the front manifold).
- Legs: Stainless steel 6” adjustable legs standard.
- Model 48D: 45,000 BTU NAT (45,000 BTU LP) oven with standing pilot and thermostat range of 175°F to 550°F (79°C to 288°C). Porcelain enamel interior, measuring 14” high x 26” wide x 26.5” deep. Two racks with five-position side rails. Right side cabinet.
WARRANTY & SERVICE REQUEST
“Do you need service? Is your product under warranty? Please fill out the form at the link below.”
Warranty & Service Request FormFrom The Manufacturer
Platinum Heavy Duty Range, gas, 48", (8) 35,000 BTU open burners, manual controls, standing pilot, (1) standard oven, (1) 12" cabinet, includes (2) racks, stainless steel front, sides, rear, exterior bottom & 6" adjustable legs, 325,000 BTU, CSA, NSF
