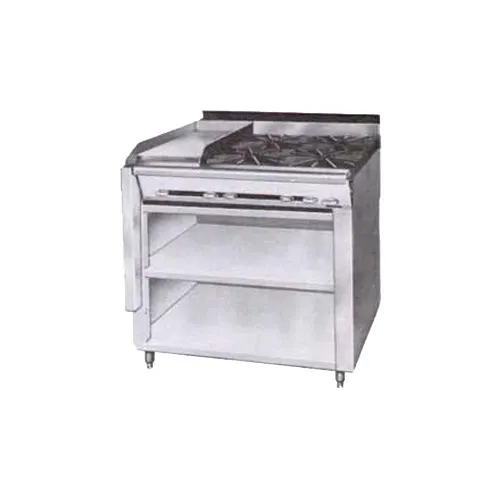

Montague Company 36-6 36" Gas Heavy Duty Range w/ (4) Open Burners, 12" Griddle, Open Cabinet Base, 135.000 BTU

Overview

The 36-6,(1) 12" griddle (L), 3/4" thick, manual control, (4) 30,000 BTU open burners (R), open cabinet base with stainless steel front & 4" flue riser, black sides, black intermediate & bottom shelves, 6" high adjustable stainless steel legs, 135,000 BTU, cETLus, CE.

Griddle

• One 12” wide x 28” deep (305 x 711mm)
• Positioned left
• 3/4” (19mm) thick precision-ground steel cook surface
• 2” (51mm) high backsplash and side-splashes
• 2-5/8” (67mm) wide grease trough pitched to grease receptacle
• Built-in 2-1/8” (54mm) hanging grease receptacle
• One 15,000 BTU/hr gas burner with standing pilot & gas control valve
• Adjusting bolts for changing griddle forward pitch

Open Burner Tops

• Two 12” wide x 31” deep (305 x 787mm)
• Positioned on right
• Heavily ribbed cast iron, surface-ground top grates
• Four large diameter 30,000 BTU/hr lift off gas star burners with raised ports
• Automatic, standing pilots
• Drip pan positioned under open burners

Montague Company 36-6 Standard Features

• Choice of countertop unit or free-standing range with base options including modular stand, open cabinet base, or oven
• Angle-iron construction provides exceptional structural strength to stand the test of time
• Stainless-steel front
• Stainless-steel 4″ (10.2cm) flue risers
• Painted surfaces are electrolytic zinc coated for superior corrosion protection and long life
• Designed for quick installation
• Easy to clean

Montague Company 36-6 Specifications

• Base Style/Type : With Cabinet Base
• Burners : 5
• BTU/hr (kW) : 135,000 (39.6)
• Shipping Weight: 420 lbs (190 kg)
• Other Details : See spec. sheet
