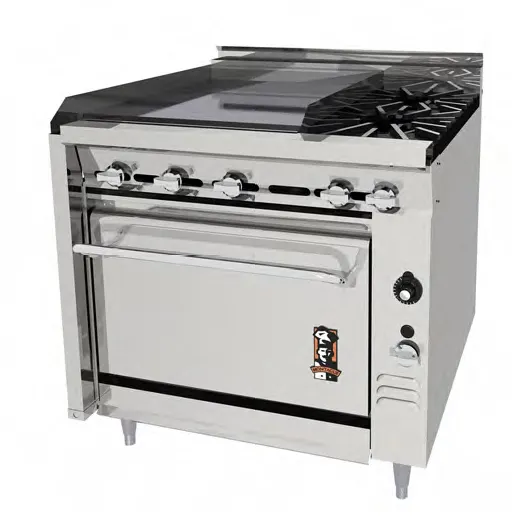

Montague Company M36-7PL 36" Gas Heavy Duty Range w/ (2) Open Burners, 24" Plancha Griddle, Modular Stand Base, 90.000 BTU

Overview

The M36-7PL, (1) 24" plancha top (L), 3/4" thick, manual control, (2) 30,000 BTU open burners (R), stainless steel front & 4" flue riser, stainless steel modular stand with undershelf & tubular legs, 90,000 BTU, cETLus, CE.*This product has 28” (711mm) high modular stand with stainless steel tubular legs.

Plancha [Spanish Griddle] Top

• One 19” wide x 25” deep (483 x 635mm)
• Positioned left
• 3/4” (19mm) thick precision-ground steel raised cook surface
• Full perimeter grease trough
• Two-quart hanging grease receptacle
• Two 15,000 BTU/hr burners with standing pilots
• Individual gas control valves for zoned heating

Open Burner Tops

• One 12” wide x 31” deep (305 x 787mm)
• Positioned on right
• Heavily ribbed cast iron, surface-ground top grates
• Two large diameter 30,000 BTU/hr lift off star burners with raised ports
• Automatic, standing pilots
• Drip pan positioned under open burners

Montague Company M36-7PL Standard Features

• Satin finish stainless steel front and exterior bottom with 3” (76mm) deep front rail
• Other surfaces painted black with electrolytic zinc undercoating
• Stainless steel 4” (102mm) rear flue riser standard
• 6” (152mm) adjustable stainless steel legs standard (Except M36-7PL Model)
• 28” (711mm) stainless steel tubular legs standard with M36-7PL Model
• Cabinet base with sides, back panel and two shelves on 36-7PL Model
• 1-1/4” NPT front gas manifold with 1/2 union on each end

Montague Company M36-7PL Specifications

• Base Style/Type : With Modular Stand
• Burners : 4
• BTU/hr (kW) : 90,000 (26.4)
• Shipping Weight: 390 lbs (177 kg)
• Other Details : See spec. sheet
