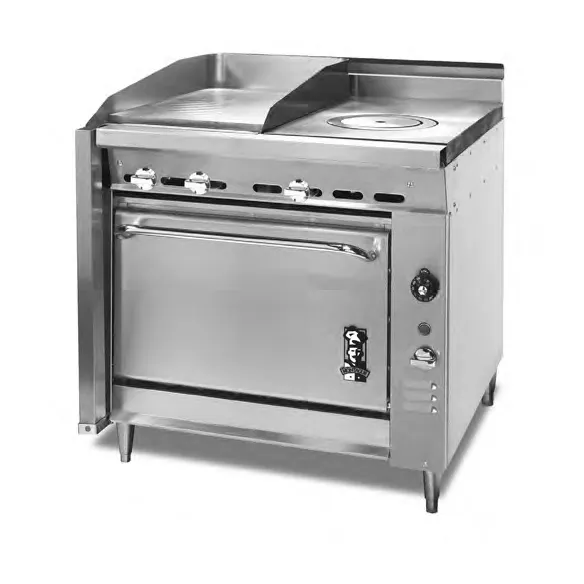

Montague Company M36-12 36" Gas Heavy Duty Range w/ 18" Griddle, (1) French Top, Modular Stand Base, 65.000 BTU

Overview

The M36-12, 1) 18" griddle (L), 3/4" thick, manual controls, (1) 18" ring/cover hot top (R), stainless steel front & 4" flue riser, black sides, stainless steel modular stand with undershelf & tubular legs, 65,000 BTU, cETLus, CE.*This product has 28” (711mm) high modular stand with stainless steel tubular legs.

Griddle

• One 18” wide x 28” deep (457 x 711mm)
• Positioned left
• 3/4” (19mm) thick precision-ground steel cook surface
• 4” (102mm) high backsplash and tapered side-splashes
• 2-5/8” (67mm) wide grease trough pitched to grease receptacle
• Built-in 2-1/8” (54mm) hanging grease receptacle
• Two 15,000 BTU/hr gas burners with standing pilots & gas control valves
• Adjusting bolts for changing griddle forward pitch

French-Style Hot Top

• One 18” wide x 31” deep (457 x 787mm)
• Positioned on right
• Heavy-duty cast iron precision-ground plate
• Front-positioned removable ring & cover
• Front-fired, banjo-type 35,000 BTU/hr burner
• Heat transfer studs cast in plate bottom
• 2” (51mm) side and front flanges isolate heat under plate
• Insulating partition between top sections
• Sloped, brick-lined flues for better heat transfer
• Drip pan positioned under burners

Montague Company M36-12 Standard Features

• Satin finish stainless steel front and exterior bottom with 3” (76mm) deep front rail
• Other surfaces painted black with electrolytic zinc undercoating
• Stainless steel 102mm rear flue riser standard
• 6” (152mm) adjustable stainless steel legs standard (Except M36-12 Model)
• 28” (711mm) stainless steel tubular legs standard with M36-12 Model
• Cabinet base with sides, back panel and two shelves on 36-11 Model
• 1-1/4” NPT front gas manifold with 1/2 union on each end

Montague Company M36-12 Specifications

• Base Style/Type : With Modular Stand
• Burners : 3
• BTU/hr (kW) : 65,000 (19.1)
• Shipping Weight: 390 lbs (177 kg)
• Other Details : See spec. sheet
