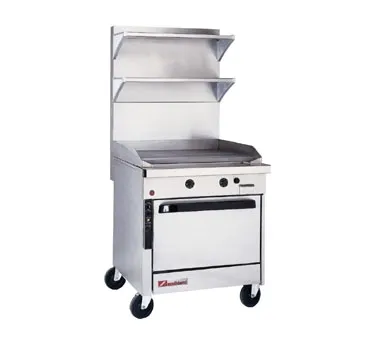

The Southbend P32A-GG Platinum Series Sectional Range Full-Width Griddle
Why Use Southbend Sectional Range?
The Platinum Series provides professional performance that chefs and restaurateurs can depend on. Made with 100% Stainless Steel construction, the Platinum Series includes heavy-duty ranges, griddles, planchas, charbroilers, stock pot ranges, fryers, uniform hot tops, french tops, and broilers that can be combined for a 100% custom line-up to fit the needs of any high-volume operation.
Southbend P32A-GG Features
- P32A-GG: Platinum Sectional Gas Range - 32" Manual Griddle - Convection Oven - 125,000 BTU
- 32" wide sectional range with full-width griddle available with a standard-oven base, convection-oven base, cabinet base, or as a modular unit (for mounting on countertop, refrigerated or freezer base)
- Four 20,000 BTU NAT (18,000 BTU LP) burners with two control knob
- Battery spark ignition
- 1" thick griddle plate with side and rear splashers
- 9-1/4" deep front rail
- Removable stainless steel grease drawer
- Stainless steel front, sides, rear and exterior bottom
- Fully insulated lining and burner box
- 1-1/4" front gas manifold and 1" rear gas connection
- 5" high stainless steel flue riser
- Free battery-design assistance
- (1) year limited parts and labor warranty
-
Standard Features of Oven-Base Models:
-
45,000 BTU NAT (45,000 BTU LP) oven with standing pilot
-
Heavy duty, stainless steel door handle
-
Porcelain enamel interior
-
Oven racks (2 for standard oven, 3 for convection oven)
-
“Insta-On” thermostat ranging from 175°F to 550°F
-
Standard-oven interior is large enough (26" by 26-1/2") for sheet pans
to fit either way
-
Convection-oven models have 1/2 hp, two-speed blower
Southbend P32A-GG Specification
- Exterior Finish: Front, sides, rear and exterior bottom constructed of #3 polished 430 and 304 stainless steel.
- Range: 32"-wide front-manifold sectional range with fullwidth 80,000 BTU NAT (72,000 BTU LP) griddle with 1" thick stainless steel surface with side and rear splashers and grease drawer.
- Front Rail: 9-1/4" deep front rail.
- Flue Riser: 5" high stainless steel flue riser
- Battery: Unit can be in any position in a battery.
- Legs: 6" stainless steel adjustable legs standard.
- Model 32A: 45,000 BTU NAT (45,000 BTU LP) convection oven with standing pilot and thermostat range of 175°F to 550°F (79°C to 288°C). Porcelain enamel interior, measuring 14” high x 26” wide x 24” deep. Three racks with five-position side rails. Two-speed, 1/2 hp blower motor.
WARRANTY & SERVICE REQUEST
“Do you need service? Is your product under warranty? Please fill out the form at the link below.”
Warranty & Service Request FormFrom The Manufacturer
Platinum Heavy Duty Range, gas, 32", griddle, 1" thick plate, manual controls, battery spark ignition, (1) convection oven, includes (3) racks, stainless steel front, sides & 6" adjustable legs, 125,000 BTU, cCSAus, CSA Flame, CSA Star, NSF
