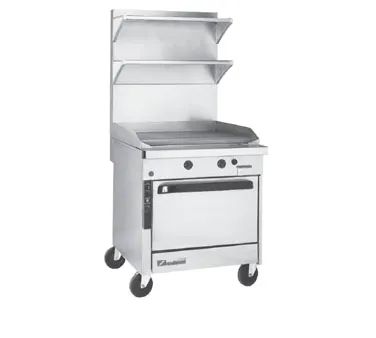

The Southbend P36A-GGG Platinum Series Sectional Range Full-Width Griddle
Why Use Southbend Sectional Range?
The Platinum Series provides professional performance that chefs and restaurateurs can depend on. Made with 100% Stainless Steel construction, the Platinum Series includes heavy-duty ranges, griddles, planchas, charbroilers, stock pot ranges, fryers, uniform hot tops, french tops, and broilers that can be combined for a 100% custom line-up to fit the needs of any high-volume operation.
Southbend P36A-GGG Features
- P36A-GGG: Platinum Sectional Gas Range - 36" Manual Griddle - Convection Oven - 141,000 BTU
- 36" wide sectional range with full-width griddle available with a standard-oven base, convection-oven base, cabinet base, or as a modular unit (for mounting on countertop, refrigerated or freezer base)
- Six 16,000 BTU NAT (14,000 BTU LP) burners with three control knobs
- Battery spark ignition
- 1" thick griddle plate with side and rear splashers
- 9-1/4" deep front rail
- Removable stainless steel grease drawer
- Stainless steel front, sides, rear and exterior bottom
- Fully insulated lining and burner box
- 1-1/4" front gas manifold and 1" rear gas connection
- 5" high stainless steel flue riser
- Free battery-design assistance
- (1) year limited parts and labor warranty
-
Standard Features of Oven-Base Models:
-
45,000 BTU NAT (45,000 BTU LP) oven with standing pilot
-
Heavy duty, stainless steel door handle
-
Porcelain enamel interior
-
Oven racks (2 for standard oven, 3 for convection oven)
-
“Insta-On” thermostat ranging from 175°F to 550°F
-
Standard-oven interior is large enough (26" by 26-1/2") for sheet pans
to fit either way
-
Convection-oven models have 1/2 hp, two-speed blower
Southbend P36A-GGG Specification
- Exterior Finish: Front, sides, rear and exterior bottom constructed of #3 polished 430 and 304 stainless steel.
- Range: 36"-wide front-manifold sectional range includes fullwidth 96,000 BTU NAT (84,000 BTU LP) griddle with 1" thick stainless steel surface, side and rear splashers and grease drawer.
- Front Rail: 9-1/4" deep front rail.
- Flue Riser: 5" high stainless steel flue riser
- Battery: Unit can be in any position in a battery.
- Legs: 6" stainless steel adjustable legs standard.
- Model 36A: 45,000 BTU NAT (45,000 BTU LP) convection oven with standing pilot and thermostat range of 175°F to 550°F (79°C to 288°C). Porcelain enamel interior, measuring 14” high x 26” wide x 24” deep. Three racks with five-position side rails. Two-speed, 1/2 hp blower motor.
WARRANTY & SERVICE REQUEST
“Do you need service? Is your product under warranty? Please fill out the form at the link below.”
Warranty & Service Request FormFrom The Manufacturer
Platinum Heavy Duty Range, gas, 36", griddle, 1" thick plate, manual controls, battery spark ignition, (1) convection oven, includes (3) racks, stainless steel front, sides, rear, exterior bottom & 6" adjustable legs, 141,000 BTU, cCSAus, CSA Flame, CSA Star, NSF
