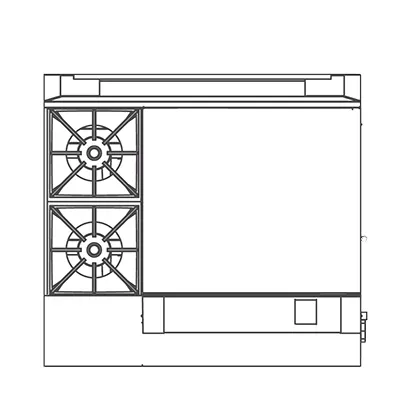

The Southbend P36N-BTT Platinum Series Sectional Range Combination Tops
Why Use Southbend Sectional Range?
The Platinum Series provides professional performance that chefs and restaurateurs can depend on. Made with 100% Stainless Steel construction, the Platinum Series includes heavy-duty ranges, griddles, planchas, charbroilers, stock pot ranges, fryers, uniform hot tops, french tops, and broilers that can be combined for a 100% custom line-up to fit the needs of any high-volume operation.
Southbend P36N-BTT Features
- P36N-BTT: Platinum Sectional Gas Range - 2 Non-Clog Burners - 24" Thermostatic Griddle - Modular - 134,000 BTU
- 36" wide sectional range with a standard-oven base, convection-oven base, cabinet base, or as a modular unit (for mounting on countertop, refrigerated or freezer base)
- 9-1/4" deep front rail
- Stainless steel front and sides
- Fully insulated lining and burner box
- 1-1/4" front gas manifold and 1" rear gas connection
- 5" high stainless steel flue riser
- Free battery-design assistance
12" Open Top Features
- Two 35,000 BTU NAT (35,000 BTU LP) patented clog-free burners
- Removable, welded steel top grates
- Removable drip tray
12" Griddle Features
- Two 16,000 BTU NAT (14,000 BTU LP) burners with one control knob
- Manual "G", or Thermostatic "T" controls available (thermostatic control available on 24" only)
- “Insta-On” thermostatic control of griddle surface temperature in the range 180°F to 400°F
- Battery spark ignition
- 1" thick griddle plate with side and rear splashers
- Removable stainless steel grease drawer
Southbend P36N-BTT Specification
- Exterior Finish: Front, sides, rear and exterior bottom constructed of #3 polished 430 and 304 stainless steel.
- Front Rail: 9-1/4" deep front rail.
- Flue Riser: 5" high stainless steel flue riser
- Battery: Unit can be in any position in a battery. If the unit is at the end of the battery, the end side will be solid (rather than have a coverplate over the end of the front manifold).
- Legs: 6" stainless steel adjustable legs standard.
WARRANTY & SERVICE REQUEST
“Do you need service? Is your product under warranty? Please fill out the form at the link below.”
Warranty & Service Request FormFrom The Manufacturer
Platinum Heavy Duty Range, gas, 36", modular, (2) 35,000 BTU open burners, (1) 24" griddle, thermostatic controls, battery spark ignition, stainless steel front, sides, rear & exterior bottom, 13,000 BTU, cCSAus, CSA Flame, CSA Star, NSF, Made in USA
