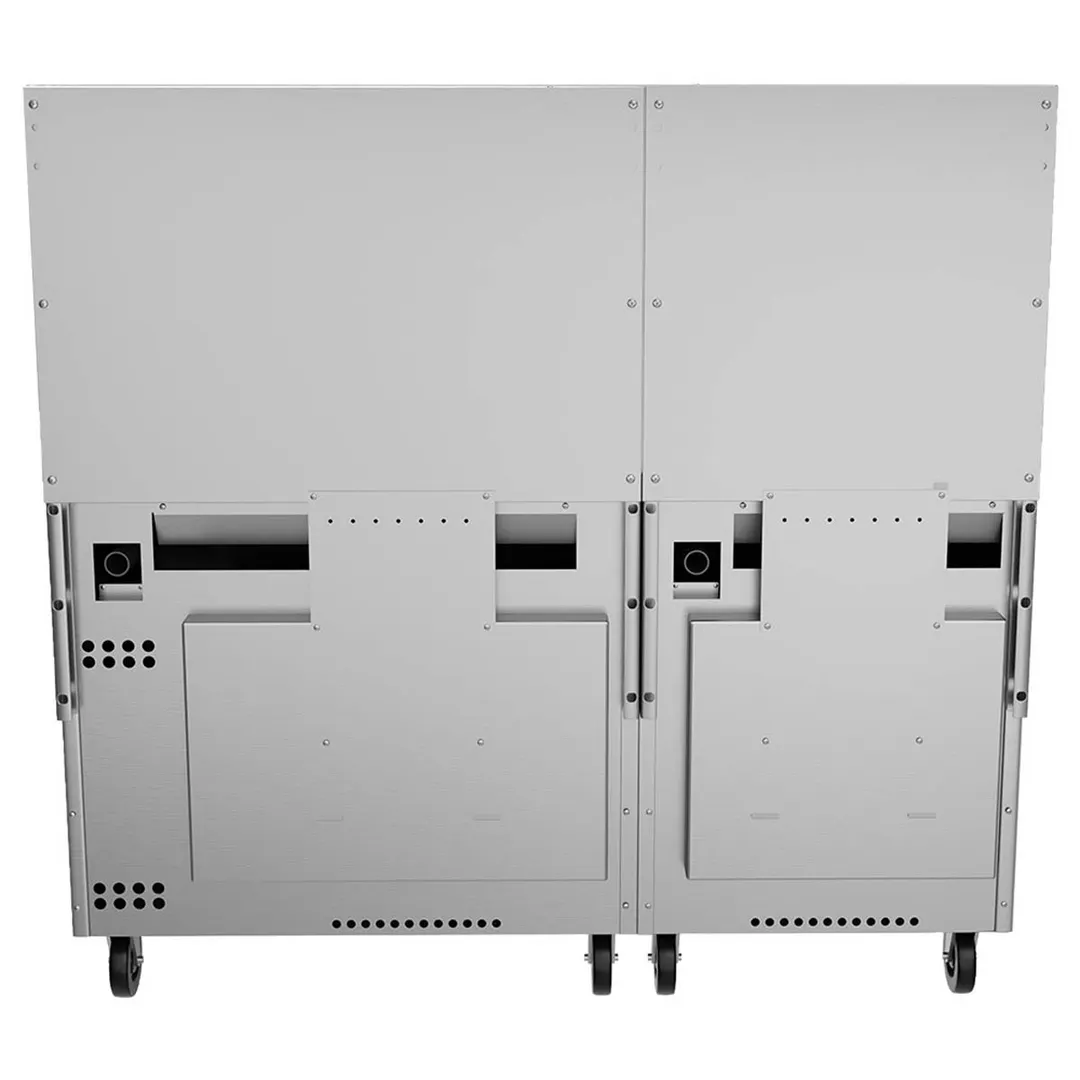

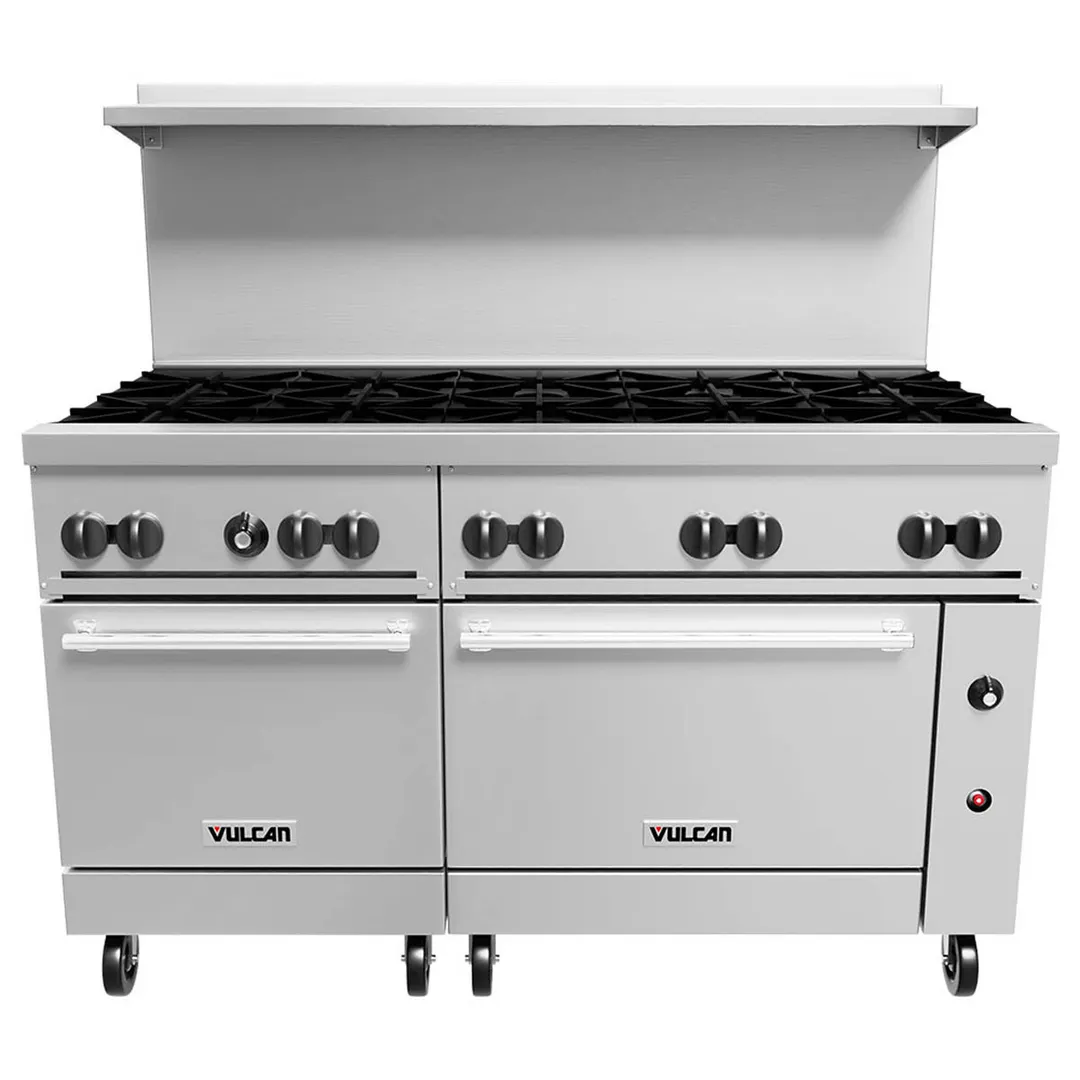

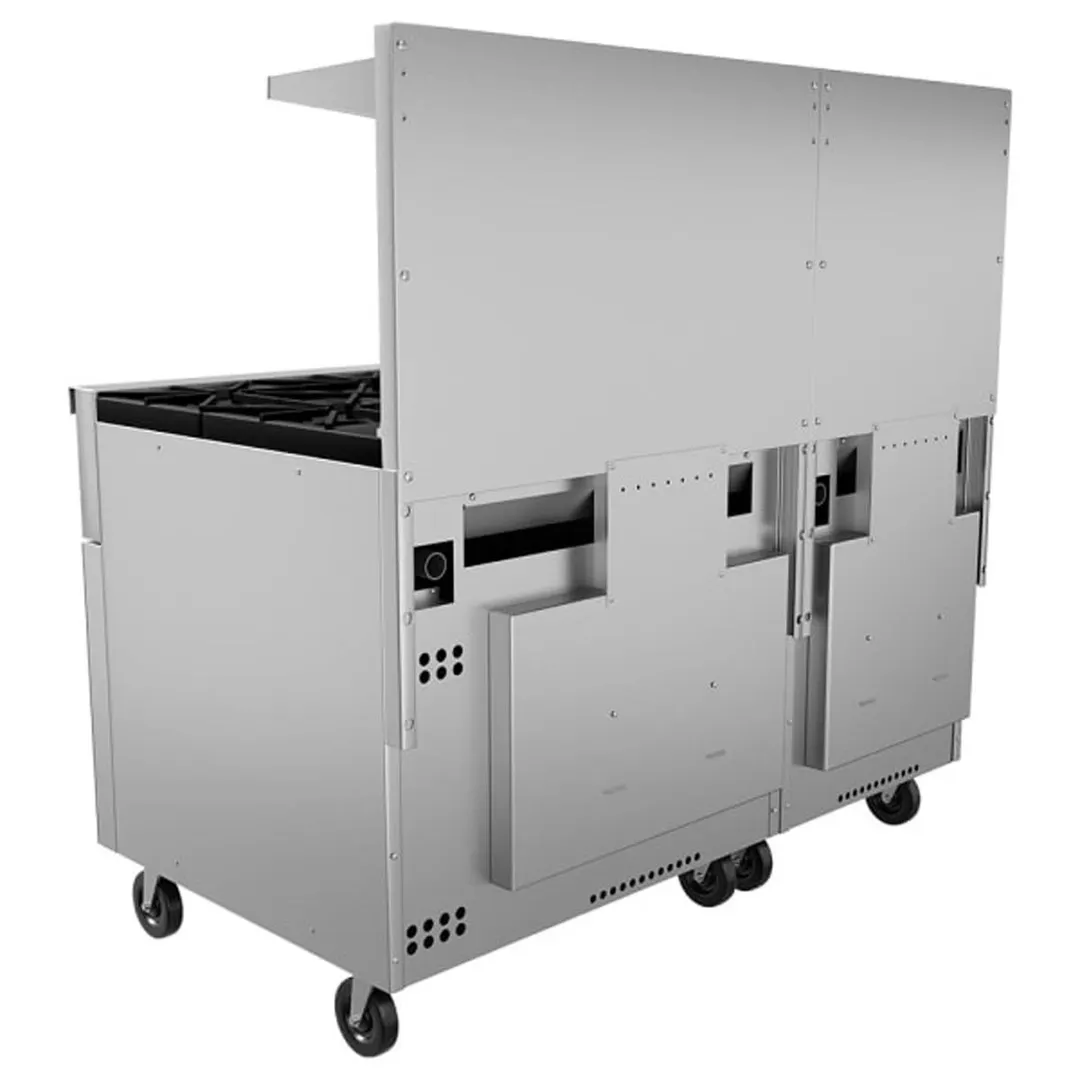

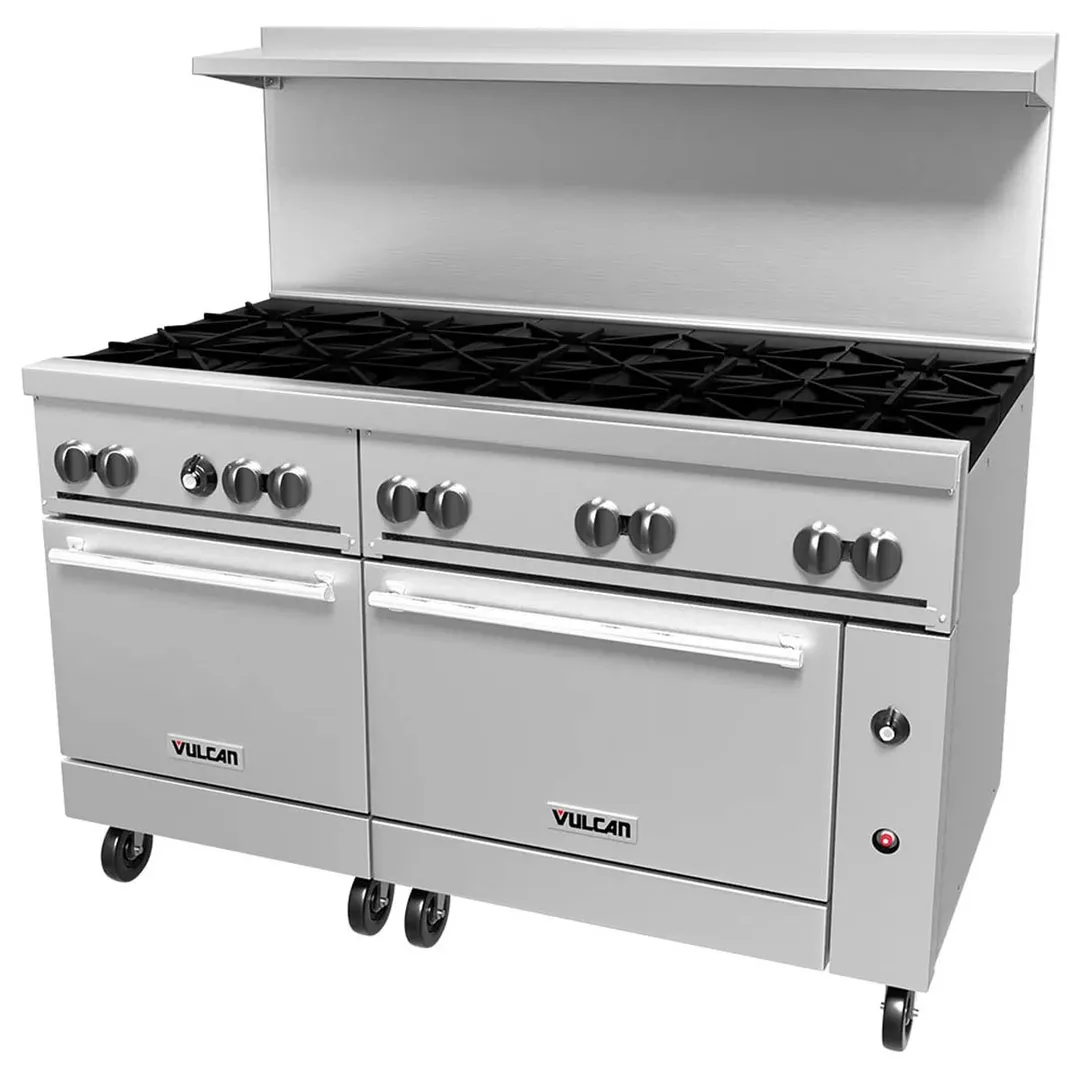

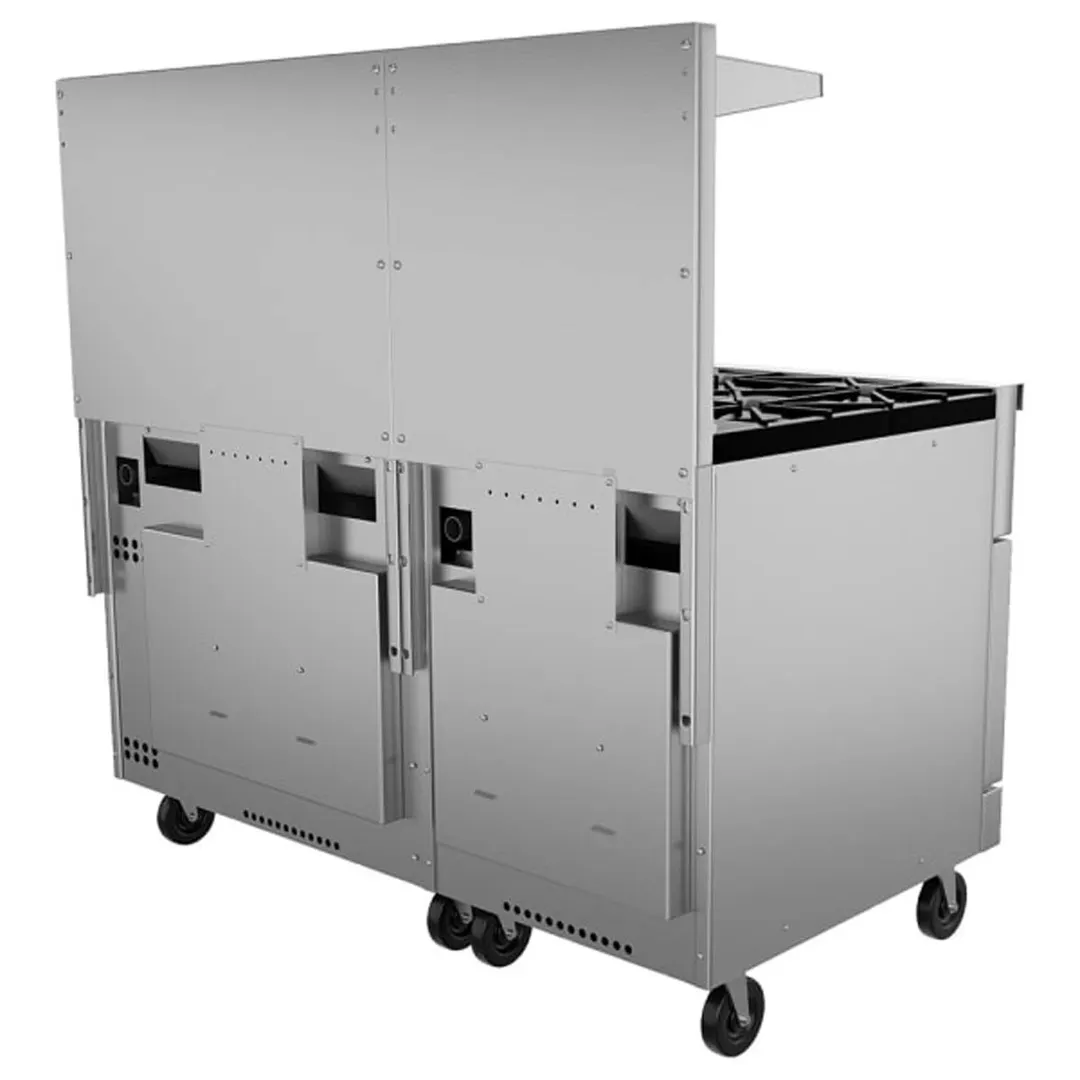

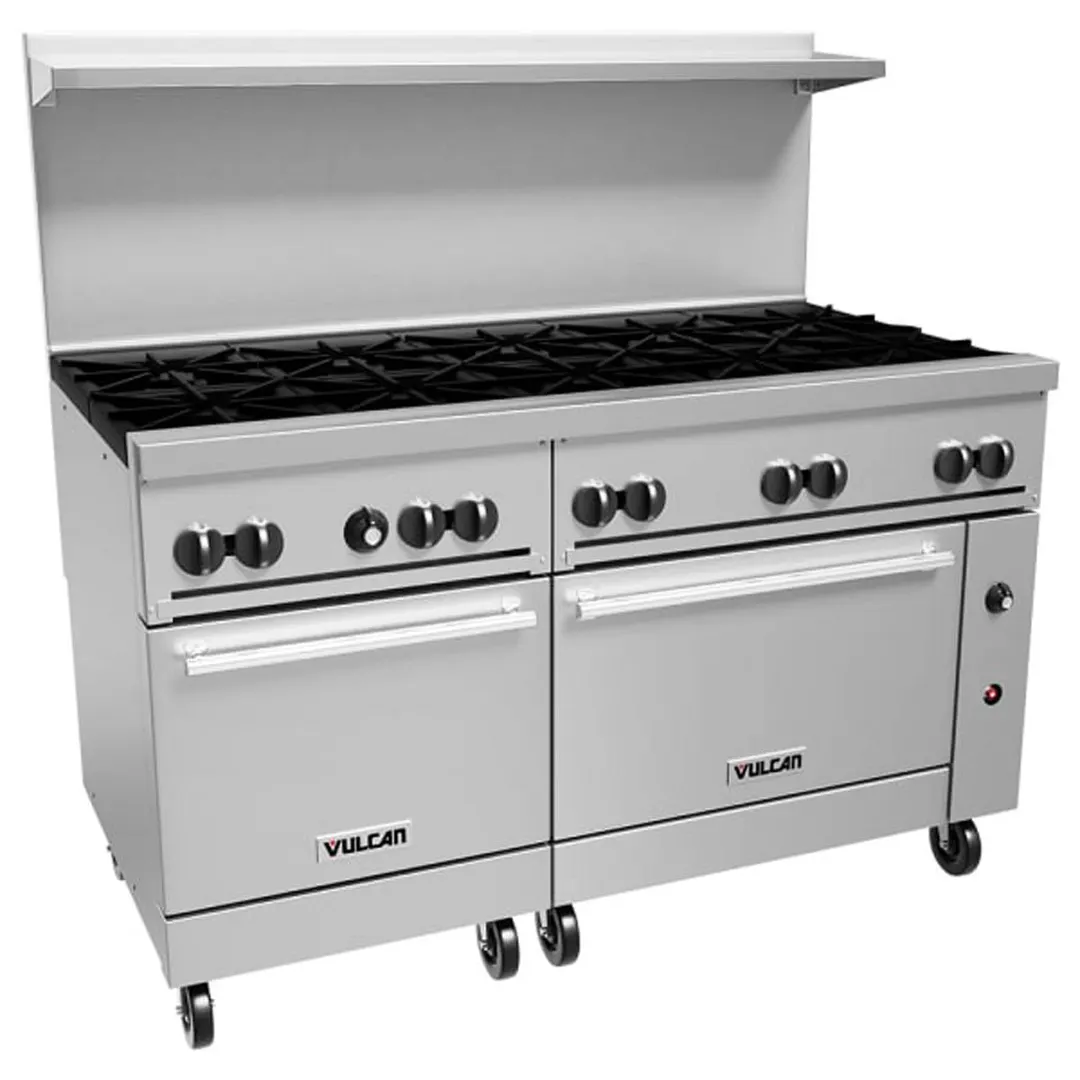

Vulcan 60SC-10B 60" Gas Restaurant Range
Vulcan 60SC-10B Standard Features
- Fully MIG welded frame
- Stainless steel front, sides, backriser, lift-off high shelf
- 6" stainless steel adjustable legs
- Ten open top burners, each burner is 30,000 BTU/hr. with lift-off burner heads
- Shrouded flash tube pilot system (one pilot per two burners)
- Heavy duty cast grates, easy lift-off 12" x 121⁄2" in front and 12" x 141⁄2" in the rear
- Extra deep pull out crumb tray with welded corners
- Left oven: 23,000 BTU/hr. baker’s depth oven cavity, full size sheet pans (18" x 26") fit front to back only
- Right oven: 35,000 BTU/hr. baker’s depth oven cavity, full size sheet pans (18" x 26") fit front to back and side to side
- Oven thermostats adjusts from 250°F to 500°F
- Two oven racks and four rack positions for each oven
- Right oven: 35,000 BTU/hr. convection oven in place of standard oven 24"d x 263⁄8"w x 137⁄8"h (115v - 1 phase blower motor, 4 amp, 6' cord and plug, includes three oven racks. Full size sheet pans only fit side-to-side in convection oven. Convection oven motor requires field attachment.
- 1" rear gas connection and pressure regulator
- One year limited parts and labor warranty
Vulcan 60SC-10B Specifications
- DESCRIPTION : 1 Standard Oven / 1 Convection Oven / 10 Burners / Natural Gas - Propane
- TOTAL INPUT BTU / HR: 358,000
- SHIPPING WEIGHT LBS / KG : 950 / 431
- Weight: 950 lbs
- Width: 60"
- Height: 58"
- Depth: 34"
- Exterior Finish: stainless steel front & sides
- Top: (10) open burners
- Base: (1) standard oven, (1) convection oven
- Vent: backriser with hi-shelf
From The Manufacturer
Endurance™ Restaurant Range, gas, 60", (10) 30,000 BTU burners with lift-off burner heads, standard oven (left), (1) convection (right), stainless steel front, sides, backriser & high shelf, fully MIG welded frame, 6" adjustable legs, 358,000 BTU, CSA, NSF
Images are for reference. Color, configuration, dimensions and what's included vary by model. See the spec sheet to confirm the exact details.
