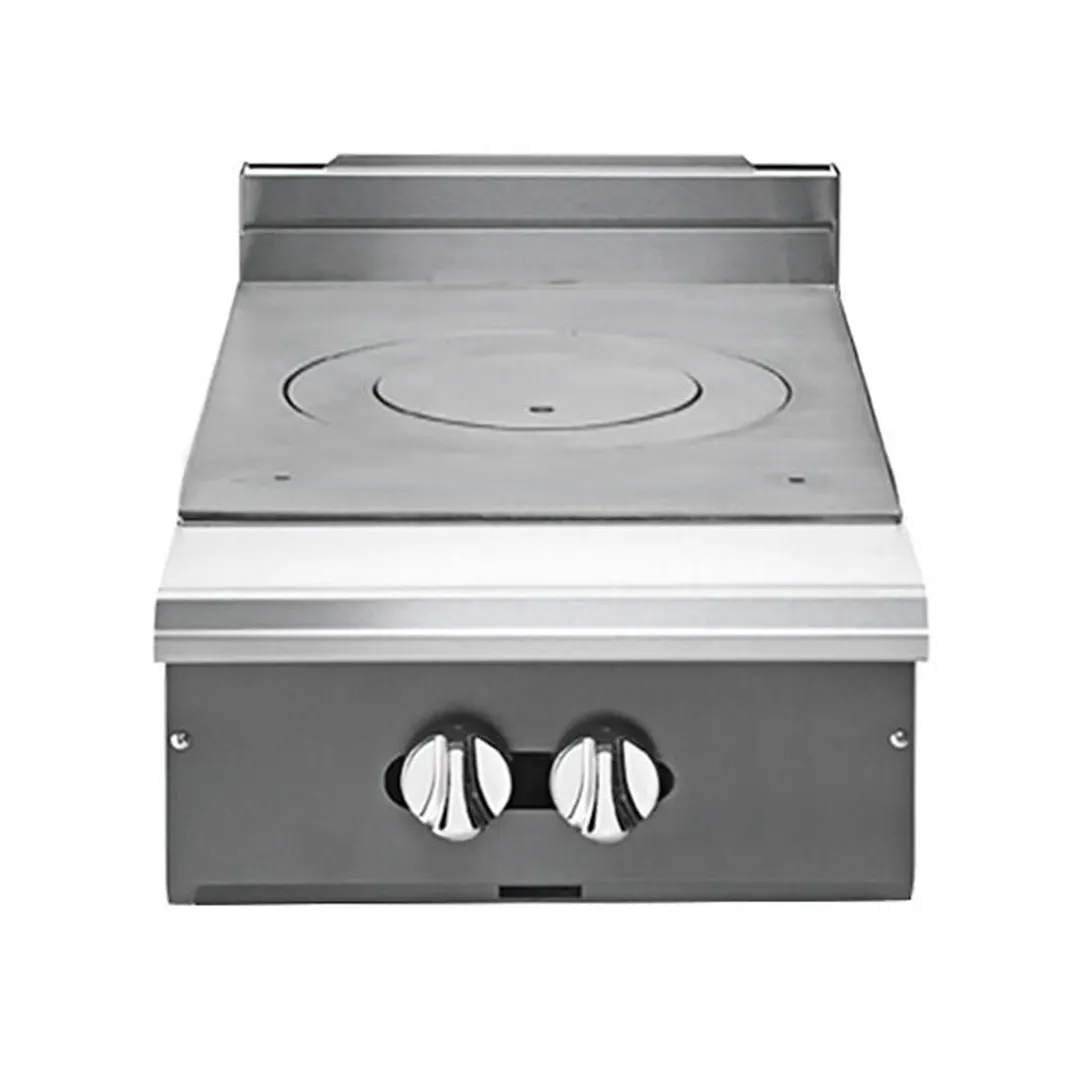

The Vulcan V1FT18 V Series Heavy Duty Gas Range

Why Use Vulcan Ranges?

Versatile and dependable, Vulcan's commercial ranges are built for operations of all sizes. Innovative features help you improve productivity and deliver the high-quality, consistent professional results that keep guests coming back for more. Perfect for steady high heat continuous grilling and searing maximizing production of the footprint Solid 1⁄2" polished steel plate that withstands high temperatures, but still easy to clean. Sheds excessive grease in a trough on 3-sides

What Sets Vulcan Ranges Apart?

The name you trust and the 150 year heritage to back it. Vulcan's line of best in class ranges offers tailored configurations to fit your unique operation. Durable construction and customer-backed features lower overall cost of ownership and provide structural integrity for years of reliable use.Create your perfect workstation with Vulcan's customizable options. Choose from over 300 range configurations in both gas and electric, medium and heavy duty.

Durability and Modularity

The V Series provides modularity from top to bottom and side to side, allowing for flexibility in your menu—today and tomorrow. Because of its unique design, the V Series enables you to bring artistry to the front of the house, while maintaining the durability and reliability you’ve come to expect from Vulcan.
With V Series ranges, it’s easy to create the line-up you are looking for or to redesign your kitchen—and your menu—after the initial installation. Top sections of the same size, including open burners, hot tops, French tops, charbroilers and griddles, are interchangeable. The same goes for like-sized bases, from refrigerated bases and cabinets to standard, convection, and finishing ovens. You have the freedom to create your perfect work station.

Vulcan V1FT18 Features

Stainless steel front, front top ledge, burner box, sides, base, and stub back
1 1⁄4" diameter front gas manifold with 11⁄4" rear gas connection (capped)
25,000 BTU/hr. burner (2 ring burner)
Individual pilots and controls for each burner
Polished cast iron French Top
4" stainless steel stub riser
6" adjustable stainless steel legs for cabinet base units (no legs for modular model)
Stainless steel cabinet base door
V1FT18: 18" French Top / Modular
One year limited parts and labor warranty

Vulcan V1FT18 Specification

18" wide heavy duty gas range, Vulcan Model No. V1FT18 (modular) and V1FT18B (cabinet base). Stainless steel front, sides, base, plate ledge, front top ledge with pull-out condiment rails, and stub back. 1 1⁄4" diameter front gas manifold and 1 1⁄4" rear gas connection, capped. Heavy polished cast iron French plate. 25,000 BTU/hr. heavy cast burner, two ring burners with individual pilots and controls for each burner. Total input 25,000 BTU/hr.

Vulcan V1FT18 Accessories

3⁄4", 1", or 1 1⁄4" gas pressure regulator (specify gas type – pack loose)
Set of 4 casters, 6" high (two locking)
6" adjustable flanged feet for cabinet base models
Banking strip
Extra removable shelves for use with Universal rack guides (cabinet base)
10", 22", or 34" high back risers (no shelf)
22" single deck solid or flo-thru high shelf risers
34" double deck solid or flo-thru high shelf risers
Flexible gas hose with quick disconnect & restraining device
Common condiment type, telescoping plate rails (starting at 24" length)
Dolly frames

From The Manufacturer

V Series Heavy Duty Range, gas, 18", modular, French top, polished cast iron, individual pilots & controls, stainless steel front, front top ledge, sides, base, burner box & stub back, 4" flanged feet, 25,000 BTU, CSA, NSF
