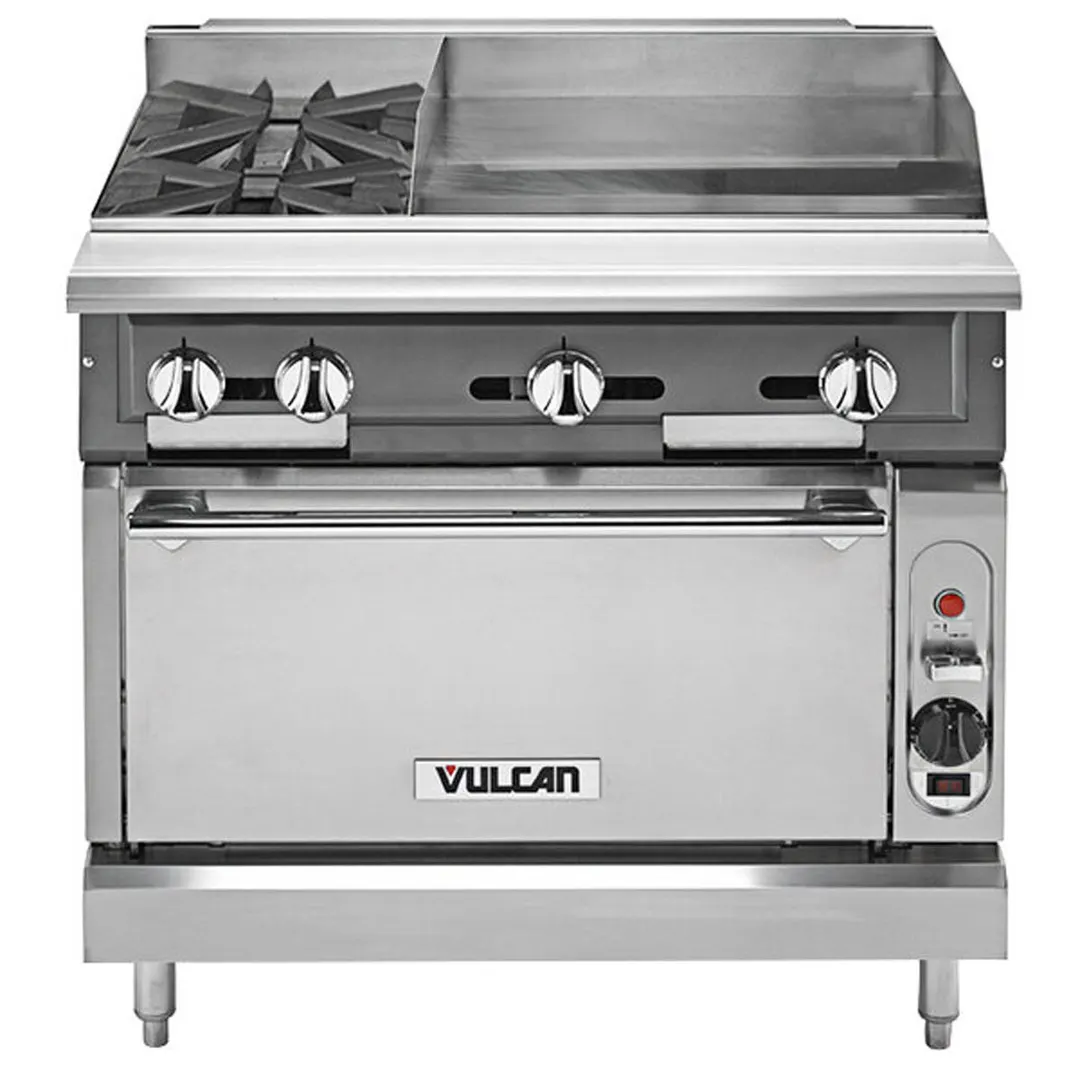

Vulcan V2BG4TC 36" Gas Heavy Duty Range
Vulcan V2BG4TC Standard Features
- Stainless steel front, front top ledge, burner box, sides, base, and stub back
- 11⁄4" diameter front gas manifold and 11⁄4" rear gas connection (capped)
- 35,000 BTU/hr. open top burners with lift off heads
- 30,000 BTU/hr. griddle burners
- Snap-action thermostats
- Temperatures range from 150° - 450° F
- 50,000 BTU/hr. standard oven burner
- 32,000 BTU/hr. convection oven burner
- Porcelain oven cavity
- Individual pilots and controls for each burner
- Heavy-duty cast grates
- 3⁄4" ground steel griddle plate
- 4" stainless steel stub riser
- 6" adjustable stainless steel legs for “S”, “C”, and “B” models
- Stainless steel cabinet base doors for “B” models
- Universal rack guides, one removable shelf (cabinet base)
- One year limited parts and labor warranty
Vulcan V2BG4TC Specifications
- DESCRIPTION : 2-Burners / 24" T-Stat Griddle / Convection Oven Base
- TOTAL INPUT BTU / HR: 162,000
- SHIPPING WEIGHT LBS / KG : 726 / 330
- Weight: 726 lbs
- Width: 36"
- Height: 36"
- Depth: 36.75"
- Exterior Finish: stainless steel front & sides
- Top: (2) open burners, (1) 24" griddle with thermostats
- Plate thickness: .750" = 3/4"
- Base: (1) convection oven
From The Manufacturer
V Series Heavy Duty Range, gas, 36", (2) 35,000 BTU open burners, (1) 24" griddle, thermostatic controls, convection oven, stainless steel front, front top ledge, sides, base, burner box & stub back, 6" adjustable legs, 162,000 BTU, CSA Flame, CSA Star, NSF
Images are for reference. Color, configuration, dimensions and what's included vary by model. See the spec sheet to confirm the exact details.
