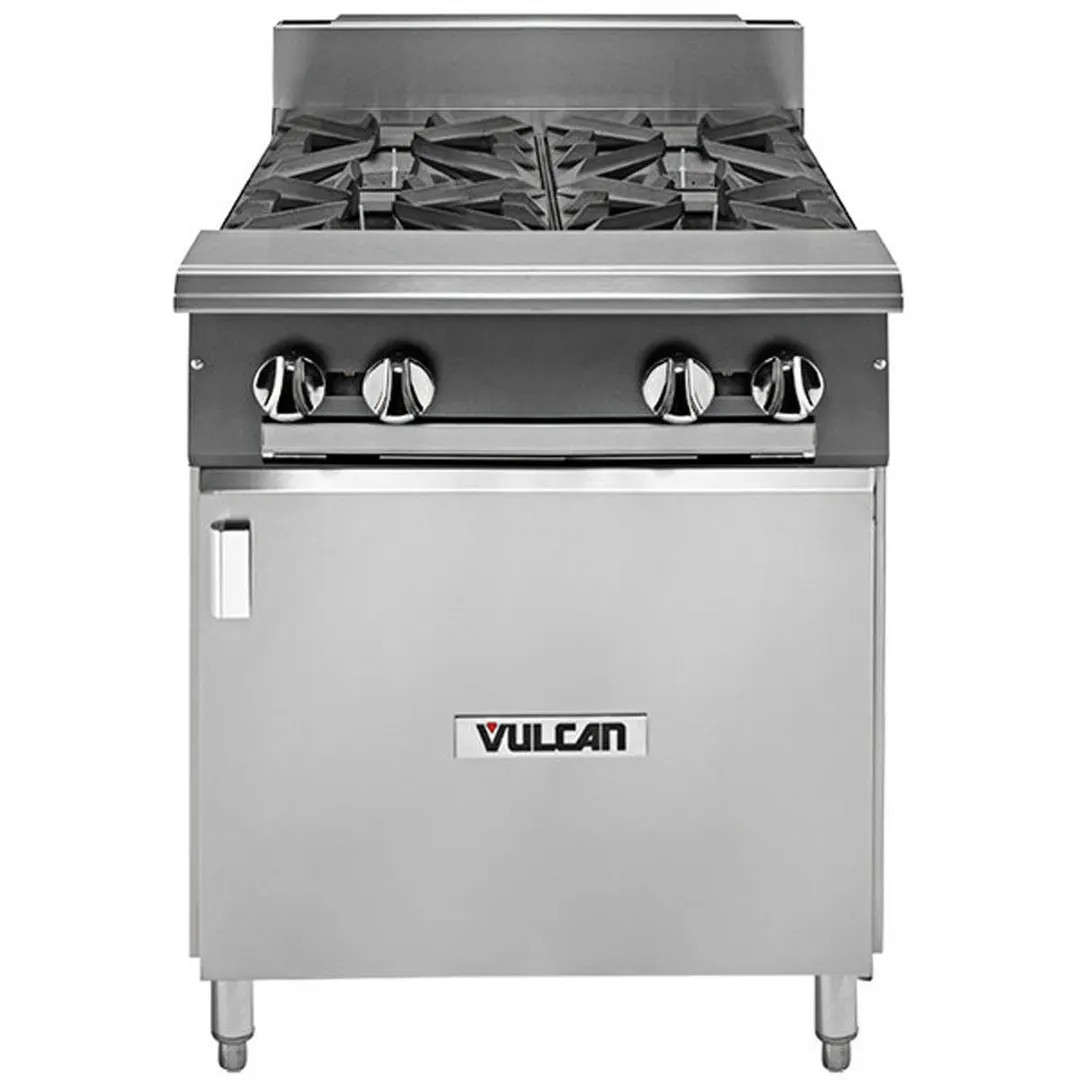

The Vulcan V4B24B V Series Heavy Duty Gas Range
Why Use Vulcan Ranges?
Versatile and dependable, Vulcan's commercial ranges are built for operations of all sizes. Innovative features help you improve productivity and deliver the high-quality, consistent professional results that keep guests coming back for more. Perfect for steady high heat continuous grilling and searing maximizing production of the footprint Solid 1⁄2" polished steel plate that withstands high temperatures, but still easy to clean. Sheds excessive grease in a trough on 3-sides
What Sets Vulcan Ranges Apart?
The name you trust and the 150 year heritage to back it. Vulcan's line of best in class ranges offers tailored configurations to fit your unique operation. Durable construction and customer-backed features lower overall cost of ownership and provide structural integrity for years of reliable use.Create your perfect workstation with Vulcan's customizable options. Choose from over 300 range configurations in both gas and electric, medium and heavy duty.
Durability and Modularity
The V Series provides modularity from top to bottom and side to side,
allowing for flexibility in your menu—today and tomorrow. Because of its
unique design, the V Series enables you to bring artistry to the front of
the house, while maintaining the durability and reliability you’ve come to
expect from Vulcan.
With V Series ranges, it’s easy to create the line-up you are looking for
or to redesign your kitchen—and your menu—after the initial installation.
Top sections of the same size, including open burners, hot tops, French
tops, charbroilers and griddles, are interchangeable. The same goes for
like-sized bases, from refrigerated bases and cabinets to standard,
convection, and finishing ovens. You have the freedom to create your
perfect work station.
Vulcan V4B24B Features
- Stainless steel front, front top ledge, burner box, sides, base, and stub back
- 1 1⁄4" diameter front gas manifold with 1 1⁄4" rear gas connection (capped)
- 35,000 BTU/hr. open top burners with lift off heads
- Individual pilots and controls for each burner
- Heavy-duty cast grates
- 4" stainless steel stub riser
- 6" adjustable stainless steel legs for “B” models (no legs for modular model)
- Stainless steel cabinet base doors
- Universal rack guides, with one removable shelf (cabinet base)
- V4B24B: 4-Burners / Cabinet Base
- One year limited parts and labor warranty
Vulcan V4B24B Specification
24" wide heavy duty gas range, Vulcan Model No. V4B24 (modular) and V4B24B (cabinet base) or V4BU24 (modular) and V4BU24B (cabinet base). Stainless steel front, plate ledge, front top ledge with pull-out condiment rails, sides, base, stub back and 6" adjustable legs. 11⁄4" diameter front gas manifold and 11⁄4" rear gas connection, capped. Heavy cast aeration bowls with removable cast top grates. Front grate: 111⁄2" x 111⁄2", rear grate: 111⁄2" x 14". Four 35,000 BTU/hr. heavy cast, two-piece open burners with individual pilots and controls for each burner. Total input 140,000 BTU/hr.
