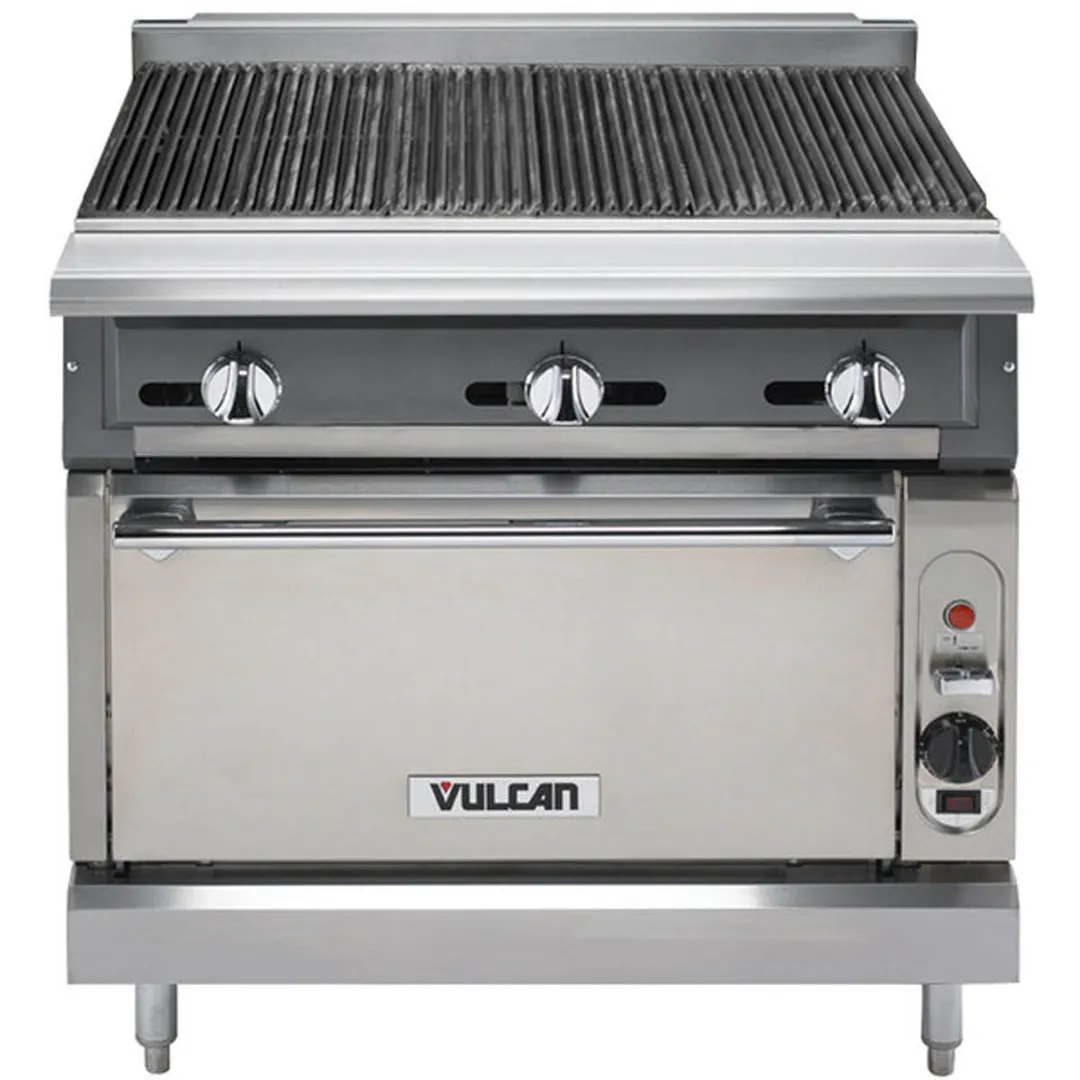

Vulcan VCBB36C 36" Gas Heavy Duty Range
Vulcan VCBB36C Standard Features
- Stainless steel front, front top ledge, burner box, sides, base, and stub back
- 11⁄4" diameter front gas manifold with 3⁄4" rear gas connection (capped)
- 99,000 BTU/hr. (6 burners)
- 50,000 BTU/hr. standard oven burner
- 32,000 BTU/hr. convection oven burner
- Porcelain oven cavity
- Individual pilots and controls for each burner
- Heavy-duty slant cast grates and char-radiants
- Stainless steel supercharger burner dividers
- 4" stainless steel stub riser
- 6" adjustable stainless steel legs for “S”, “C”, & “B” models (no legs for modular model)
- Stainless steel cabinet base doors
- One year limited parts and labor warranty
Vulcan VCBB36C Specifications
- DESCRIPTION : 36" Charbroiler / Convection Oven Base
- TOTAL INPUT BTU / HR: 131,000
- SHIPPING WEIGHT LBS / KG : 763 / 346
- Weight: 763 lbs
- Width: 36"
- Height: 36"
- Depth: 36.75"
- Exterior Finish: stainless steel front & sides
- Top: (1) charbroiler
- Base: (1) convection oven
From The Manufacturer
V Series Heavy Duty Range, gas, 36", charbroiler, cast iron grates & radiants, convection oven, stainless steel front, front top ledge, side, base, burner box & stub back, 6" adjustable legs, 131,000 BTU, CSA, NSF
Images are for reference. Color, configuration, dimensions and what's included vary by model. See the spec sheet to confirm the exact details.
