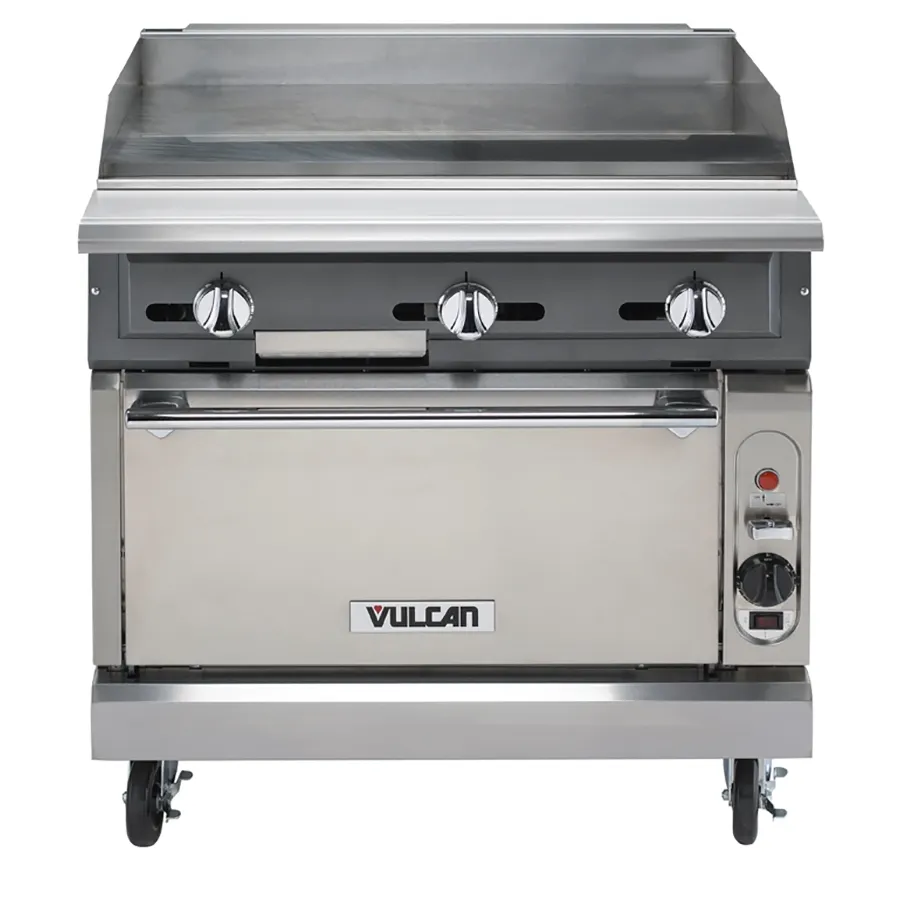

Vulcan VGMT36C 36" Gas Heavy Duty Range
Vulcan VGMT36C Standard Features
- Stainless steel front, front top ledge, burner box, sides, base, and stub back
- 11⁄4" diameter front gas manifold with 11⁄4" rear gas connection (capped)
- 30,000 BTU/hr. burners (3 each)
- 50,000 BTU/hr. standard oven burner
- 32,000 BTU/hr. convection oven burner
- Snap-action thermostats
- Temperature range from 150° - 450° F
- Porcelain oven cavity
- Individual pilots and controls for each burner
- 3⁄4" polished steel griddle plate
- 4" high side splash
- 4" stainless steel stub riser
- 6" adjustable stainless steel legs for “S”, “C”, and “B” models (no legs for modular model)
- Stainless steel cabinet base doors
- Universal rack guides, with one shelf (cabinet base)
- One year limited parts and labor warranty
Vulcan VGMT36C Specifications
- DESCRIPTION : 36" T-Stat Griddle / Convection Oven Base
- TOTAL INPUT BTU / HR: 122,000
- SHIPPING WEIGHT LBS / KG : 763 / 346
- Weight: 763 lbs
- Width: 36"
- Height: 36"
- Depth: 36.75"
- Exterior Finish: stainless steel front & sides
- Top: (1) griddle with thermostat
- Base: (1) convection oven
From The Manufacturer
V Series Heavy Duty Range, gas, 36", griddle, 3/4" thick polished steel plate, snap action thermostatic controls, convection oven, stainless steel front, top front ledge, sides, base, burner box & stub back, 6" adjustable legs, 122,000 BTU, CSA Flame, CSA Star, NSF
Images are for reference. Color, configuration, dimensions and what's included vary by model. See the spec sheet to confirm the exact details.
