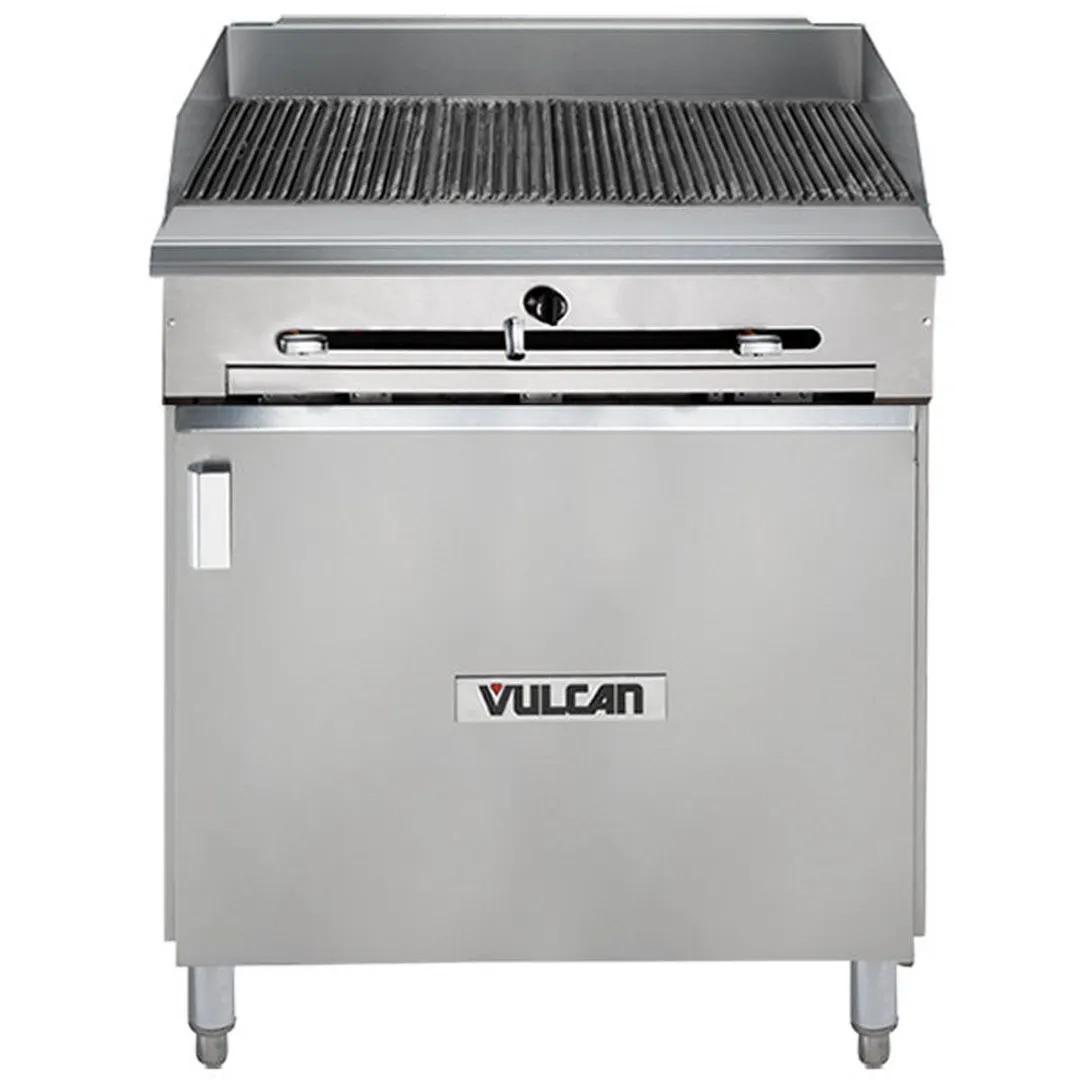

Vulcan HEAVY DUTY GAS RANGE
Standart Features:
- High efficiency gas infrared charbroiler, Vulcan Model No. VTC24 (modular) or VTC24B (cabinet base). Stainless steel front, plate ledge, front top ledge with pull-out condiment rails, sides, base, stub back and 6" adjustable legs. 11⁄4" diameter front gas manifold. Full width, stainless steel crumb tray. Heavy duty, steel infrared emitter panels. 11" x 25" stainless steel cooking grids. One 22,000 BTU/hr. patented infrared burner system for each cooking grid. Direct ignition piezo spark igniters. One high range heat control valve for each burner. Chrome burner knobs. 4" adjustable legs. 11⁄4" NPT rear gas connection. Total input 44,000 BTU/hr.
- Stainless steel front, front top ledge, burner box, sides, base, and stub back
- 11⁄4" diameter front gas manifold with 11⁄4" rear gas connection (capped)
- Heavy duty steel infrared emitter panels
- Energy efficient 22,000 BTU/hr., patented infrared burner system in each cooking zone
- Direct ignition piezo spark igniters
- One high range heat control valve for each burner
- Chrome burner control knobs
- 4" stainless steel stub riser
- 6" adjustable stainless steel legs for “B” models.
- Stainless steel cabinet base door
- Universal rack guides, with one removable shelf (cabinet base)
- One year limited parts and labor warranty
From The Manufacturer
Heavy Duty Range, gas, 24", modular, charbroiler, stainless steel grates & infrared burners, manual controls, stainless steel front, front top ledge, sides, base & stub back, 4" flanged feet, 44,000 BTU, CSA, NSF
Images are for reference. Color, configuration, dimensions and what's included vary by model. See the spec sheet to confirm the exact details.
