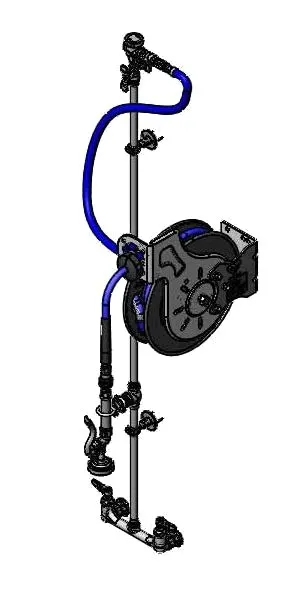

T&S Brass B-1433-01M-QDS Hose Reel Assembly, Open

General Info

8" wall mount mixing faucet with polished chrome plated brass body, compression cartridges with spring checks, lever handles, 1/2" NPT female inlets, 16" riser, control valve, 40" riser, wall brackets, continuous pressure vacuum breaker, 36" flexible water hose connector with stainless steel quick disconnect.

T&S Brass B-1433-01M-QDS Features

• All-in-one system with exposed piping and accessories
• 8” wall mount mixing faucet w/ polished chrome plated brass body
• Quarter-turn Eterna compression cartridges with spring checks to prevent cross flow of water
• Lever handles w/ color coded indexes
• 1/2" NPT female eccentric inlets with Ø 2" flanges
• Adjustable centers from 7 3/4” to 8 1/4”
• EasyInstall 16” and rigid 40” risers w/ control valve between risers
• (2) 2 3/8” wall brackets
• Continuous pressure vacuum breaker
• 36” flexible water hose connector with stainless steel quick disconnect
• 1.15 GPM spray valve w/ heat resistant blue handle and hold down ring
• Extended wand spray valve-interchangable with quick disconnect
• 3/8” x 30’ heavy-duty non-marking hose rated to 300 PSI
• Ratcheting system holds the length of hose until a slight tug to retract automatically
• Material: Polished chrome plated brass escutcheon, risers and spray valve body, control valve and vacuum breaker, chrome plated metal handles, and stainless steel enclosed reel.

T&S Brass B-1433-01M-QDS Specifications

• Pressure Min/Max : 20 - 125 psi
• Temperature Min/Max : 40 F - 140 F
• Flow Rate :1.15 GPM @ 60 psi
• Other Details : See spec. sheet
