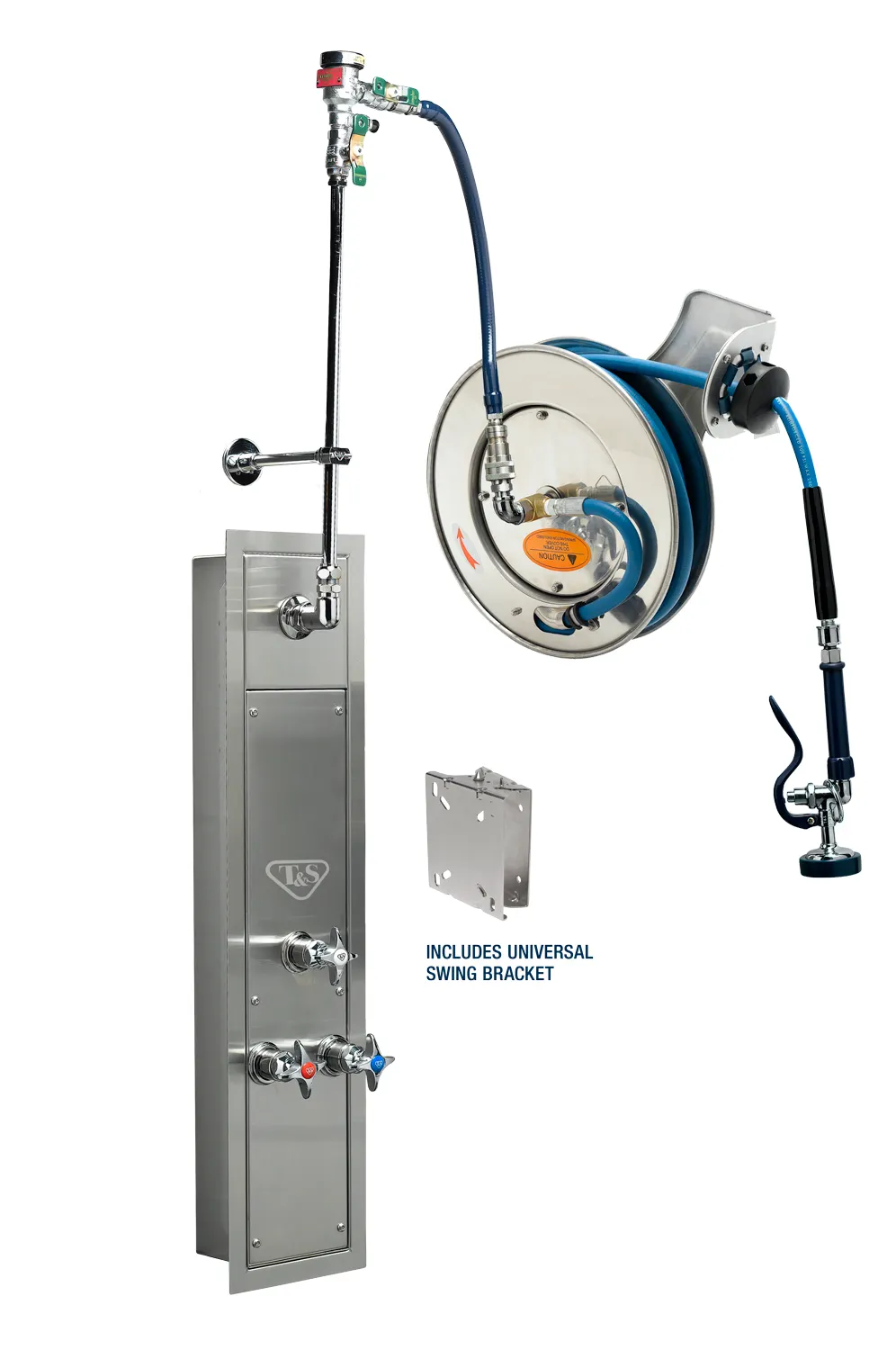

T&S Brass B-7132-U01WS8TC 50' Stainless Steel Open Hose Reel with Stainless Steel Surface Cabinet with Bottom Inlets

General Info

Surface mounted stainless steel hose reel cabinet containing 1/2" union inlets, 1/2" check valves, loose key stops, mixing valve with ceramic cartridges, shut-off control valve with ceramic cartridge, hose reel connector kit with 1/2" NPT elbow, 18" riser and vacuum breaker...

T&S Brass B-7132-U01WS8TC Features

• Surface mount stainless steel control cabinet
• 1/2” NPT female union inlets for top inlets
• 1/2” in-line check valves
• Loose key supply stops with tee handles and screws
• Mixing valve with quarter-turn Cerama cartridges w/ check valves
• Control valve with quarter-turn Cerama cartridge w/ check valve
• 4-arm handles w/ color-coded indexes
• 1/2" NPT inlet swivel elbow and flange
• EasyInstall 18" riser
• 6" wall bracket
• Continuous vacuum breaker
• 36" flexible water hose connector with stainless steel quick disconnect
• Open stainless steel reel with 3/8” NPT female inlet
• High flow blue spray valve with swivel
• 3/8” x 35 heavy-duty non-marking hose rated to 300 PSI
• Multi-fit bracket for wall, ceiling or under counter mounting
• EasyInstall universal stainless steel wall mount hose reel 100 swing bracket

T&S Brass B-7132-U01WS8TC Specifications

• Pressure : 20 - 125 psi
• Temperature : 40 F - 140 F
• Flow Rate : 4.0 GPM [15.1 L/min] @ 60 psi [4.14 bar]
• Other Details : See spec. sheet
