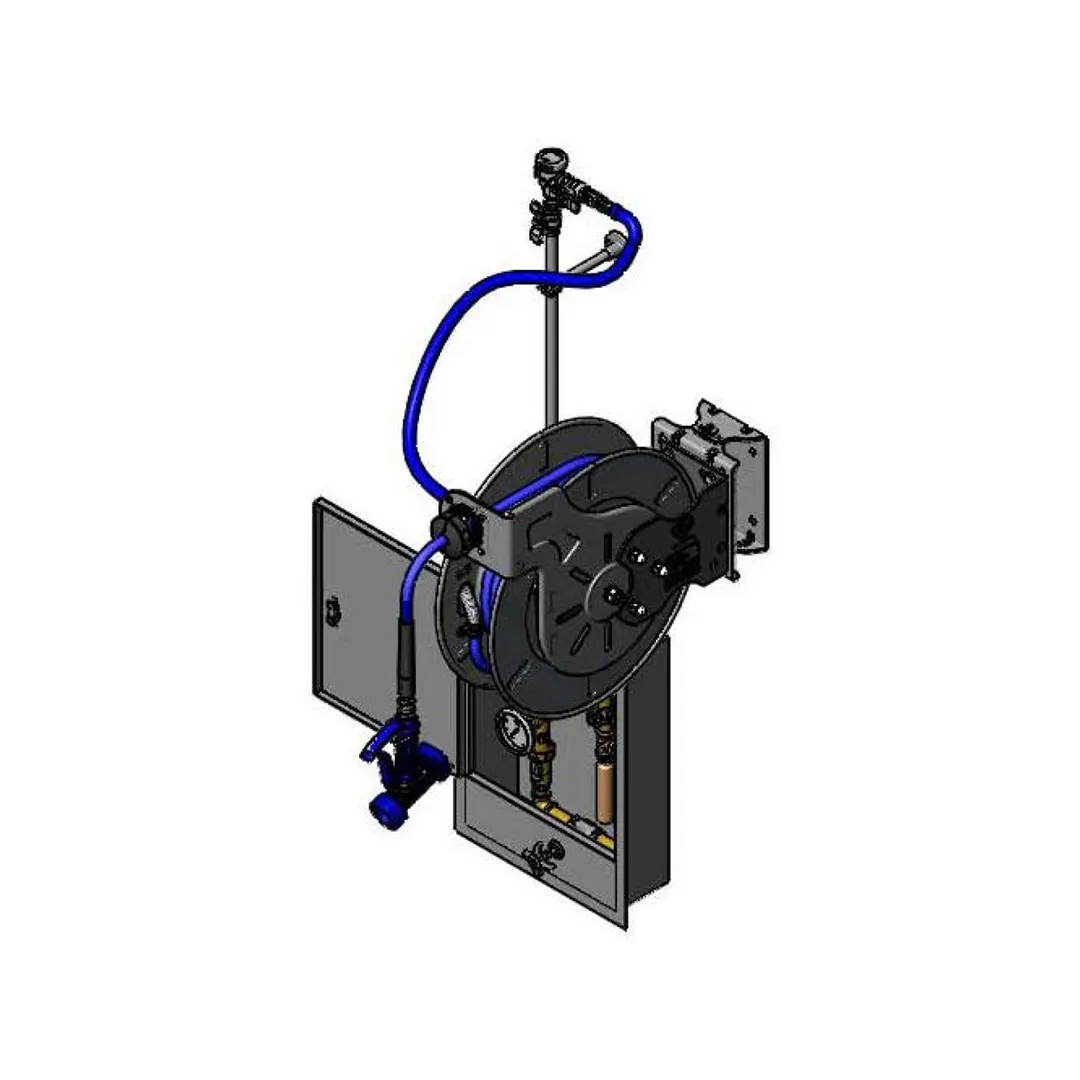

T&S Brass B-7142-U05WS5 Control Unit and Hose Reel Assembly
General Info
Hose reel control unit, stainless steel water control cabinet containing 1/2" union inlets and outlet, 1/2" check valves, loose key mixing valve with compression spindles, bi-metallic thermometer, dual check valve backflow preventer...
T&S Brass B-7142-U05WS5 Features
- Flush mount stainless steel control cabinet with locking latch contains water control system
- 1/2” NPT female union inlets (2) and outlet
- 1/2” in-line check valves
- Loose key mixing valve with compression spindles, tee handles and screws
- Bi-metallic thermometer with 3” dial face
- Dual check valve backflow preventer
- Shut-off valve with 4-arm handle operable from outside of closed cabinet
- Open stainless steel reel with 3/8” NPT female inlet
- High flow stainless steel water gun w/ blue rubber cover, front style trigger, swivel & 5/16" flow orifice
- 3/8” x 50’ heavy-duty non-marking hose rated to 300 PSI
- Ratcheting system holds the length of hose until a slight tug to retract automatically
T&S Brass B-7142-U05WS5 Specifications
- Pressure : 20 - 125 psi
- Temperature : 40 F - 140 F
- Flow Rate : 3.7 GPM @ 60 psi
- Other Details : See spec. sheet
From The Manufacturer
Hose Reel Control Unit, wall-mount open stainless steel reel with 3/8" x 50' heavy-duty non-marking hose, ratcheting system, high flow stainless steel front trigger water gun with swivel, multi-fit bracket, stainless steel wall mount swing bracket and adjustable hose bumper, wall-mounted stainless steel water control cabinet containing 1/2" union inlets and outlet, 1/2" check valves, loose key mixing valve with compression spindles, bi-metallic thermometer, dual check valve backflow preventer, shut-off valve and water hammer arrestor
