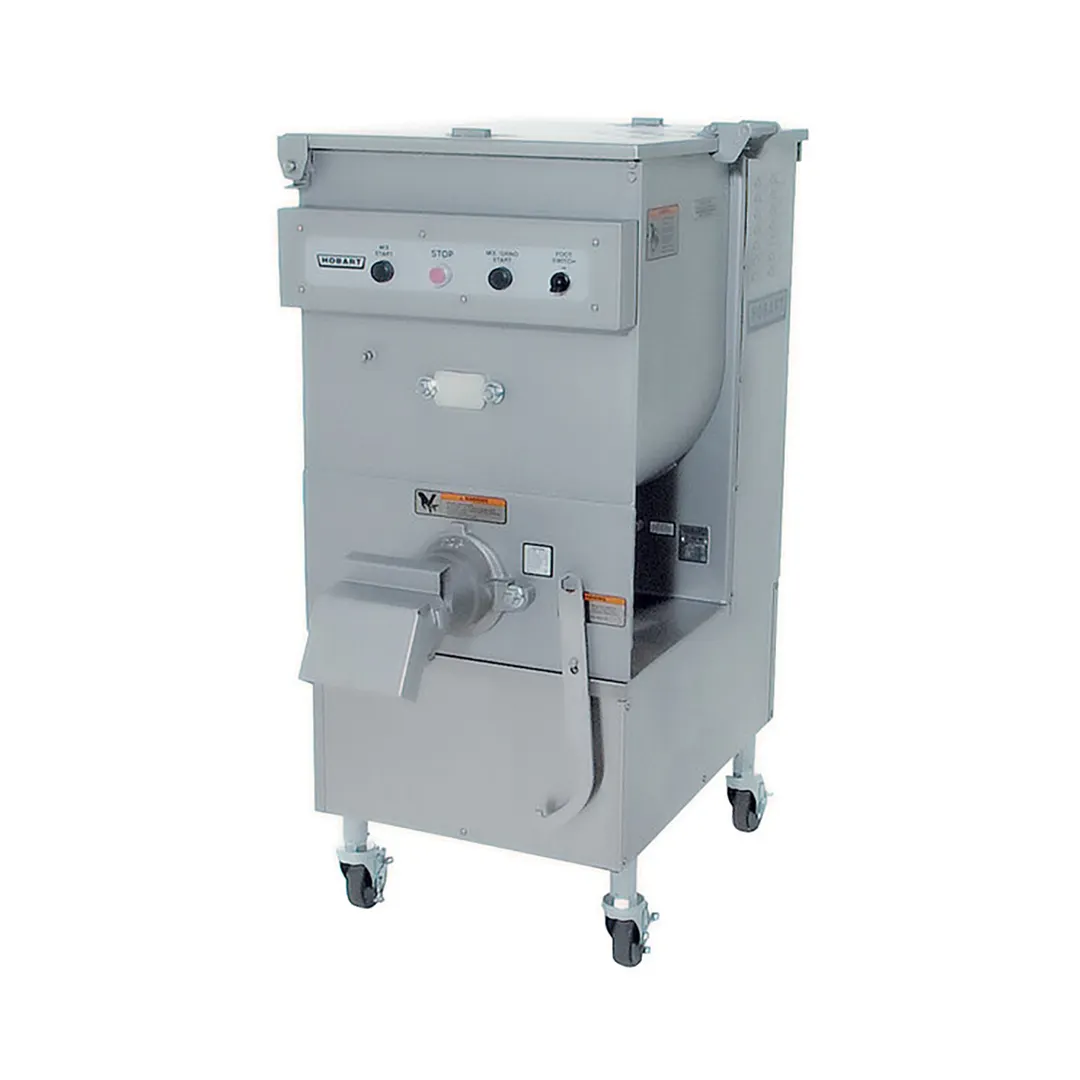

Hobart Floor Model Mixer Grinder, 140 lb Hopper Capacity, 7-1/2hp Grind Motor, 1hp Mix Motor
Standart Features
- 140 lb. hopper capacity, 55 to 60 lb. per minute output
- Exclusive WEDGE cylinder insures full rate feeding for the entire batch
- 7 1⁄2 H.P. grind motor (for mixed fresh and frozen applications)
- 1 H.P. mix motor
- Grinder hooper constructed of glass bead finished stainless steel
- Stainless steel panels enclose the base assembly and motors; mixing arm and conveyor screw are tinned, end ring and cylinder are stainless steel
- Up-front, easy-to-reach controls
- Easily converted hopper lid for right or left side hopper loading
- Pneumatic foot control option
Specifications
- GENERAL: The standard machine has a 7 1⁄2 H.P. grind motor, 1 H.P. mix motor, non-adjustable stationary legs, and an 8-foot length cord and plug power connection. Available voltage is 208/60/3.
- ELECTRICAL CONTROLS: Electrical controls consist of waterproof start and stop switches, magnetic contactors, dual motor overload protection and foot switch operation capability. An electrical interlock switch is provided. Whenever the hopper lid is opened, power to the motors is shut off. The hopper lid must be in its proper operating position before the grinder motors can be started.
- CAPACITY: The 4246 Mixer-Grinder hopper has meat capacity up to 140 pounds depending on the type of product. The grinding rate is 55 to 60 pounds of fresh boneless beef per minute, first or second cutting through a 1⁄8" plate; 60 to 65 pounds of pork per minute second cutting through a 3⁄16" plate. The 4246 is for fresh or frozen meat tempered to 26°F or higher and can be in flake or stick form.
- GRINDING END: The mixer-grinder is equipped with a “Wedge cylinder” grinding end. This grinding end is sized for #32 knives and plates (not included but optionally available).
- STAY-SHARP KNIFE & PLATES: The Hobart Stay-Sharp knife & plates are made from an alloy steel that holds its edge longer than standard carbon steel. Stay-Sharp plates also can be resharpened many more times than regular plates. These two features allow a substantial lifetime cost benefit with the Hobart StaySharp plates.
- FEEDING SYSTEM: The 4246 is powered by two separate drive systems. A 1 H.P. motor drives the heavy-duty steel mixing arm. The arm rotates at 23 rpm and can easily be removed from the hopper for cleaning. The conveyor screw extends the full length of the hopper and the cylinder. The screw rotates at a speed of 194 rpm and it is driven by a 7 1⁄2 H.P. motor. By depressing the MIX/GRIND START button both the mixing arm and the screw are operated. Both mixing and grinding are stopped when the STOP switch is depressed.
- CLEANING: The mixing arm, conveyor screw, cylinder, and conveyor screw drive-shaft seal are removable from the grinder for cleaning.
- FINISH: The grinder consists of glass bead finished stainless steel hopper; stainless steel panels to enclose the base assembly and motors. The mixing arm and conveyor screw are tinned. The end ring and cylinder are stainless steel. The legs are nickel chrome plated.
From The Manufacturer
Mixer Grinder, 140 lbs. hopper capacity, 55-60 lb/min capacity, exclusive wedge cylinder design, interlock on hopper lid, hopper lid easily converts for right or left side loading, easy to reach up front controls, 8’ cord & plug, stainless steel hopper, cylinder, adjusting ring, & external skins; tin plated conveyor screw & mix arm, Removable hopper conveyor seal for easy cleaning, UL, NSF
