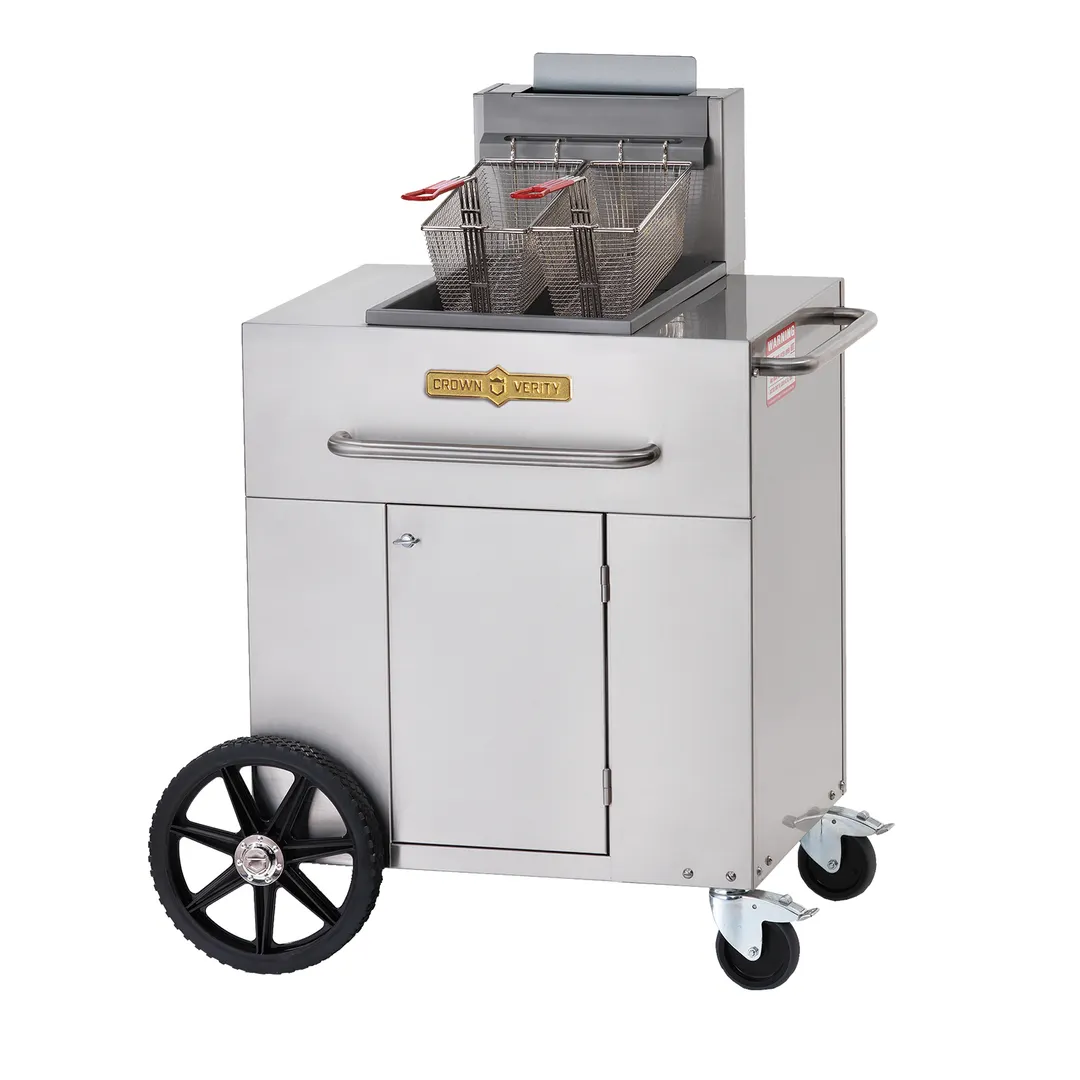

Crown Verity CV-PF-1 Single Tank Fryer

Usage And Benefits

Single Tank Fryer is designed to cook high volumes of product in a short period of time. This fryer is for outdoor use only. With large 14" wheels it is portable and easy to move making it ideal for caterers, party rentals, and special events.

Crown Verity CV-PF-1 Features

Stainless steel cabinet, fry tanks(s
Two 14” wheels and two total lock casters
Two fry baskets per tank with plastic coated handles
Three heat exchanger tubes per tank positioned for easy cleaning
Tank holder(s) to hold 30 Lb. vertical propane tank(s)
Stainless steel tank cover(s)
Two stage regulator(s) and hose(s) on LP models
Ships fully assembled on a skid
1.25” full port ball type drain valve with drain pipe extension
c ETL us, Conforms to ANSI Z83.11/CSA 1.8

Crown Verity CV-PF-1 Features

90,000 BTU/hour input per tank
High limit shut off safely shuts off gas flow if fryer temperature exceeds high limit
Millivolt thermostat control adjusts from 200 - 400 0F
Combination gas shut-off valve and pilot ignition system
• 1 year parts and labor limited warranty. Stainless steel fry tank will be warranted for 1 year. If tank is found to have a leak and is verified by an authorized service agency, the fry tank only will be replaced. Replacement fryer tank will be warranted for the balance of the original warranty

Crown Verity CV-PF-1 Specifications

Thermostat :2000 to 4000 F
BTUH :90,000
Actual Weight (lbs):190
Shipping Weight (lbs):240
Capacity :35 - 40 Lb. per tank
Cabinet Length :29.75”
Overall Dimensions :38” W x 30.5” D x 48.75” H

From The Manufacturer

Outdoor Fryer, portable, LP gas, single tank, 35-40 lbs. fat capacity, 90,000 BTU, cETLus

Images show the product series. Color, configuration, included items and accessories vary by model. See the spec sheet for this model.

Manufacturer	Crown Verity
Model Number	CV-PF-1
Weight	240 lbs
Width	38″
Depth	30.5″
Height	48.75″
Installation Type	mobile (outdoor)
Power Type	gas
Gas Type	liquid propane
Tank & Pot Type	full pot
Number of Fry Pots	1
Filter	no filter
Basket Lifts	no basket lifts
Fry Pot Construction	stainless steel
Certifications	cETLus
Total BTU	90.000
Fat Capacity (lbs)	35-40
