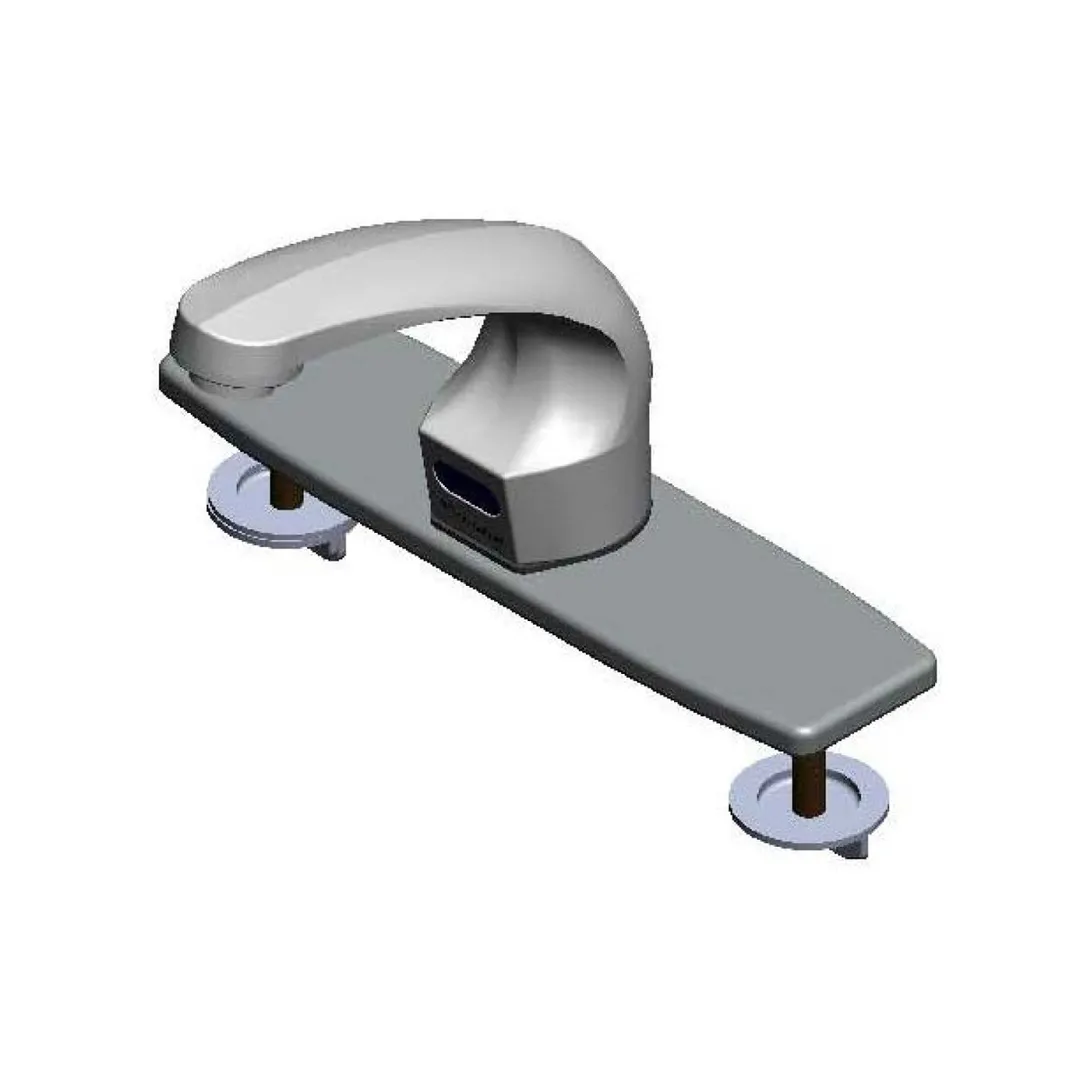

T&S Brass EC-3102-8DP Electronic Sensor Faucet
General Info
Single hole deck mount electronic sensor faucet with polished chrome plated brass body, 8" centerline deck plate and integral spout, 2.2 GPM vandal resistant aerator, AC/DC control module with internal flow control setting switches, temperature control mixing valve with integral check valves and 18" flexible stainless steel supply hoses with 3/8" compression connections.
T&S Brass EC-3102-8DP Features
- Single hole deck mount w/ polished chrome plated brass body w/ cast spout
- 2.2 GPM vandal resistant aerator, Series 8 (B-0199-08)
- 8" c/c deck plate w/ gasket and hardware
- Water resistant control module w/ internal flow control switches for adjusting auto time out & shut off delay settings
- Optional auto flush feature flows water for 30 seconds after every 12 inactive hours
- Optional metering mode
- Plug in AC tranformer or (4) AA batteries (DC) power options
- Mechanical temperature mixing valve w/ integral check valves
- 18" flexible stainless steel supply hoses w/ 3/8" compression connections
- Low battery LED indicator light
- Material: Polished chrome plated brass body
T&S Brass EC-3102-8DP Specifications
- Pressure : 20 - 125 psi
- Temperature : 40 F - 140 F
- Flow Rate : 2.2 GPM [8.3 L/min] @ 60 psi [4.14 bar]
- Water Consumption :
- @10 sec = .37 gal [1.40 L]
- @15 sec = .55 gal [2.08 L]
- Other Details : See spec. sheet
From The Manufacturer
ChekPoint™ Electronic Faucet, deck mount, single hole with 8" deck plate, 4-7/8" spout with 2.2 GPM vandal resistant aerator, AC/DC control module with internal flow control, mixing valve with integral check valves, flexible stainless steel supply hoses, low lead, ADA Compliant
