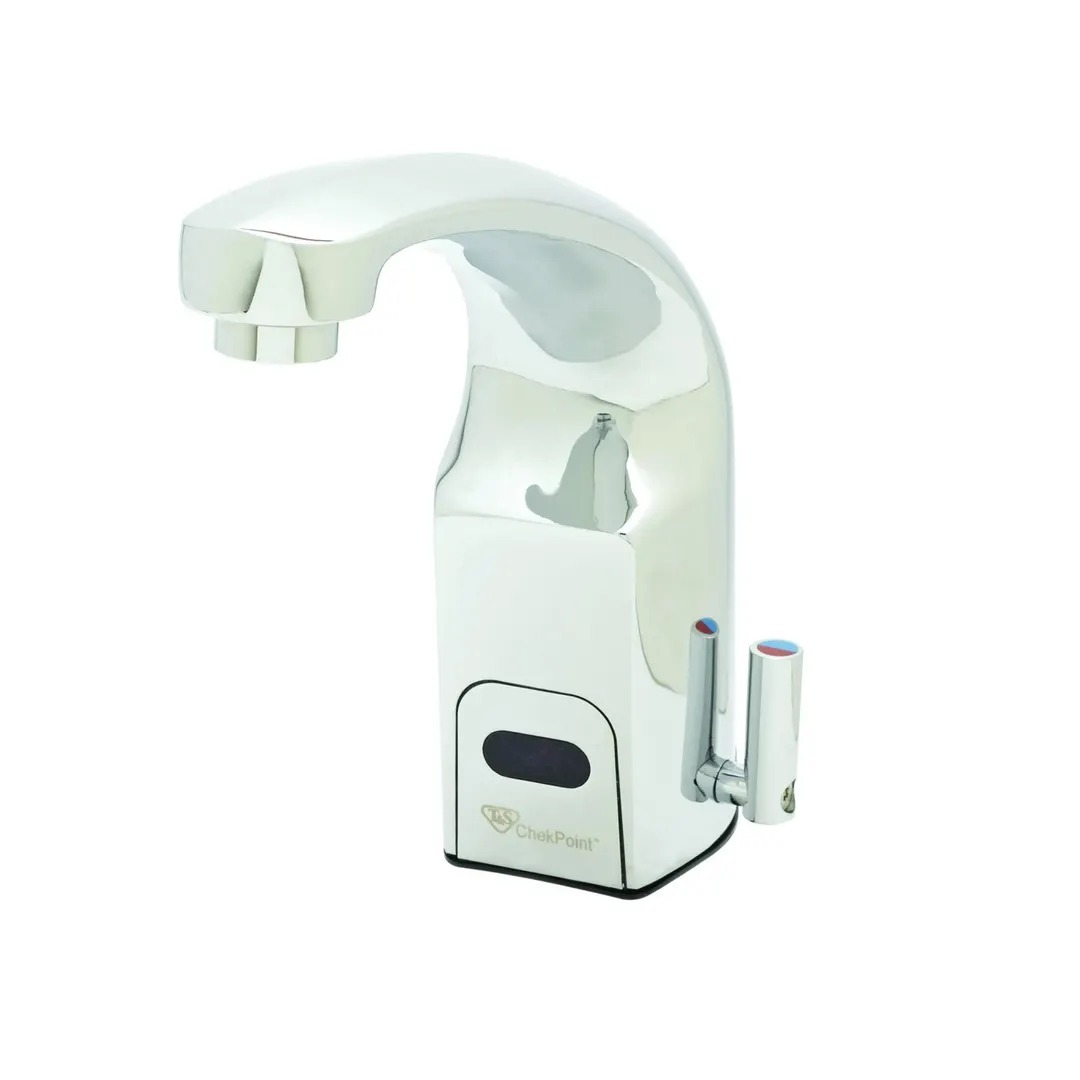

T&S Brass EC-3132 Electronic Sensor Faucet
General Info
Single hole deck mount electronic sensor faucet with polished chrome plated brass body and integral spout, 2.2 GPM vandal resistant aerator, above deck electronic AC/DC control module with internal flow control setting switches, above deck temperature mixing handle, anti-rotation pin, 19" flexible stainless steel supply hoses, and check valve adapters with 3/8" compression connections.
T&S Brass EC-3132 Features
- Single hole deck mount faucet with polished chrome plated brass body and integral spout
- 2.2 GPM vandal resistant aerator, Series 8 (B-0199-08)
- Above deck electronic control module w/ internal flow control switches for adjusting auto time out & shut off delay settings
- Optional auto flush feature flows water for 30 seconds after every 12 inactive hours
- Plug in AC transformer or 6 VDC lithium battery (DC) power options
- Above deck temperature mixing handle
- Optional body plug replaces handle when temperature is preset
- Anti-rotation pin
- 19” flexible stainless steel supply hoses with filter washers
- Check valve adapters with 3/8" compression connections
- Low battery LED indicator light
- Material: Polished chrome plated brass body
T&S Brass EC-3132 Specifications
- Pressure : 20 - 125 psi
- Temperature : 40 F - 140 F
- Flow Rate : 2.2 GPM @ 60 psi
- Water Consumption :
- @ 10 sec = .37 gal
- @ 15 sec = .55 gal
- Other Details : See spec. sheet
From The Manufacturer
ChekPoint™ Above Deck Electronic Faucet, deck mount, single hole, cast spout, 2.2 gpm vandal resistant aerator, point-of-use temperature control, 3/8" compression inlets, battery or AC adapter powered (includes optional 100-240 VAC adapter), chrome-plated brass, stainless steel flexible supply lines, ADA Compliant
