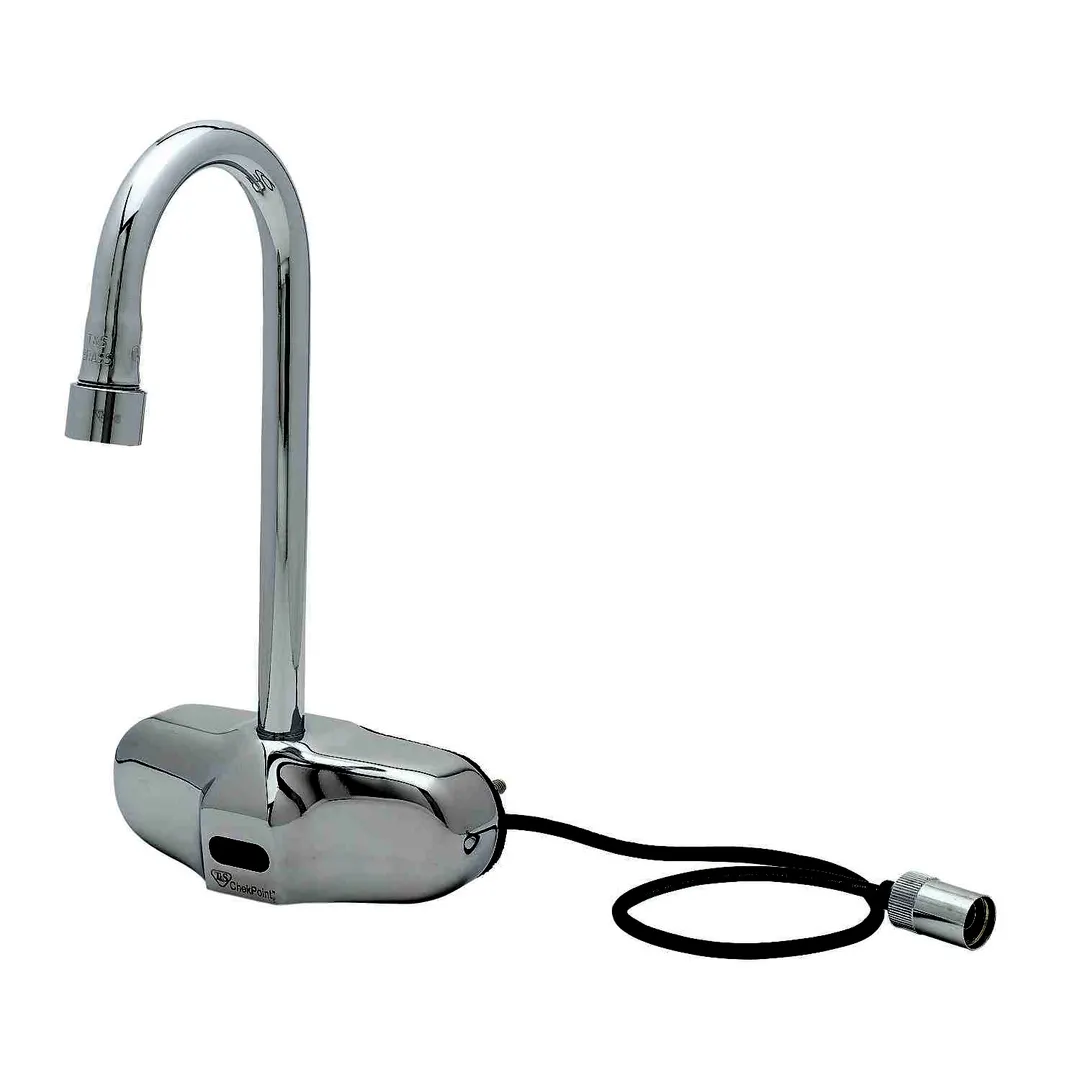

T&S Brass EC-3105-167X Electronic Sensor Faucet
General Info
4" wall mount electronic sensor faucet with polished chrome plated brass body, 4 1/8" rigid gooseneck, 2.2 GPM vandal resistant aerator, AC/DC control module with internal flow control setting switches, temperature control mixing valve with integral check valves and 18" flexible stainless steel supply hoses with 3/8" compression connections.
T&S Brass EC-3105-167X Features
- 4" c/c wall mount faucet w/ polished chrome plated brass body
- 4 1/8" rigid gooseneck
- 2.2 GPM vandal resistant aerator, Series 6 (B-0199-06)
- Water resistant control module w/ internal flow control switches for adjusting auto time out & shut off delay settings
- Optional auto flush feature flows water for 30 seconds after every 12 inactive hours
- Optional metering mode
- Plug in AC tranformer or (4) AA batteries (DC) power options
- Mechanical temperature mixing valve with integral check valves
- Two flexible stainless steel supply hoses w/ 3/8" compression connections
- Low battery LED indicator light
- Material: Polished chrome plated brass body and tubular spout
T&S Brass EC-3105-167X Specifications
- Pressure : 20 - 125 psi
- Temperature : 40 F - 140 F
- Flow Rate : 2.2 GPM [8.3 L/min] @ 60 psi [4.14 bar]
- Water Consumption :
- @10 sec = .37 gal [1.40 L]
- @15 sec = .55 gal [2.08 L]
- Other Details : See spec. sheet
From The Manufacturer
ChekPoint™ Electronic Faucet, wall mount, 4" centers, 4 1/8" rigid gooseneck, 2.2 GPM vandal resistant aerator, AC/DC control module with internal flow control, temperature control mixing valve with integral check valves, 18" flexible stainless steel supply hoses with 3/8" compression connections, chrome plated brass, low lead, cCSAus, cULus, ADA Compliant
Images show the product series. Color, configuration, included items and accessories vary by model. See the spec sheet for this model.
