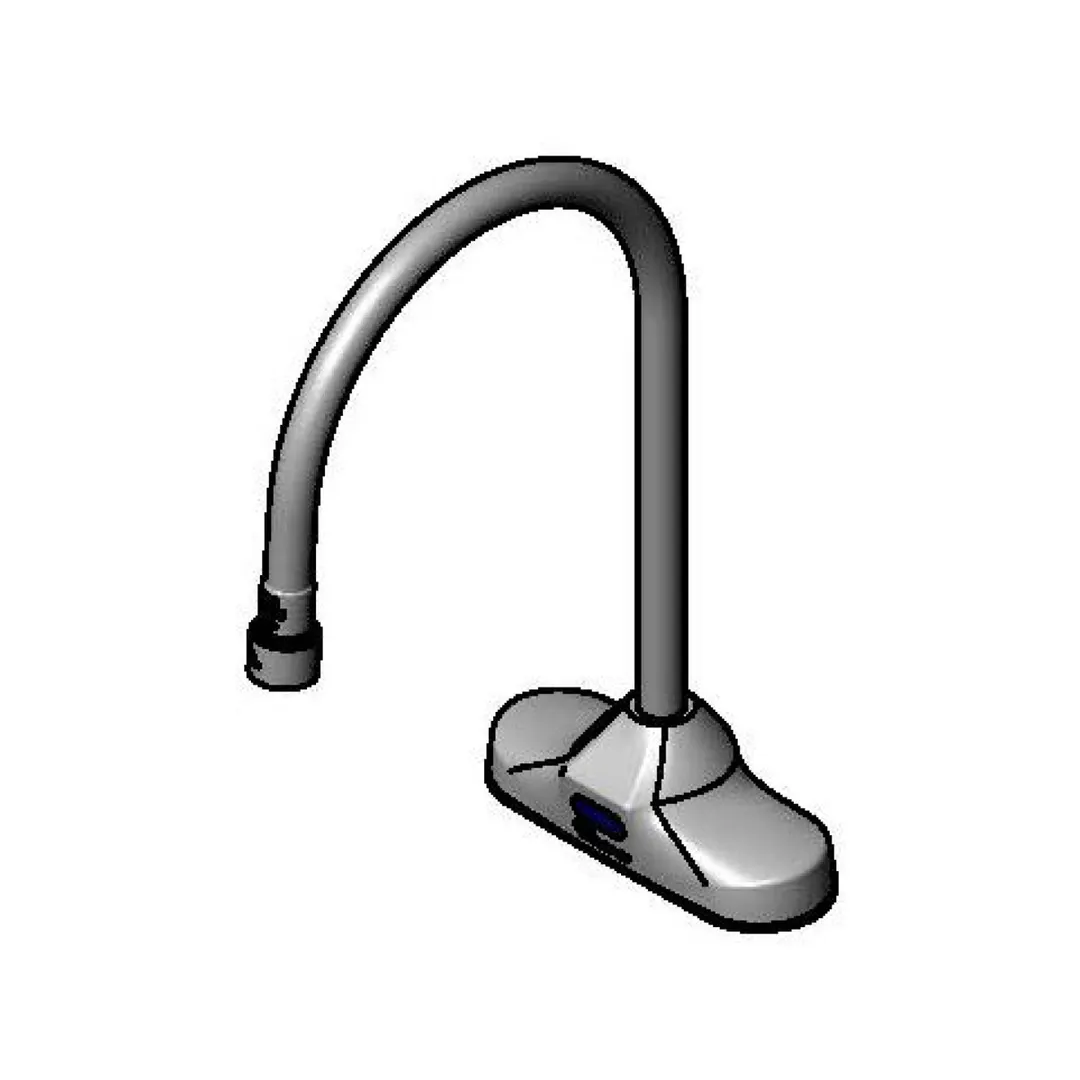

T&S Brass EC-3107-7XF1THG Electronic Sensor Faucet
General Info
4" deck mount electronic sensor faucet with polished chrome plated brass body and 7 11/16" rigid gooseneck, 1.0 GPM vandal resistant aerator, AC/DC control module with internal flow control setting switches, temperature control mixing valve with check valves, hydro-generator power supply and 18" flexible stainless steel supply hoses with 3/8" compression connections.
T&S Brass EC-3107-7XF1THG Features
- 4" c/c deck mount faucet w/ polished chrome plated brass body
- 7 11/16" rigid gooseneck
- 1.0 GPM vandal resistant aerator, Series 6 (B-0199-06-F10)
- Water resistant control module w/ internal flow control switches for adjusting auto time out & shut off delay settings
- Optional auto flush feature flows water for 30 seconds after every 12 inactive hours
- Optional metering mode
- Hydro-generator power supply
- Plug in AC tranformer or (4) AA batteries (DC) power options
- Thermostatic temperature control mixing valve w/ check valves
- 18” flexible stainless steel supply hoses with 3/8" compression connections
- Material: Polished chrome plated brass body & gooseneck
T&S Brass EC-3107-7XF1THG Specifications
- Pressure : 20 - 125 psi
- Temperature : 40 F - 140 F
- Flow Rate : 1.0 GPM [3.8 L/min] @ 60 psi [4.14 bar]
- Water Consumption :
- @10 sec = .17 gal [.63 L]
- @15 sec = .25 gal [.95 L]
- Other Details : See spec. sheet
From The Manufacturer
ChekPoint™ Electronic Faucet, deck mount, 4" centers, 7-11/16" rigid gooseneck spout, 1.0 GPM vandal resistant aerator, hydro-generator power supply, AC/DC control module with internal flow control, thermostatic temperature control mixing valve with integral check valves, chrome-plated brass, flexible stainless steel supply hoses, low-lead, ADA Compliant, cCSAus, cULus
